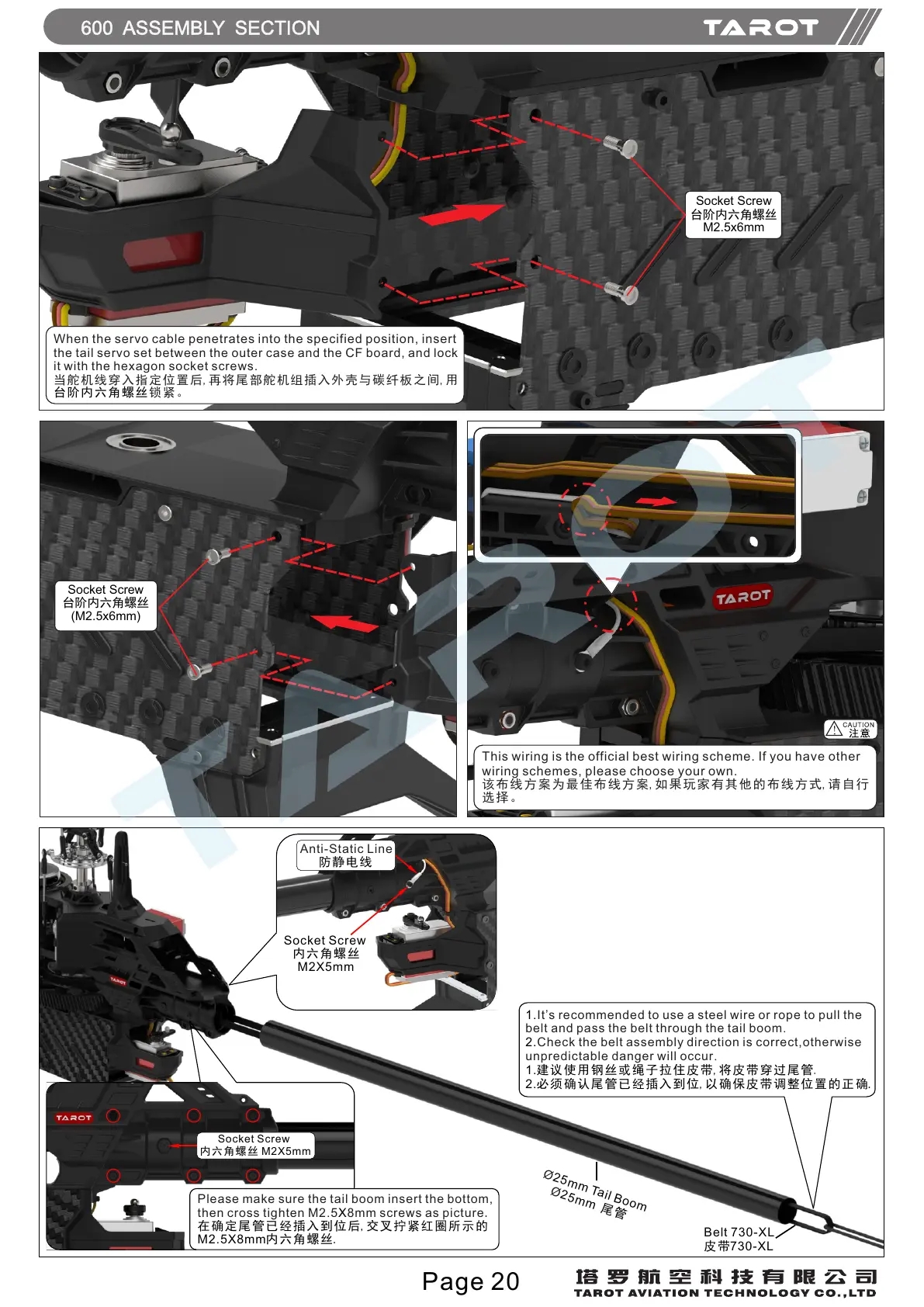

Tarot 600 - TAIL SERVO FIXATION AND TAIL BOOM BELT INSTALLATION

Socket Screw
台阶内六角螺丝
(M2.5x6mm)
600 ASSEMBLY SECTION
This wiring is the official best wiring scheme. If you have other
wiring schemes, please choose your own.
该布 线方案为最佳 布线方案,如果玩 家有其他的布 线方式,请自行
选择 。
Socket Screw
台阶内六角螺丝
M2.5x6mm
When the servo cable penetrates into the specified position, insert
the tail servo set between the outer case and the CF board, and lock
it with the hexagon socket screws.
当舵 机线穿入 指定位置 后,再将尾部 舵机组插 入外壳与 碳纤板之 间,用
锁紧 。台阶 内六角螺 丝
Anti-Static Line
防静 电线
Please make sure the tail boom insert the bottom,
then cross tighten M2.5 8mm screws as pictureΧ .
在确 定尾管已 经插入到 位后,交叉拧 紧红圈所 示的
M2.5Χ8mm内六角螺 丝.
1.It’s recommended to use a steel wire or rope to pull the
belt and pass the belt through the tail boom.
Check the belt assembly direction is correct,otherwise2.
unpredictable danger will occur.
1.建议使 用钢丝或 绳子拉住 皮带,将皮带 穿 过尾管.
2.必须确 认尾管已 经插入到 位,以确保皮 带 调整位置 的正确.
Socket Screw
内六 角螺丝
Μ2Χ5mm
Socket Screw
内六角 螺丝 Μ2Χ5mm
Belt 730-XL
皮带730-XL
Ø
25m
m Ta
i
l B
oo
m
25
mm
尾
管
Ø
