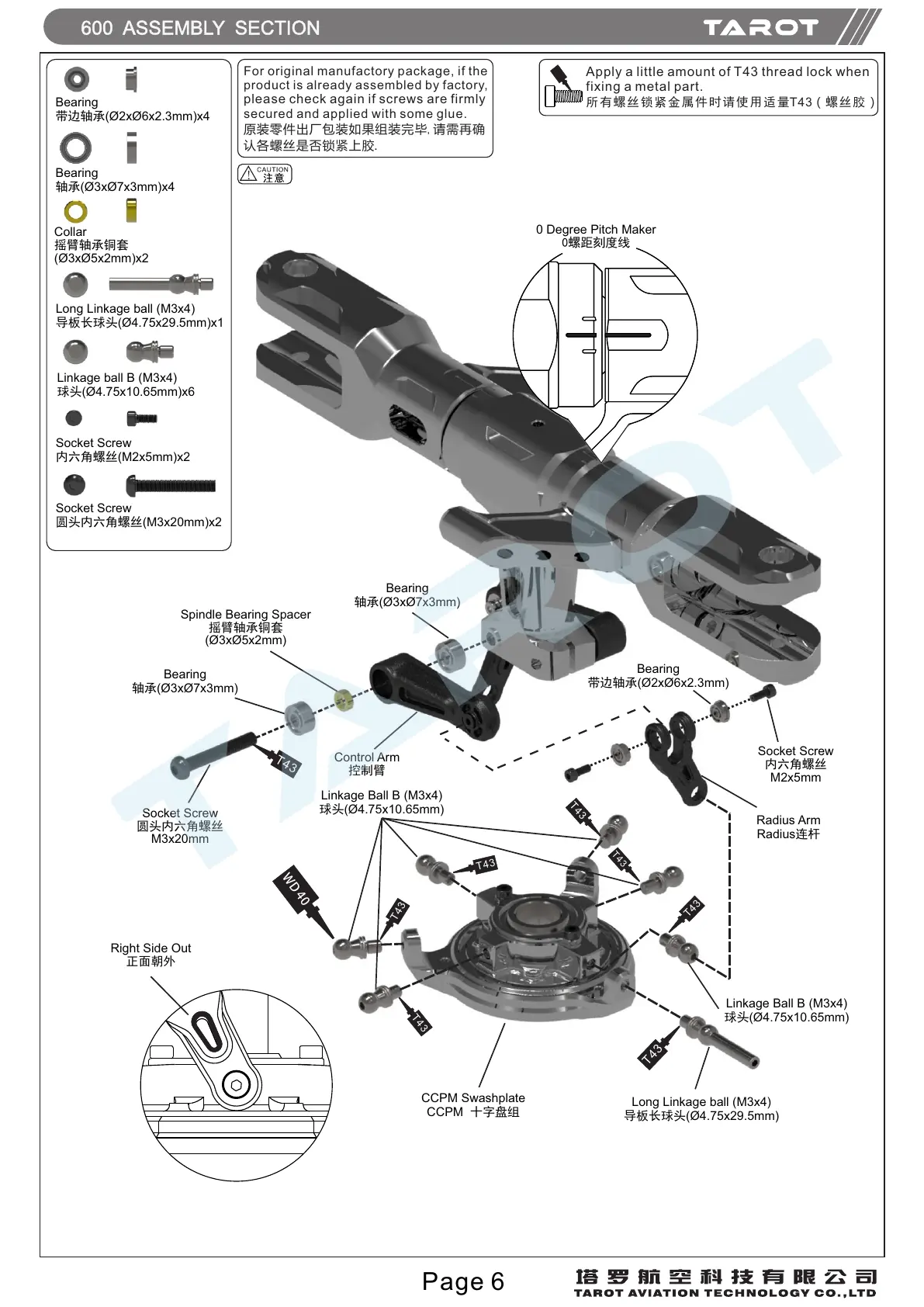

Tarot 600 - CONTROL ARM AND SWASHPLATE ASSEMBLY; 0 DEGREE PITCH MAKER

600 ASSEMBLY SECTION
For original manufactory package, if the
product is already assembled by factory,
please check again if screws are firmly
secured and applied with some glue.
原装零件出厂包装如果组装完毕,请需再确
认各螺丝是否锁紧上胶.
Apply a little amount of T43 thread lock when
fixing a metal part.
所有 螺丝锁紧 金属件时 请使用适 量T43（螺 丝胶）
T
4
3
Socket Screw
圆头内六角螺丝
M3x20mm
Linkage Ball B (M3x4)
球头(Ø4.75x10.65mm)
T43
Long Linkage ball (M3x4)
导板长球头(Ø4.75x29.5mm)
Linkage Ball B (M3x4)
球头(Ø4.75x10.65mm)
Control Arm
控制臂
Radius Arm
Radius连杆
CCPM Swashplate
CCPM 十字盘组
Right Side Out
正面朝外
Bearing
带边轴承(Ø2xØ6x2.3mm)
0 Degree Pitch Maker
0螺距刻度线
Linkage ball B (M3x4)
球头(Ø4.75x10.65mm)x6
Socket Screw
内六角螺丝(M2x5mm)x2
Bearing
带边轴承(Ø2xØ6x2.3mm)x4
Collar
摇臂轴承铜套
(Ø3xØ5x2mm)x2
Bearing
轴承(Ø3xØ7x3mm)x4
Socket Screw
圆头内六角螺丝(M3x20mm)x2
Long Linkage ball (M3x4)
导板长球头(Ø4.75x29.5mm)x1
Spindle Bearing Spacer
摇臂轴承铜套
(Ø3xØ5x2mm)
Bearing
轴承(Ø3xØ7x3mm)
Bearing
轴承(Ø3xØ7x3mm)
Socket Screw
内六角螺丝
M2x5mm
Page 6
