Socket Self Tapping Screw
内六 角自攻螺 丝
M2Χ8mm
Please insert the signal line of the body
according to the instructions:
Signal line (brown,red,yellow) →－+R
Signal line ( black ,red, white ) →－+S
机身 预埋信 号线请按 照指示 来插:
信号 线(棕.红.黄)→－+R
信号 线(黑.红.白)→－+S
A
M
A
S
S
A
S150-M
B
lack
黑色
Socket Self Tapping Screw
内六 角自攻螺 丝
M2.5Χ10mm
Socket Self Tapping Screw
内六 角自攻螺 丝
M2Χ8mm
First put the AMASS AS150-M black plug into the
specified position, and then fix it with M2Χ10mm
hex self-tapping screws.
先将AMASS AS150-M黑色插头 放入指定 位置,再
用M2Χ10mm内六 角自攻螺 丝将其固 定.

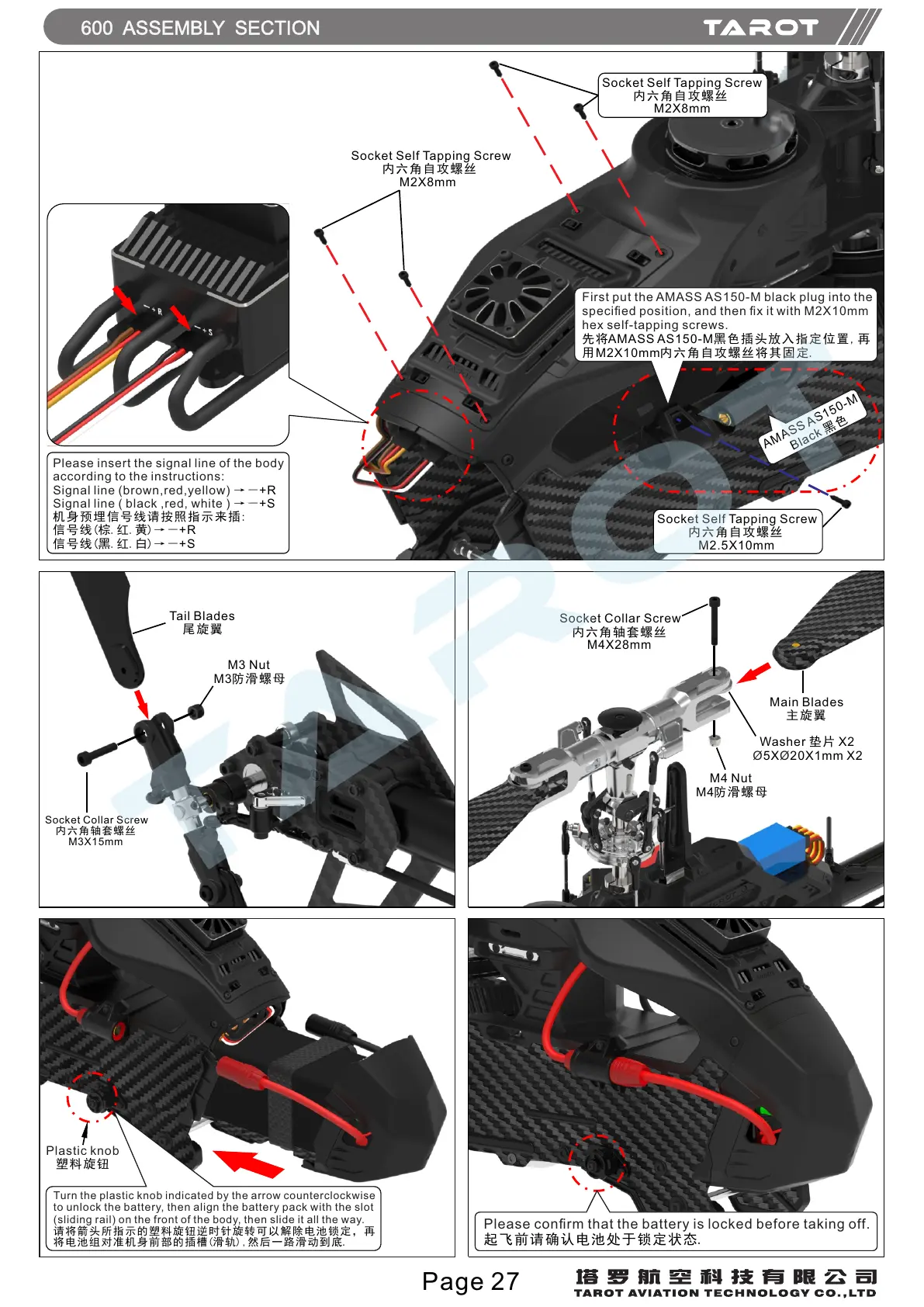

600 ASSEMBLY SECTION
Socket Collar Screw
内六角轴 套螺丝
M3Χ15mm
M3 Nut
M3防滑螺 母
Tail Blades
尾旋 翼
Socket Collar Screw
内六 角轴套螺 丝
M4Χ28mm
M4 Nut
M4防滑螺 母
Main Blades
主旋 翼
Please confirm that the battery is locked before taking off.
起飞前请确认电 池处于锁定状态.
Page 27
Washer 垫片 X2
5Χ 20Χ1mm X2Ø Ø
Plastic knob
塑料 旋钮
Turn the plastic knob indicated by the arrow counterclockwise
to unlock the battery, then align the battery pack with the slot
(sliding rail) on the front of the body, then slide it all the way.
请将箭 头所指 示的塑 料旋钮 逆时 针旋转 可以解 除电池 锁定， 再
将电池 组对准 机身前 部的插 槽(滑轨) ,然后一 路滑动 到底.
