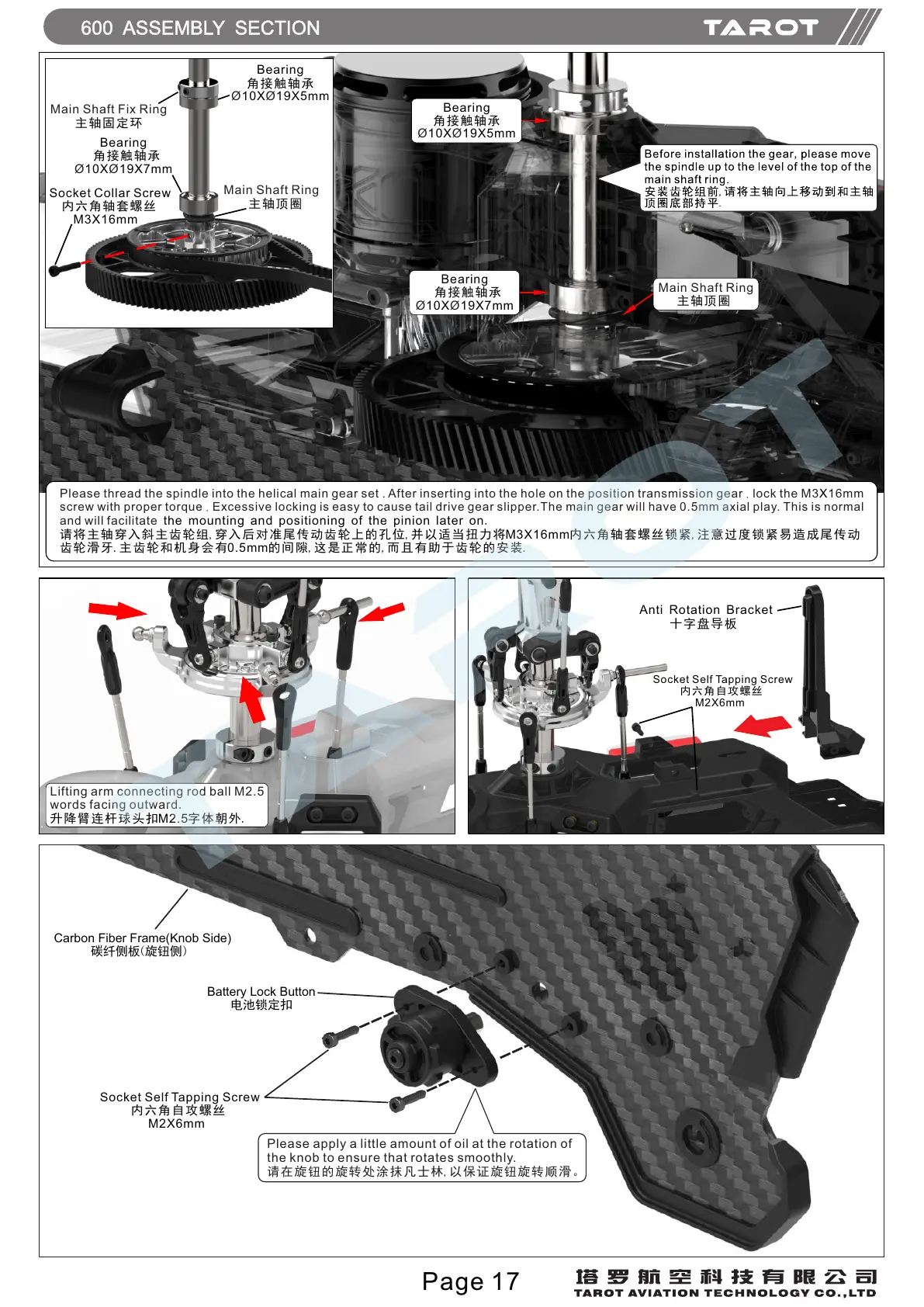

600 ASSEMBLY SECTION
Anti Rotation Bracket
十字 盘导板
Socket Self Tapping Screw
内六角 自攻螺 丝
M2Χ6mm
Lifting arm connecting rod ball M2.5
words facing outward.
升降 臂连杆球 头扣M2.5字体朝 外.
Bearing
角接 触轴承
10Χ 19Χ7mmØ Ø
Bearing
角接 触轴承
10Χ 19Χ5mmØ Ø
Main Shaft Ring
主轴 顶圈
Socket Collar Screw
内六 角轴套螺 丝
M3Χ16mm
Main Shaft Ring
主轴 顶圈
Bearing
角接 触轴承
10Χ 19Χ7mmØ Ø
Bearing
角接 触轴承
10Χ 19Χ5mmØ Ø
Main Shaft Fix Ring
主轴 固定环
Please thread the spindle into the helical main gear set . After inserting into the hole on the position transmission gear， lock the M3 16mm Χ
screw with proper torque， Excessive locking is easy to cause tail drive gear slipper.The main gear will have 0.5mm axial play. This is normal
and will facilitate the mounting and positioning of the pinion later on.
请将 主轴穿入 斜主齿轮 组,穿入后对 准尾传动 齿轮上的 孔位,并以适 当扭力将M3Χ16mm内六 角轴套螺 丝锁紧,注意 过度锁紧 易 造成尾传 动
齿轮 滑牙.主齿轮 和机身会 有0.5mm的间 隙,这是正常 的,而且有助 于齿轮的 安装.
Carbon Fiber Frame(Knob Side)
碳纤侧板(旋钮侧）
Battery Lock Button
电池锁定扣
Socket Self Tapping Screw
内六 角自攻螺 丝
M2Χ6mm
Page 17
Please apply a little amount of oil at the rotation of
the knob to ensure that rotates smoothly.
请在 旋钮的旋 转处涂抹 凡士林,以保 证旋钮旋 转顺滑。
