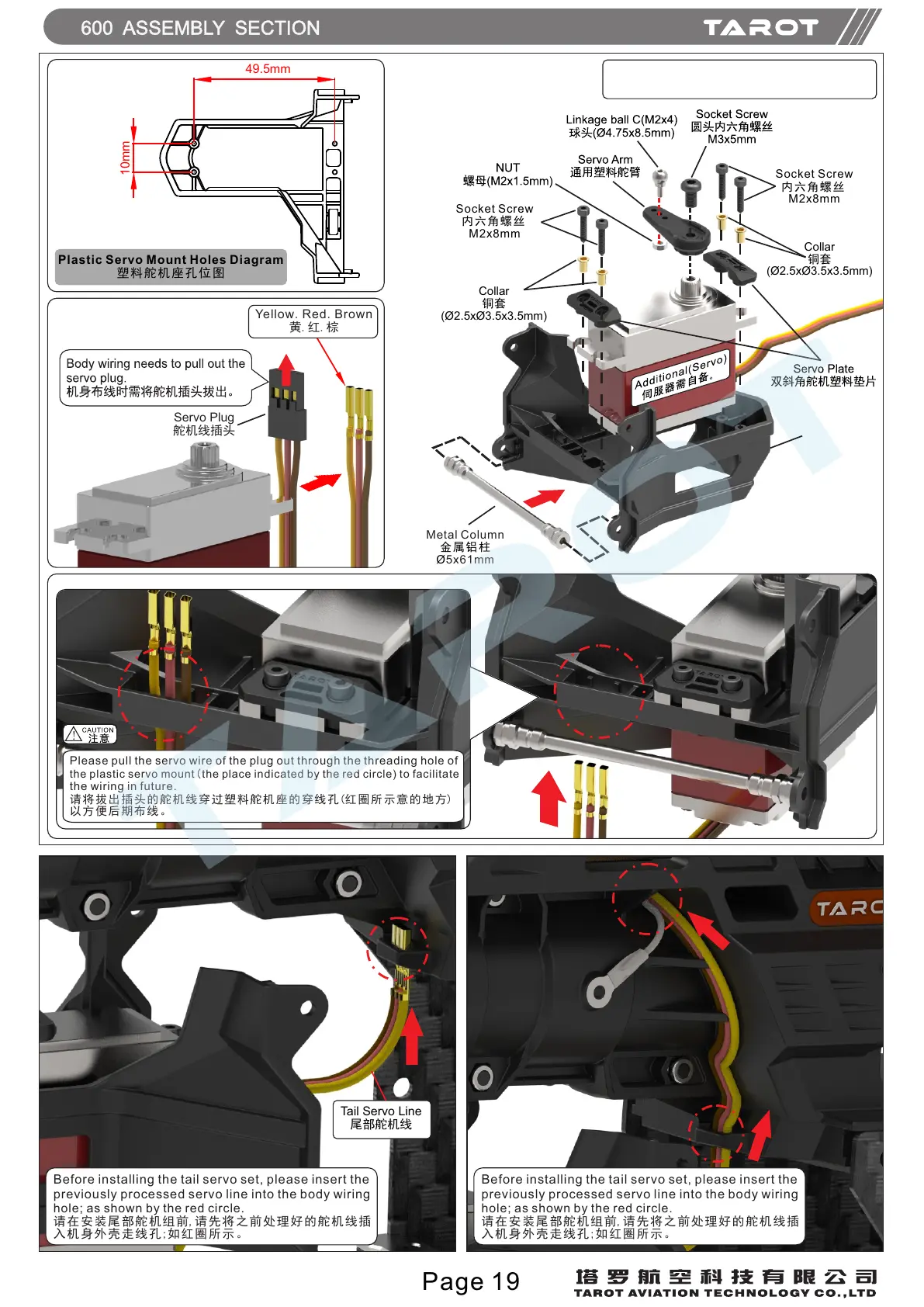

Tarot 600 - PLASTIC SERVO MOUNT AND TAIL SERVO INSTALLATION

600 ASSEMBLY SECTION
Before installing the tail servo set, please insert the
previously processed servo line into the body wiring
hole; as shown by the red circle.
请在 安装尾部 舵机组前,请 先将之前 处理好的 舵机线插
入机 身外壳走 线孔;如红圈 所示。
Tail Servo Line
尾部舵机线
Before installing the tail servo set, please insert the
previously processed servo line into the body wiring
hole; as shown by the red circle.
请在 安装尾部 舵机组前,请 先将之前 处理好的 舵机线插
入机 身外壳走 线孔;如红圈 所示。
Page 19
Servo Plug
舵机线插头
Please pull the servo wire of the plug out through the threading hole of
the plastic servo mount(the place indicated by the red circle) to facilitate
the wiring in future.
请将拔出 插头 的舵机线穿 过塑 料舵机座的 穿线 孔(红圈所 示意 的地方)
以方便后 期布 线。
49.5mm
10mm
Plastic Servo Mount Holes Diagram
塑料 舵机座孔 位图
Metal Column
金属铝柱
Ø5x61mm
Collar
铜套
(Ø2.5xØ3.5x3.5mm)
Collar
铜套
(Ø2.5xØ3.5x3.5mm)
Yellow.Red. Brown
黄.红.棕
Socket Screw
内六角螺 丝
M2x8mm
Socket Screw
内六角螺 丝
M2x8mm
K T S : S805X
TAROT: S2107( Recommend use/建议使用)
Servo Mount
塑料舵机座
