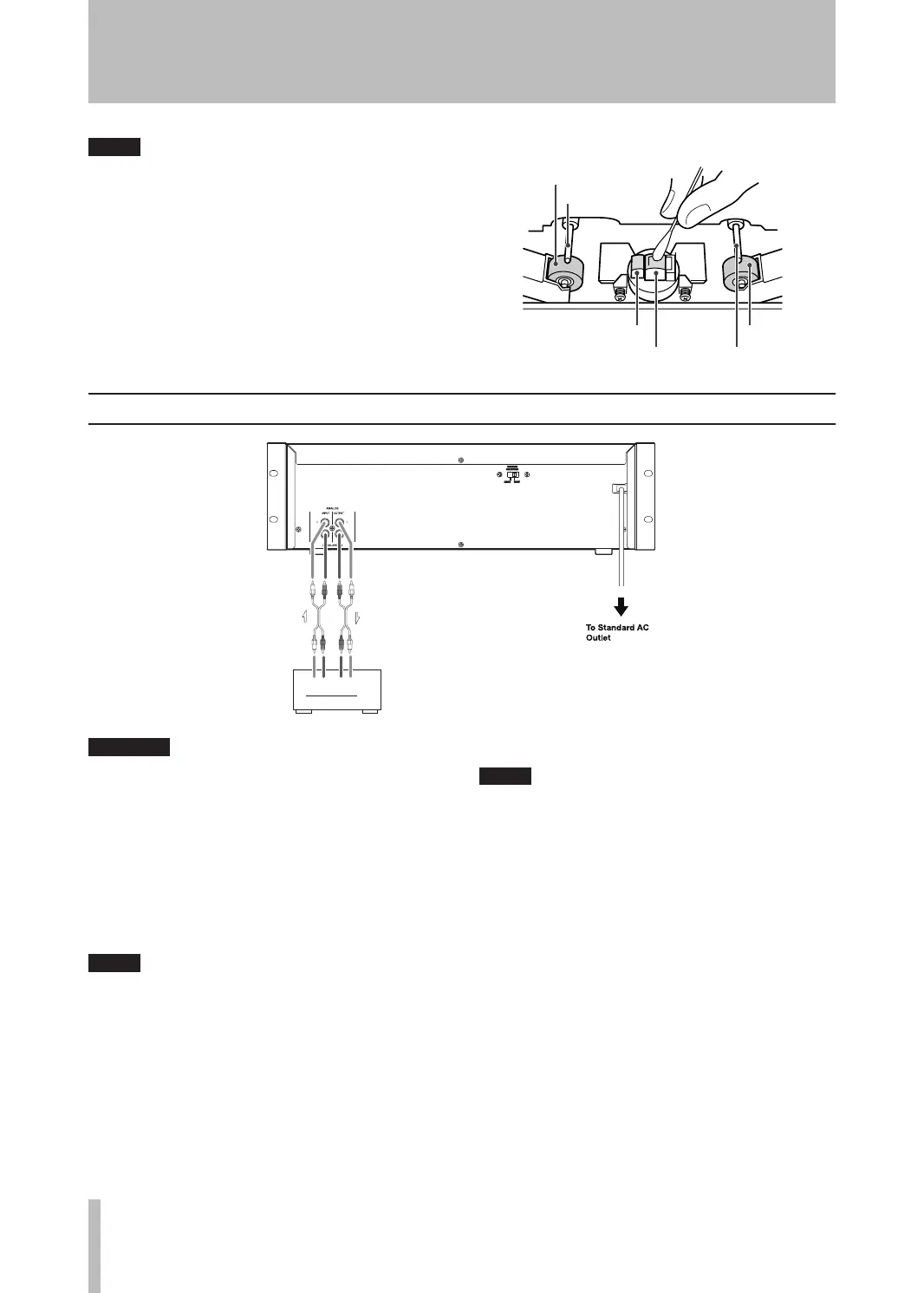

1 − Introduction
Connections
CAUTION
Plug the power cord into an AC outlet only after
•
having made all other connections.
Read the instructions of each component you
•
intend to use with this unit.
Use RCA cables to make connections between this
unit and your amplifier. Make sure to connect:
 WhiteplugtoWhitejack(L:leftchannel)
 RedplugtoRedjack(R:rightchannel)
NOTE
Plugs must be firmly inserted into the corre-
sponding jacks. Do not bundle the RCA cables
together with the power cord and speaker
cables. Doing so will degrade sound quality or
generate noise.
Plug this AC power cord into an AC wall socket.
NOTE
Hold the power plug when plugging or unplug-
•
ging the power cord. Never pull or yank on the
power cord.
Unplug the power cord when you are not going
•
to use the unit for some time.
LLRR
PLAYREC
TAPE
NOTE
Do not make a recording or play back tape
when the tape transport path is wet with clean-
ing liquid, as this could cause the tape to jam or
clog.
Pinch roller
Capstan
Erase head
Record/playback head
Pinch roller
Capstan
