Names and functions of parts

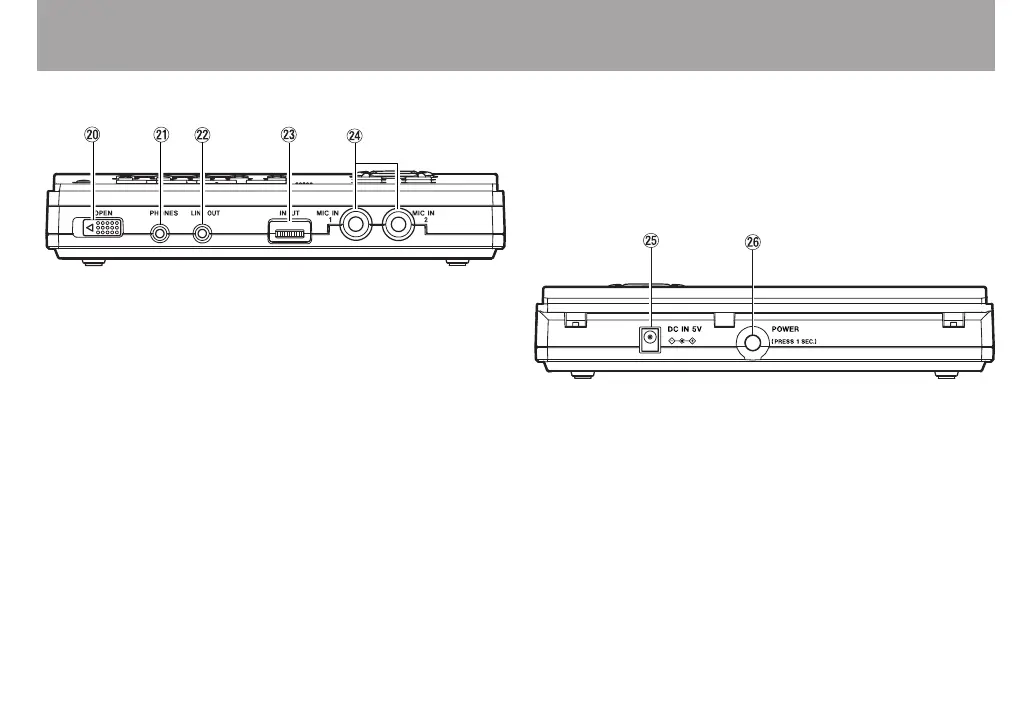

Front
p OPEN switch
Slide this switch away from the PHONES jack to open the
control panel and insert and remove discs.
a PHONES jack (stereo minijack)
Connect headphones to this jack to output the CD
playback signal and the input signal from the MIC IN 1 and
MIC IN 2 jacks.
s LINE OUT jack (stereo minijack)
Outputs the CD playback signal and input signal from the
MIC IN 1 and MIC IN 2 jacks. Connect an audio system,
speakers with built-in amplifiers or similar equipment.
d INPUT dial
Adjusts the input signal level of the MIC IN 1 and MIC IN 2
jacks. Both mic input levels are adjusted simultaneously.
f MIC IN 1 and MIC IN 2 jacks (standard phone jacks)
Use each of these jacks to connect a mic or a contact mic
attached to an instrument.
Rear
g DC IN 5V jack
Connect a TASCAM PS-P520 AC adapter (sold
separately).
h POWER switch
Turn the power ON and OFF. Press and hold the switch for
more than one second to turn the power ON and OFF.
