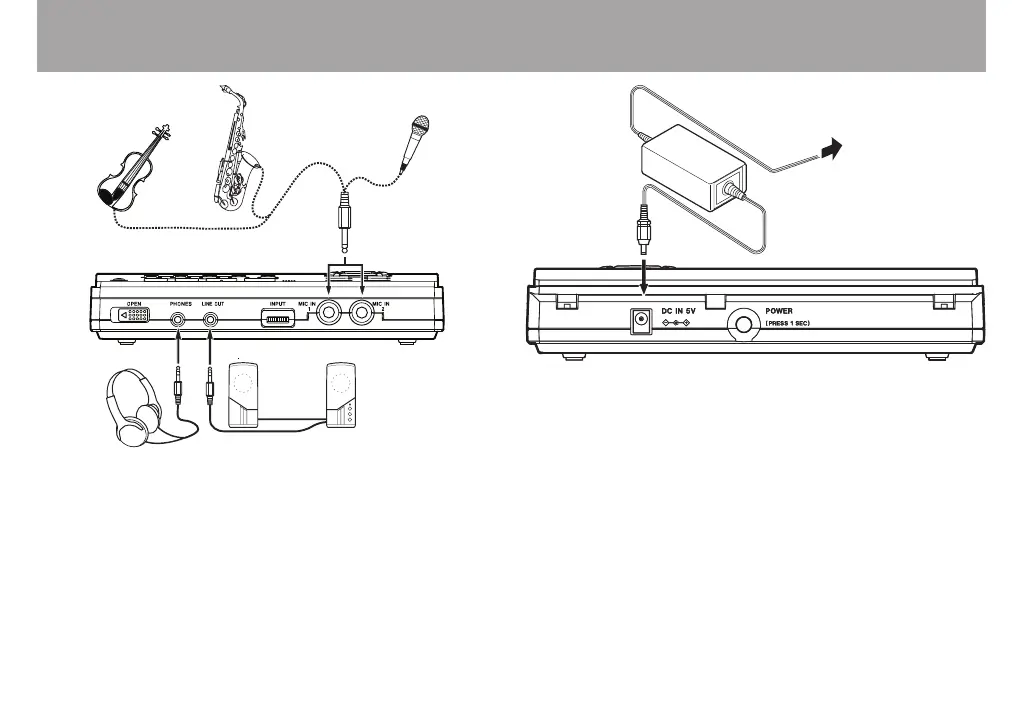

Making connections
PHONES jack: headphones
LINE OUT jack: audio system, speakers with built-in ampli-
fiers, etc. (Use a conversion cable as necessary.)
MIC IN 1, MIC IN 2 jacks: mics and contact mics attached to
instruments
•
•
•
DC IN 5V: PS-P520 AC adapter (sold separately) (See
“Operation with an AC adapter” on page 15.)
•
Mic
Contact mic attached
to an instrument
Headphones
Speakers with built-in amplification
or stereo system
TASCAM
PS-P520
（sold separately)
AC outlet
DC PLUG
