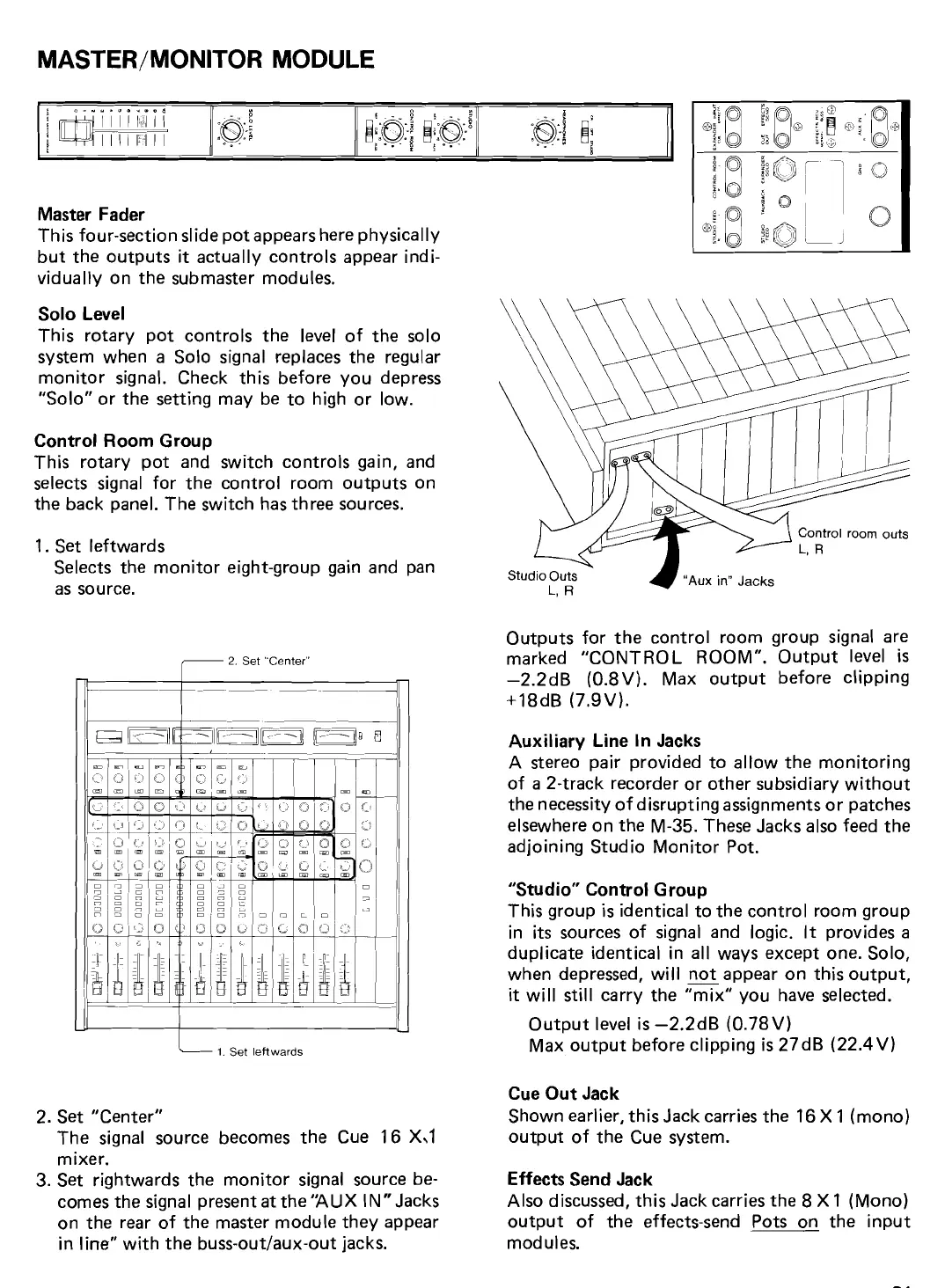

MASTER/MONITOR MODULE
Master Fader
This four-section slide pot appears here physically
but the outputs
it
actually controls appear indi-
vidually
on the submaster modules.
Solo Level
This rotary pot controls the level of the solo
system when a Solo signal replaces the regular
monitor signal. Check this before you depress
"Solo" or the setting may be to high or low.
Control Room Group
This rotary pot and switch controls gain, and
selects signal for the control room outputs on
the back panel. The switch has three sources.
1. Set leftwards
Selects the monitor eight-group gain and pan
as source.
7
2.
Set "Center"
2. Set "Center"
The signal source becomes the Cue 16
X-1
mixer.
3. Set rightwards the monitor signal source
be-
comes the signal present at thelRUX IN" Jacks
on the rear of the master module they appear
in
line" with the buss-outlaux-out jacks.
Outputs for the control room group signal are
marked "CONTROL ROOM". Output level
is
-2.2dB (0.8V).
Max output before clipping
+18dB (7.9V).
Auxiliary Line
I
n Jacks
A stereo pair provided to allow the monitoring
of a 2-track recorder or other subsidiary without
the necessity of disrupting assignments or patches
elsewhere on the M-35. These Jacks
also feed the
adjoining Studio Monitor Pot.
"Studio" Control Group
This group is identical to the control room group
in
its
sources of signal and logic.
It
provides a
duplicate identical in
al1 ways except one. Solo,
when depressed, will not appear on this output,
it
will still carry the "mix" you have selected.
Output level is
-2.2dB (0.78V)
Max output before clipping is 27dB (22.4V)
Cue Out Jack
Shown earlier, this Jack carries the 16 X 1 (mono)
output of the Cue system.
Effects Send Jack
Also discussed, this Jack carries the 8 X 1 (Mono)
output of the effects-send Pots on the input
modules.
