Section 4
4-1
Model 336, 338, 339

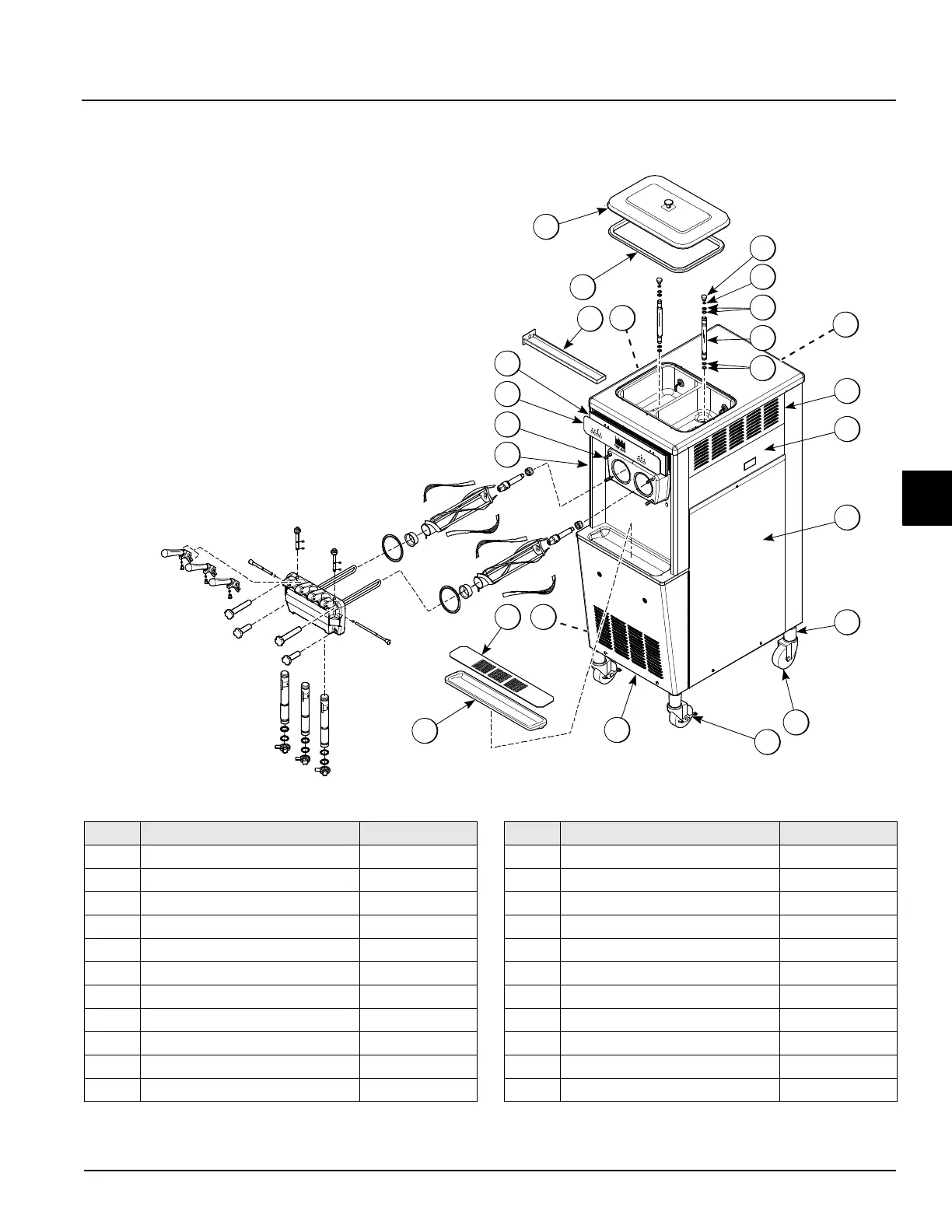

Operator Parts Identification
4
Operator Parts Identification
Model 336
Figure 4-1
13
4
1
5
7
6
7
22
15
21
20
18
19
2
9
10
11
12
14
16
17 11
3
8
Item Description Part No.
1 Cover A.-Hopper X37963-SER
2 Pan-Drip 17-1/4” Long 027504
3 Panel-Upper Side L. 028740
4 Orifice 022465-100
5 O-ring-3/8 OD X .070W 016137
6 Tube-Feed 5/32 Dia. Hole 043461-2
7 O-ring-.563 OD X .070W 043758
8 Panel-Rear 029816
9 Louver-Side-Top 051191
10 Panel-Upper Side R. 028741
11 Panel A.-Lower Side X24424-SER
Item Description Part No.
12 Adapter A. Caster X18915
13 Caster-SWV 5/8 Stem 4” 018794
14 Caster-4” SWV W/Brake 034081
15 Panel-Service 082483
16 Tray-Drip 16-7/8l X 5-1/8 020157
17 Shield-Splash 022765
18 Stud-Nose 022822
19 Panel A.-Front X68530
20 Decal-Dec-Taylor 045812
21 Plate-Dec 041854
22 Gasket-Hopper Cover 037042
