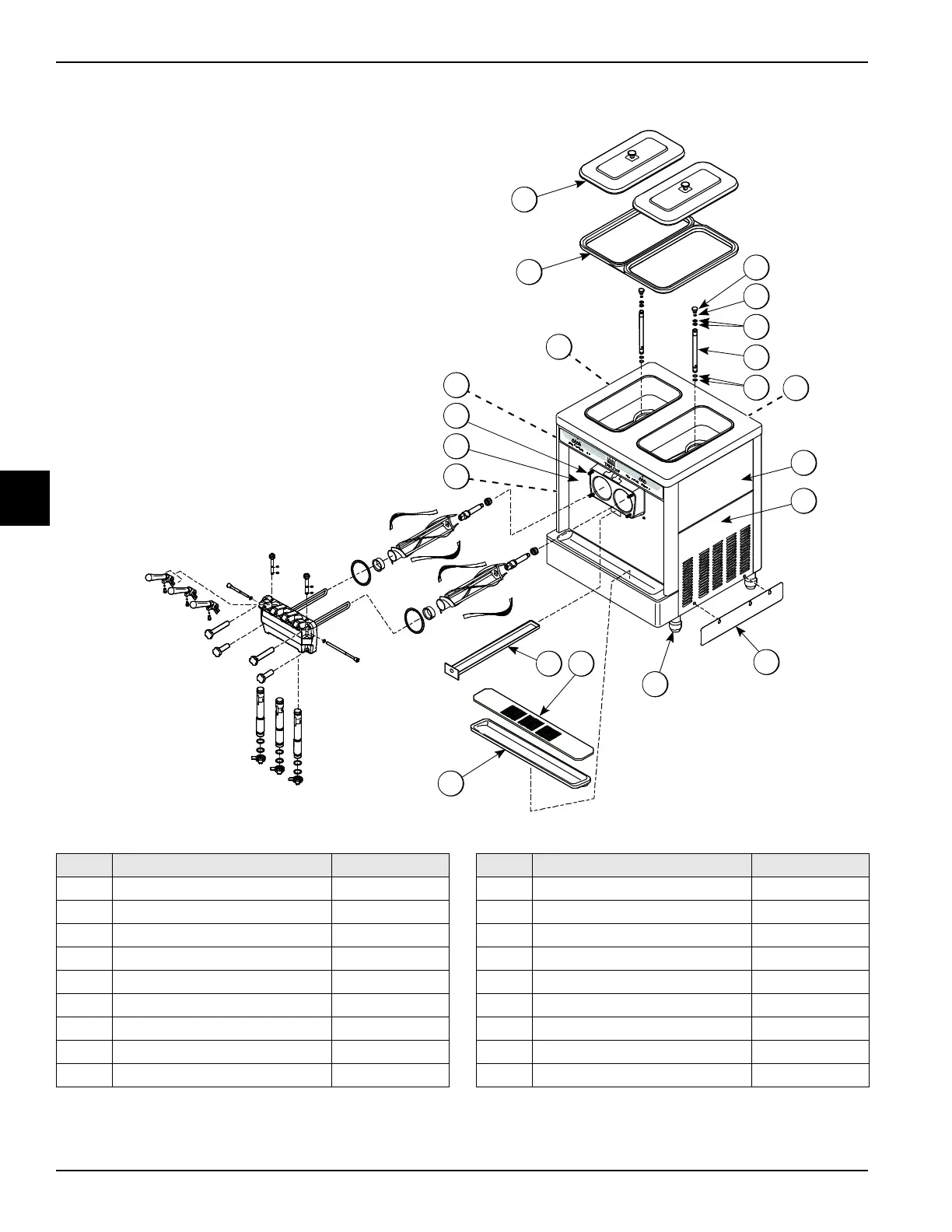

OPERATOR PARTS IDENTIFICATION
Model 336, 338, 339
Operator Parts Identification
4
Model 338
Figure 4-2
3
1
4
5
12
13
9
10
18
14
16
17
8
2
11
10
7
6
6
15
Item Description Part No.
1 Cover A.-Hopper X38458-SER
2 Gasket-Hopper Cover 038474
3 Orifice 022465-100
4 O-ring 3/8 OD X .070 W 016137
5 Tube A.-Feed SS 5/32 Hole X29429-2
6 O-ring.643 OD X .077 W 018572
7 Panel-Rear 051600
8 Louver-Side Top 051191
9 Panel A.-Side Upper Right X48596
Item Description Part No.
10 Panel-Side 048487
11 Panel A.-Side Left X51596-SER
12 Stud-Nose Cone 022822
13 Panel A.-Front X51590
14 Pan A.-Drip-15-1/8 Long X51601
15 Shield-Splash 23 Long 022766
16 Tray-Drip 22-7/8 L X 5-1/8 W 014533
17 Leg-4” SS W/O-ring 013458
18 Skirt-Air Flow 048489
