OPERATOR PARTS IDENTIFICATION
Model 336, 338, 339
Operator Parts Identification
4

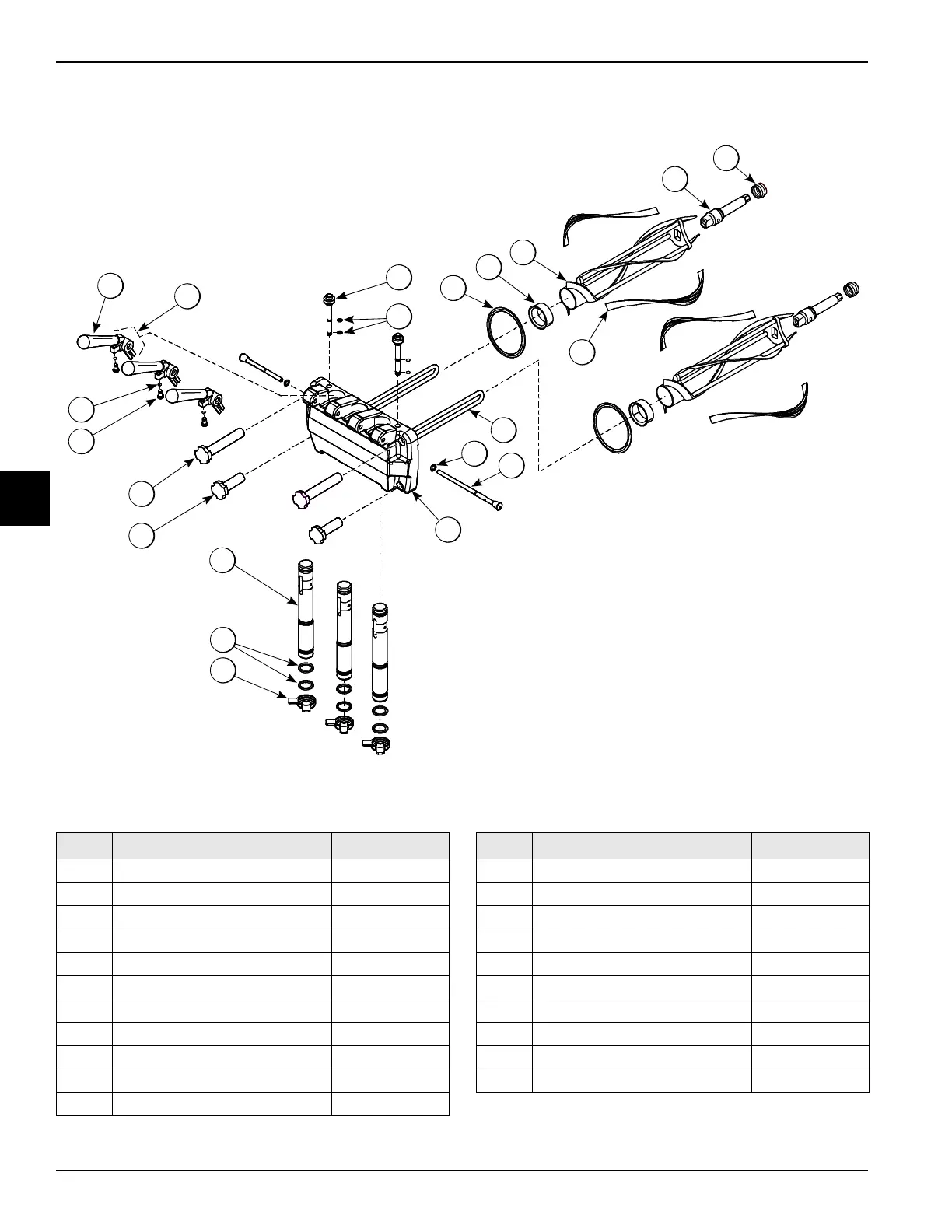

Three Spout Door
Figure 4-4
4
1
5
6
3
15
12
14
9a
2
8
10
11
16
17
9
17a
9c
9b
7
13
Item Description Part No.
1 Seal-Drive Shaft 032560
2 Shaft-Beater 033235
3 Beater A.-2.8qt-Helicore X35466
4 Blade-Scraper-Plastic 035480
5 Bearing-Front 050216
6 Gasket-Door Ht 4"-Double 048926
7 O-ring-3/8 OD X .070W 016137
8 Plug-Prime 028805
9 Handle A.-Draw *White X81010-SP
9a Handle-Draw-White 056248-1
9b Screw-Adjustment 056332
Item Description Part No.
9c O-ring-1/4 OD X .070W 50 015872
10 Nut-Stud 034382
11 Nut-Stud 034383
12 Valve A.-Draw X69539
13 O-ring-7/8 OD X .103W-SIL 083693
14 Cap-Design 1.010"ID-6 Point 014218
15 O-ring-5/16 OD X .070W 016272
16 Rod A.-Pivot X20683
17 Door A.-3 Spout X51532-15
17a Baffle A.-Short 4” X50883
To Next Page
