OPERATOR PARTS IDENTIFICATION
Models 340, 341, 342
Operator Parts Identification
4

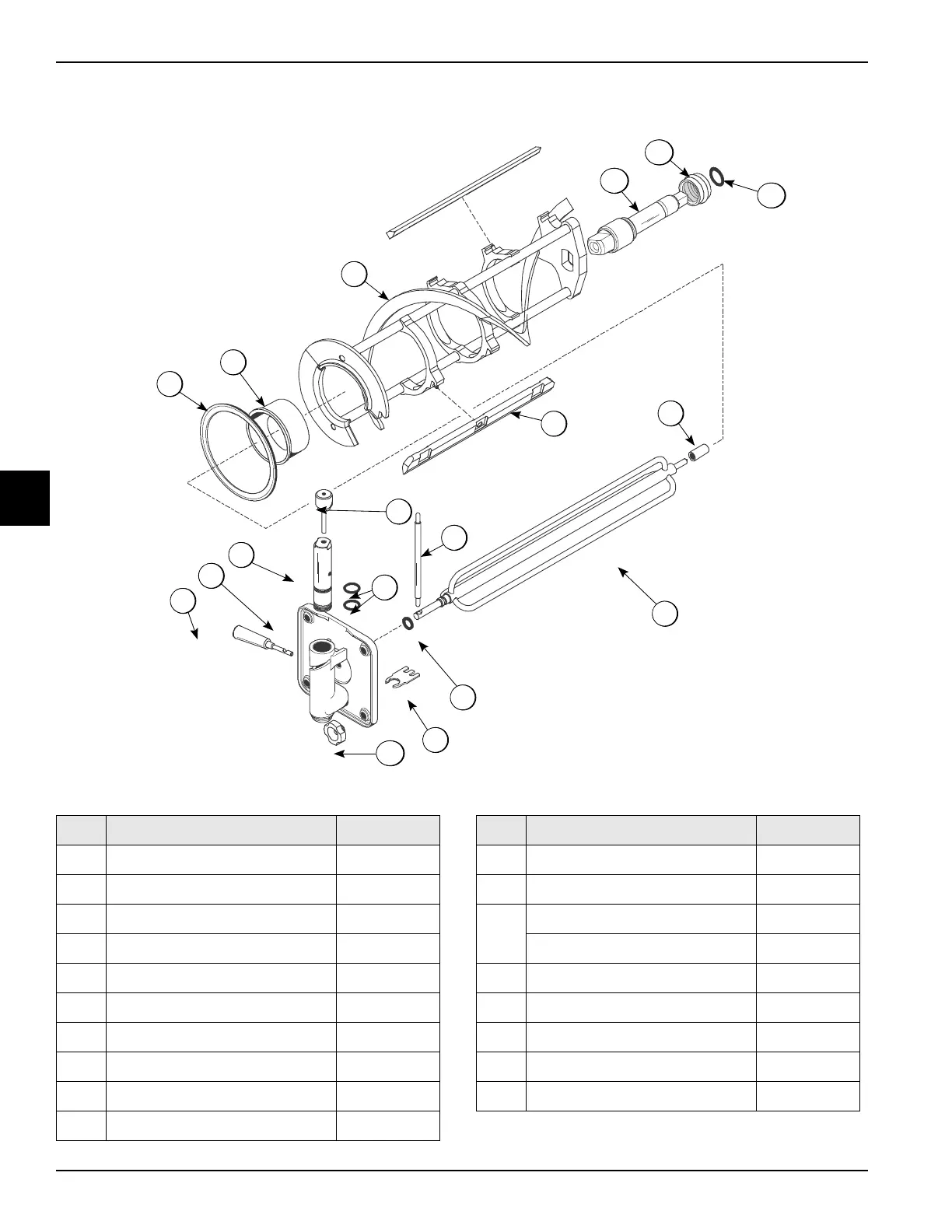

Models 340, 341, 342 Beater Door Assembly (Standard Door/No Prime Plug)
Figure 4-4
18
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Item Description Part No.
1 Door A.- Slush- Partial X83427SER3
2 Handle A.- Draw- Slush X47384
3 Valve- Draw 047734
4 Pin A.- Valve Handle X25929
5 O- ring- 1 OD X 0.139 W 032504
6 Buster- Ice 047735
7 O- ring- 0.291 ID X 0.080 W 018550
8 Torque A. X14488
9 Bearing- Guide 014496
10 Gasket- Door 5.177ID 016672
Item Description Part No.
11 Bearing- Front 013116
12 Beater A.-7 QT-1 Pin X46233
13 Arm- Torque (340/341) 014500
Arm- Torque (342) 029549
14 Blade- Scraper- Plastic 084950
15 Shaft- Beater 035418
16 Seal- Drive Shaft 032560
17 O- ring- 7/8 OD X 0.139 W 025307
18 Nut- Stud 029880
To Next Page
