PARTS
4-19
Models C712/C713
Parts
4

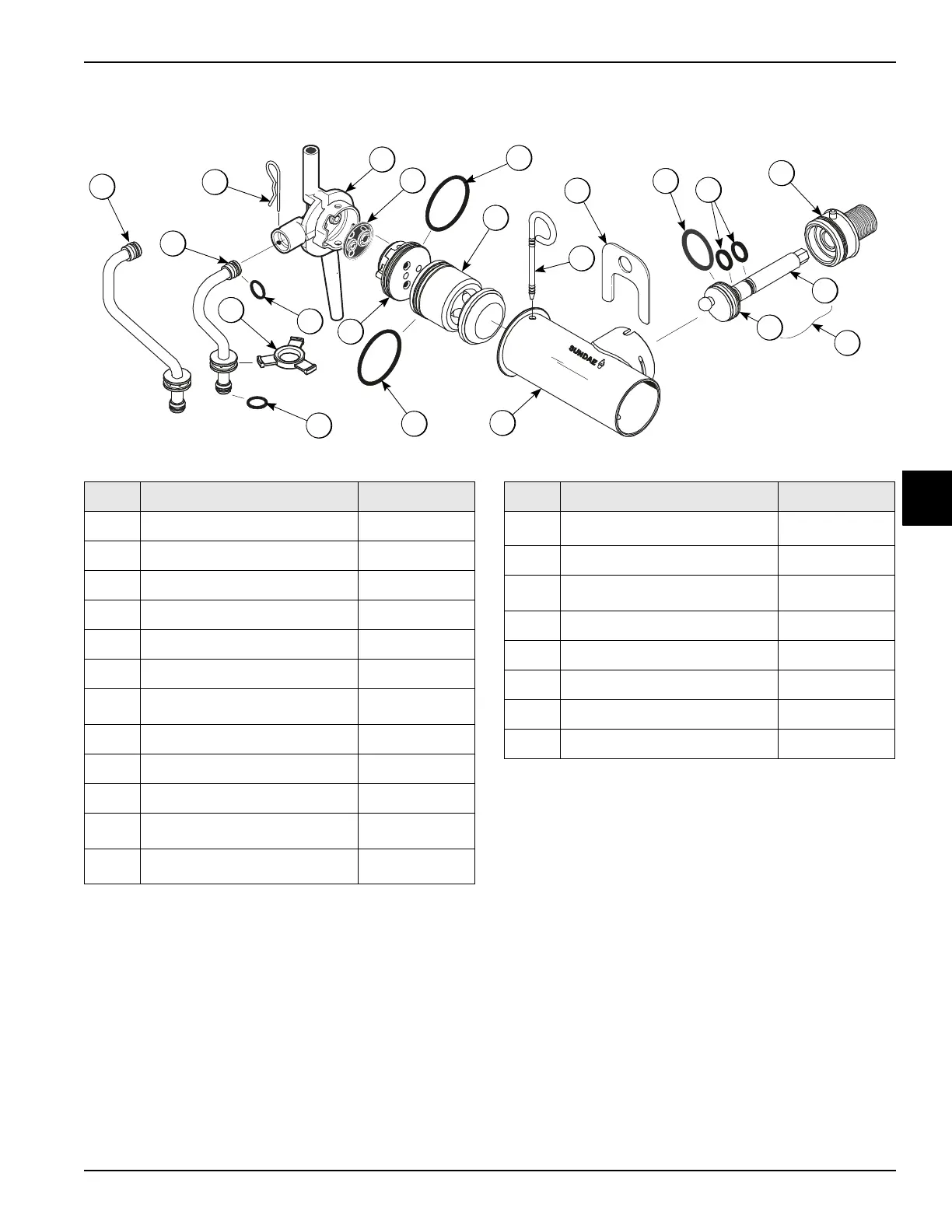

Pump A.-Mix Simplified - X57029- (Model C712)
Figure 4-9
Note: The standard pump is X57029-14. Overrun can
be changed higher or lower by substituting the valve
body cap. The higher the (-), the higher the overrun. Your
machine Includes 2 Optional Caps, 056874-12 and
056874-16.
**Not Included with X57029-14
9
12
11
7
6
4
3
13
2
10d
10c
15
10b
10a
10
1
8
4
5
8
14
Item Description Part No.
1-7 Pump A.-Mix Simplified S.S. X57029-14*
1 Cylinder-Pump Hopper 057943
2 Pin-Retaining X55450
3 Piston-Pump-Simplified 053526
4 O-ring-2-1/8 OD x .139W-#225 020051
5 Cap-Valve Body SS 056874-14*
6 Gasket-Simplified Pump Valve 053527
7 Adaptor-Mix Inlet-SS-Red 054825
8 O-ring-11/16ODX.103W-Red 016132
9 Pin-Cotter-Hairpin-1/8DIA 044731
10 Shaft A.-Drive-Mix Pump- Hopper X41947
10a Crank-Drive-Hopper Mix Pump 039235
Item Description Part No.
10b Shaft-Drive-Mix Pump- Hopper 041948
10c O-ring 1/2 ID x .139W-Shaft 048632
10d O-ring-1-3/4 OD x .139W- Crank 008904
11 Tube A.-Feed-Left X59808
12 Tube A.-Feed-Right X59809
13 Clip-Retainer-Mix Pump 044641
14 Ring-Check-Feed-Tube 056524
**15 Sleeve A.-Mix Pump *HT X44761
