4-20
PARTS
Models C712/C713
Parts
4

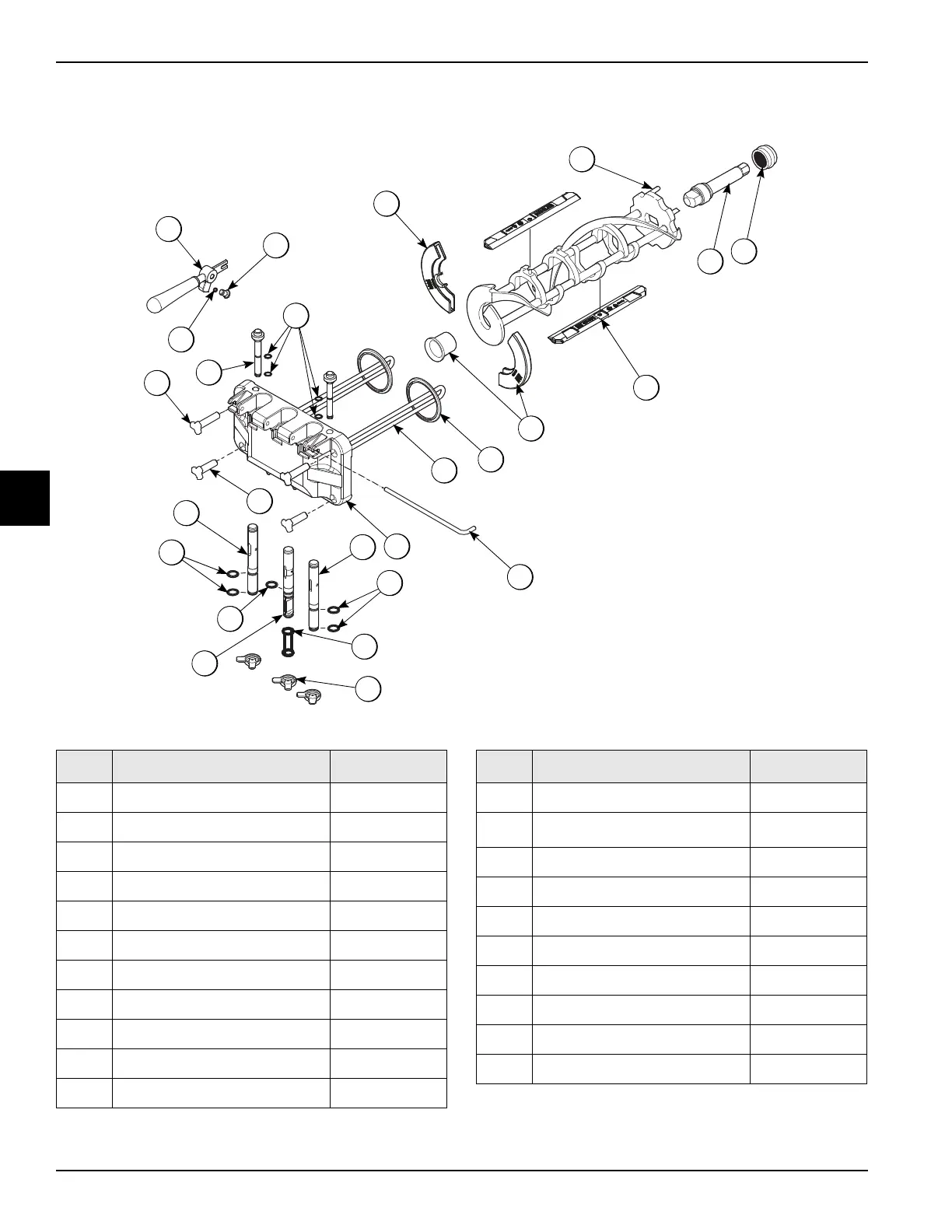

Door and Beater Assembly (Model C712)
Figure 4-10
1
3
17
18
2
19
12
13
15
16
14
12
7
5a
6
5
9
8
8
9
8
10
11
20
4
Item Description Part No.
1 Handle A.-Draw-Welded X56421-1
2 Plug-Prime Twin 059936
3 Nut-Stud-Black 3.250 Long 058765
4 Nut-Stud-Black 2.563 Long 058764
5 Door A.-3SPT*LG BAF X59921-SER
5a Baffle A.-Long 4 IN X50882
6 Pin-Handle-Twin 059894
7 Gasket-Door HT 4"-Double 048926
8 O-ring-7/8 OD X .103W-SIL 083693
9 Valve A.-Draw X69615
10 Valve A.-Draw-Center X62218
Item Description Part No.
11 Seal-Draw Valve 034698
12 Kit A.-Beater-Front Shoes-Bearing X50350
13 Beater A.-3.4QT-1 Pin X46231
14 Blade-Scraper-Plastic 084350
15 Shaft-Beater 032564
16 Seal-Drive Shaft 032560
17 O-ring-1/4 OD X .070W 50 015872
18 Screw-Adjustment-5/16-24 056332
19 O-ring-.500 OD X .070W 024278
20 Cap-Design 1.010"ID-6 Point 014218
To Next Page
