4-24
PARTS
Models C712/C713
Parts
4
Rail-Syrup - X63883-27 (Optional)

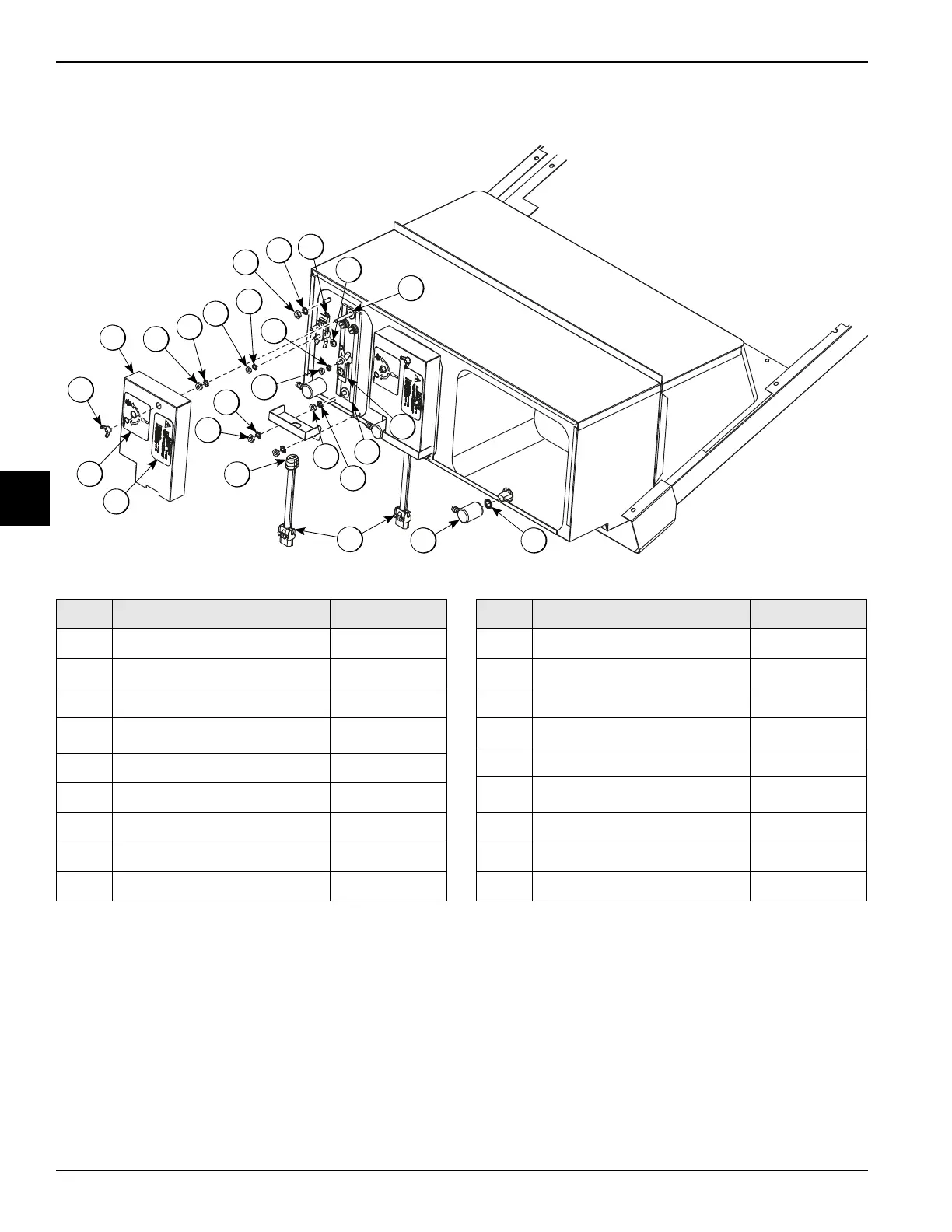

Figure 4-14
4
3
2
1
5
6
7
8
5
6
9
10
11
8
7
6
5
5
6
14
15
16
17 12
13
Item Description Part No.
Tank A.-Syrup-Heated (Includes:) X63882-27
1 Label-INST-Syrup Label Reset 055810
2 Label-Adj Temp-Symbol 030994
3 Nut-Wing 10-32 Nylon 034534
4 Box-Heater 043954
5 Nut-10-32 Hex 005598
6 Washer-#10 Ext Tooth Loc 002681
7 Nut-8-32 Hex M/S Nut Small 000969
8 Washer-#8 Ext Tooth Lock 000964
Item Description Part No.
9 Thermostat-Adj-Snap 049993
10 Washer-Flat .203 x .437 x .0 080963
11 Washer-3/16 USS Flat 18-8 005194
12 O-ring-9/16 OD x .103W 016369
13 Thermostat-HI Limit-Snap 049992
14 Heater-Strip-175W-240V 042782
15 Relief-Strain-.560X.730-Blk 023764
16 Harness-Wire-SYR-Heaters 068342-27
17 Plug-Drain-Wyott 023953-5
