128
Parts
McDonald's Intelligap Grills

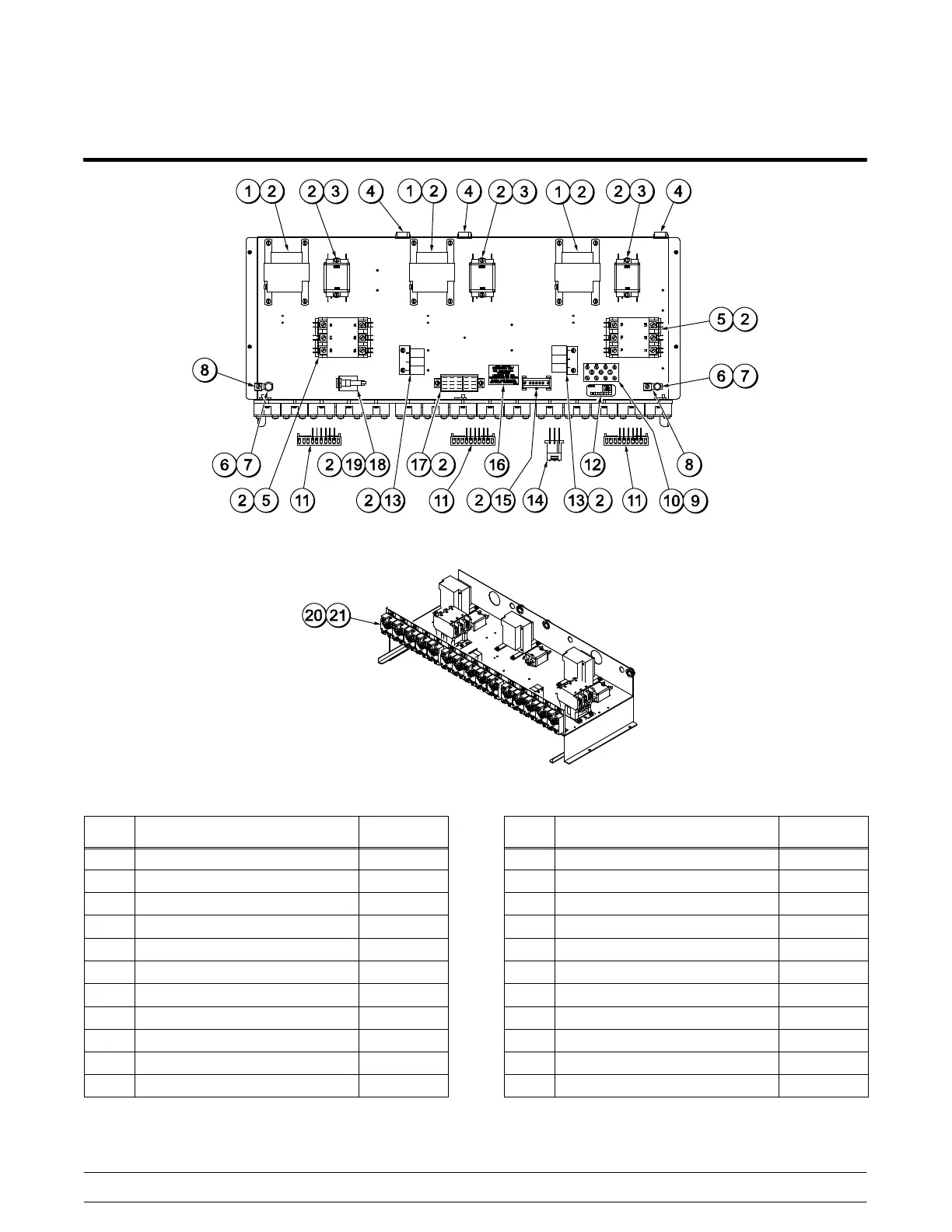

Control A.-Upper - X72827-12 (C842 - 60 Hz)
Figure 71
ITEM DESCRIPTION PART NO.
1 TRANS.-100VA 120/208/240 079800
2 SCREW-8X1/2 SLTD HEX 075763
3 FILTER-CORCOM 2VR1 032567
4 BUSHING-SNAP 11/16 ID X 7/8 010548
5 RELAY-3P-50A 110/120 COIL 051890-12
6 SCREW-1/4-20X5/8 SERRATED 017522
7 NUT-1/4-20 WHIZ FLANGE LOC 017523
8 LUG-GROUND 4-14GA WIRE 017667
9 BLOCK-TERMINAL 4P 1,2,L1,N 051647
10 SCREW-8X1 1/4 PHLP HD RD B 039420
11 HARNESS-SSR TO I/O 072626
ITEM DESCRIPTION PART NO.
12 LABEL-WIRING *CONTR 079538-12
13 FILTER A.-WHT/BLK X79256
14 HARNESS A.-COMP/TB X72854
15 BLOCK-TERMINAL 7P GREEN 024156
16 LABEL-COPPER COND ONLY 025948
17 BLOCK-TERMINAL 2P .25 SPAD 051644
18 HOLDER-FUSE-15 A, 250 V 076299
19 BRACKET-FUSE 079867
20 RELAY A.-HEATSINK X72729
21 SCREW-10-32X5/8 UN SL HWH 039382
* FUSE 7 AMP 079837-070
*NOT SHOWN
