151
McDonald's Intelligap Grills
Parts
151222

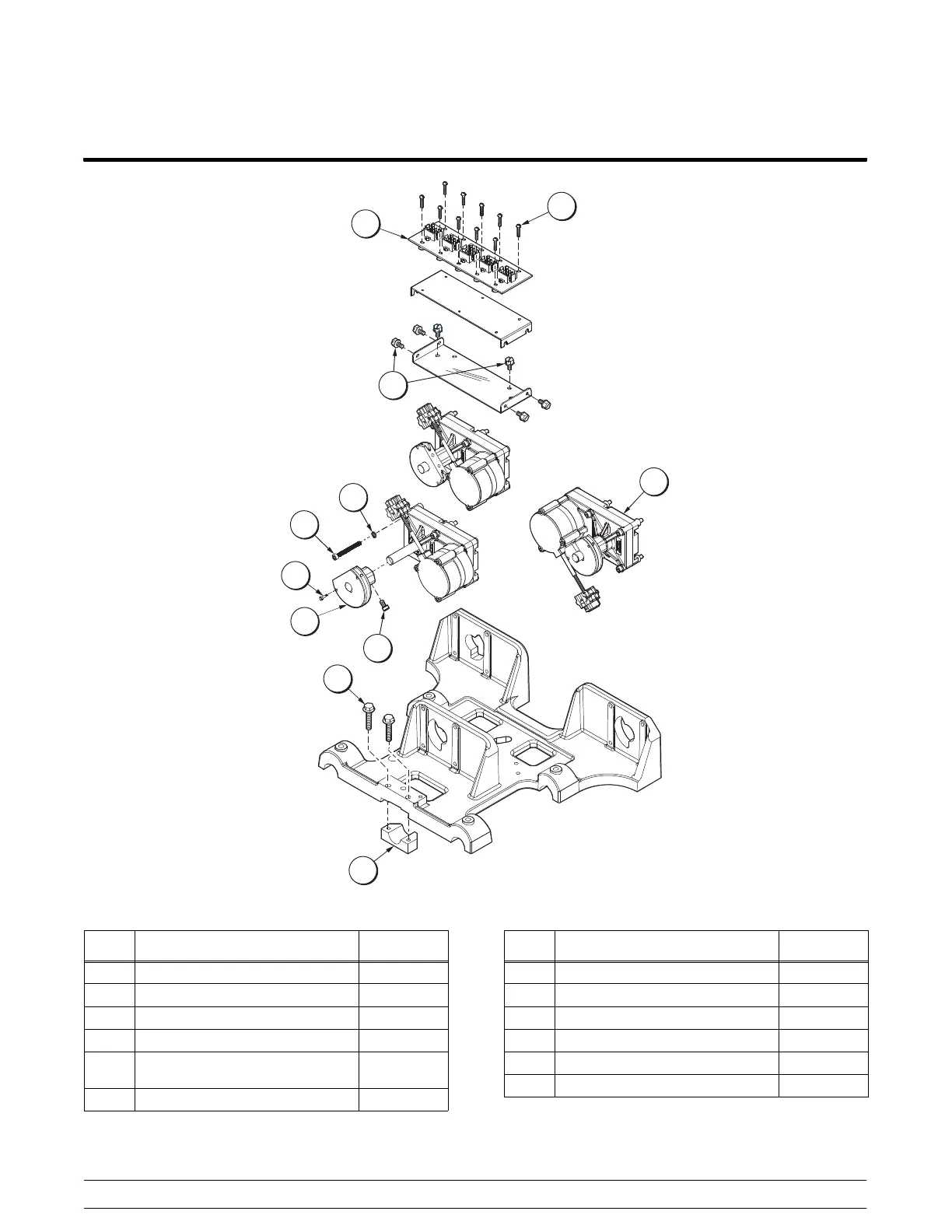

Motor A.-Mount - X73115 (C832/C834/C835/C836/C838)
6
8
7
1a
1
4b
4a
3
9
5
2
Figure 87
ITEM DESCRIPTION PART NO.
1 PCB A.-PLATEN MOTOR X83419
1a SCREW-6-32X5/8 SLTD ROUND 019309
2 SCREW-10-32X3/8 SERR HWH 075985
3 MOTOR-BLDC 073998
4 KIT A.-INTELLI GAP HALL
MOTORS
X84379
4a WASHER-#10 MED. SPLIT LOCK 600123
ITEM DESCRIPTION PART NO.
4b SCREW-10-32X1-3/4 084166
*5 SCREW-SHOULDER 4-40X.3755 058381
6 PULLEY-2. 7/16 DIA. X .063 072457
7 SCREW-10-32X3/8 600136
8 SCREW-1/4-20X1-1/4 024351
9 CLAMP-HANDLE 079753
*NOT AVAILABLE IN X73115
