Parts
McDonald's Intelligap Grills
Springs (C842/C844/C845)

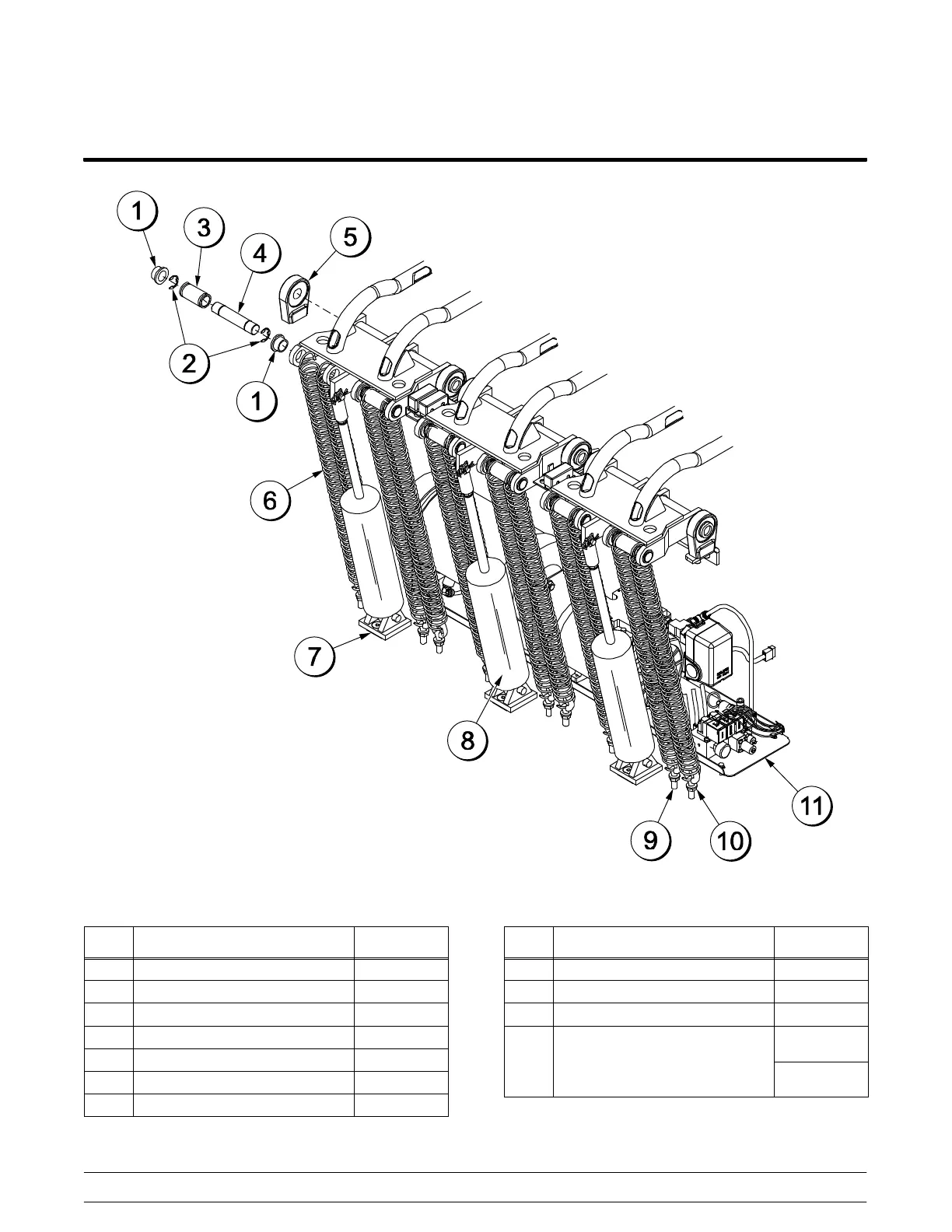

Figure 86
ITEM DESCRIPTION PART NO.
1 BEARING-FLANGE 3/4 X 15/16 077042
2 E-RING-3/4 STEEL 077046
3 BEARING .753 X 1.000 X 2.000 072541
4 PIN-SPRING UPPER 072542
5 BEARING 3/4 ID-SELF ALIGN 078730
6 SPRING-EXTENSION LATCH 072617
7 BRACKET-PIVOT 076451
ITEM DESCRIPTION PART NO.
8 CYLINDER-AIR 6IN STROKE 079160
9 SCREW-EYE 3/8-16X1 BOLT 074397
10 NUT-3/8-16 WHIZ FLANGE LOC 017329
11 COMPRESSOR A.-AIR
X72724-
(C842/C844)
X73108-
(C845)
