152
Parts
McDonald's Intelligap Grills

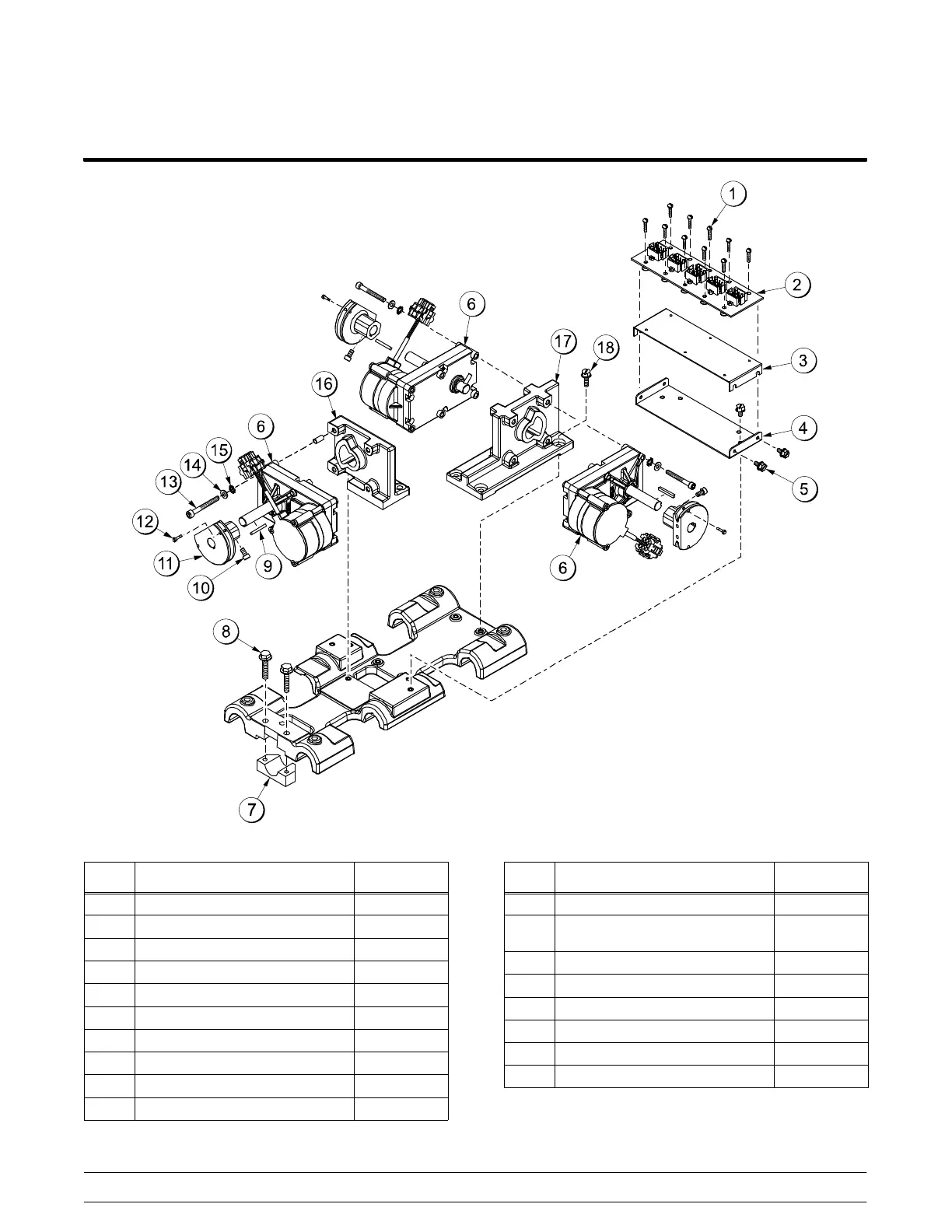

Motor A.-Mount - X72403 (C842/C844/C845)
Figure 88
ITEM DESCRIPTION PART NO.
1 SCREW-6-32X5/8 RHM/STNLS 019309
2 PCB A - INTERFACE MOTOR X73633-SER
3 MOUNT-PCB 072898
4 MOUNT BOTTOM-PCB 072901
5 SCREW-10-32 X 3/8 SERR FLG 075985
6 MOTOR-24VDC/1.5A/7.2 RPM 072454
7 CLAMP-HANDLE 079753
8 SCREW-1/4-20X1-1/4 MF/HEX 024351
9 KEY-1/8 SQ. X 1.0 LONG 072566
10 SCREW-10-32 X 1/2 SHCS / SS 600136
ITEM DESCRIPTION PART NO.
11 PULLEY-2/7-16 DIA. X .063 072457
12 SCREW-SHOULDER
4-40X.3755
058381
13 SCREW-10-32X1-5/8 SHCS SS 079117
14 WASHER-#10/18-8 SS FLAT 037841
15 WASHER-#10/SHAKEPROOF 002681
16 SUPPORT MOTOR - SINGLE 072405
17 SUPPORT MOTOR - DOUBLE 072406
18 SCREW-10-32 X 5/8 MF/HEX 047925
