McDonald's Intelligap Grills
Parts
Control A.-Upper - X72889-40 (C842/C844 - 50 Hz)

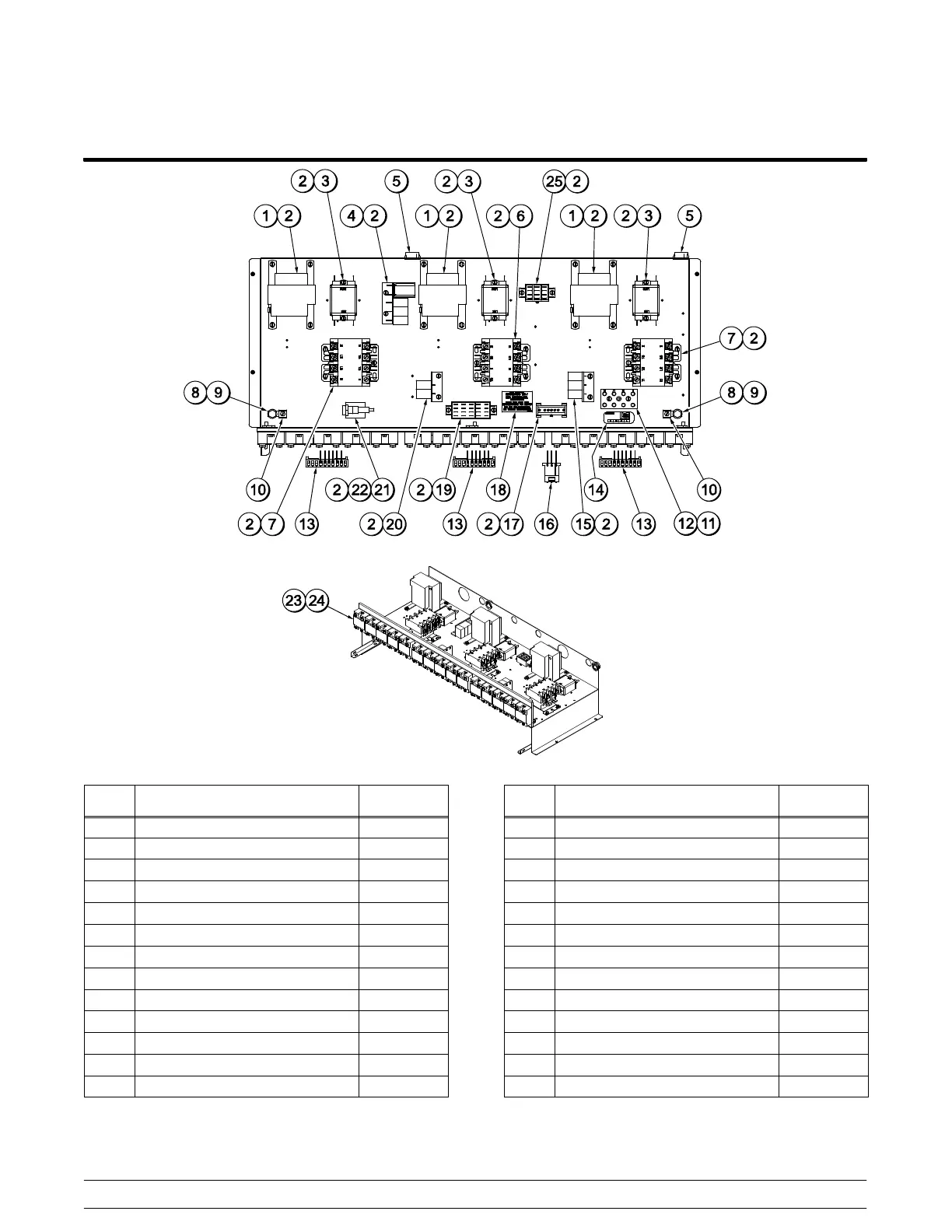

Figure 72
ITEM DESCRIPTION PART NO.
1 TRANS.-100VA 120/208/240 PRI 079800
2 SCREW-8X1/2 SLTD HEX WASH 075763
3 FILTER-CORCOM 2VR1 032567
4 FILTER A.-* WHT/BLK X72727-40
5 BUSHING-SNAP 11/16 ID X 7/8 010548
6 RELAY-4P/40A L3-N LABEL 073191-27
7 RELAY-4P-40A 200/240 COIL 050869-27
8 SCREW-1/4-20X5/8 SERRATED 017522
9 NUT-1/4-20 WHIZ FLANGE LOC 017523
10 LUG-GROUNDING 4-14GA WIRE 017667
11 SCREW-8X1 1/4 PHLP HD RD 039420
12 BLOCK-TERMINAL 4P 1,2,L1,N 051647
13 HARNESS-SSR TO I/O 072626
ITEM DESCRIPTION PART NO.
14 LABEL-WIRING *CONTR 079538-40
15 FILTER A.-*WHT/BLK X79256
16 HARNESS A.-COMP/TB X72854
17 BLOCK-TERMINAL 7P GREEN 024156
18 LABEL-COPPER COND ONLY 025948
19 BLOCK-TERMINAL 2P .25 SPD 051644
20 FILTER-2 POLE 072887
21 HOLDER-FUSE-15 A, 250 V 076299
22 BRACKET-FUSE 079867
23 SCREW-10-32X5/8 UN SL HWH 039382
24 RELAY A.-HEATSINK X72729
25 BLOCK-TERMINAL 3P 20A 300V 051331
* FUSE 7 AMP 079837-070
*NOT SHOWN
