Parts
McDonald's Intelligap Grills
Control A.-Switch - X72433 / X72433-INT (C842/C844)

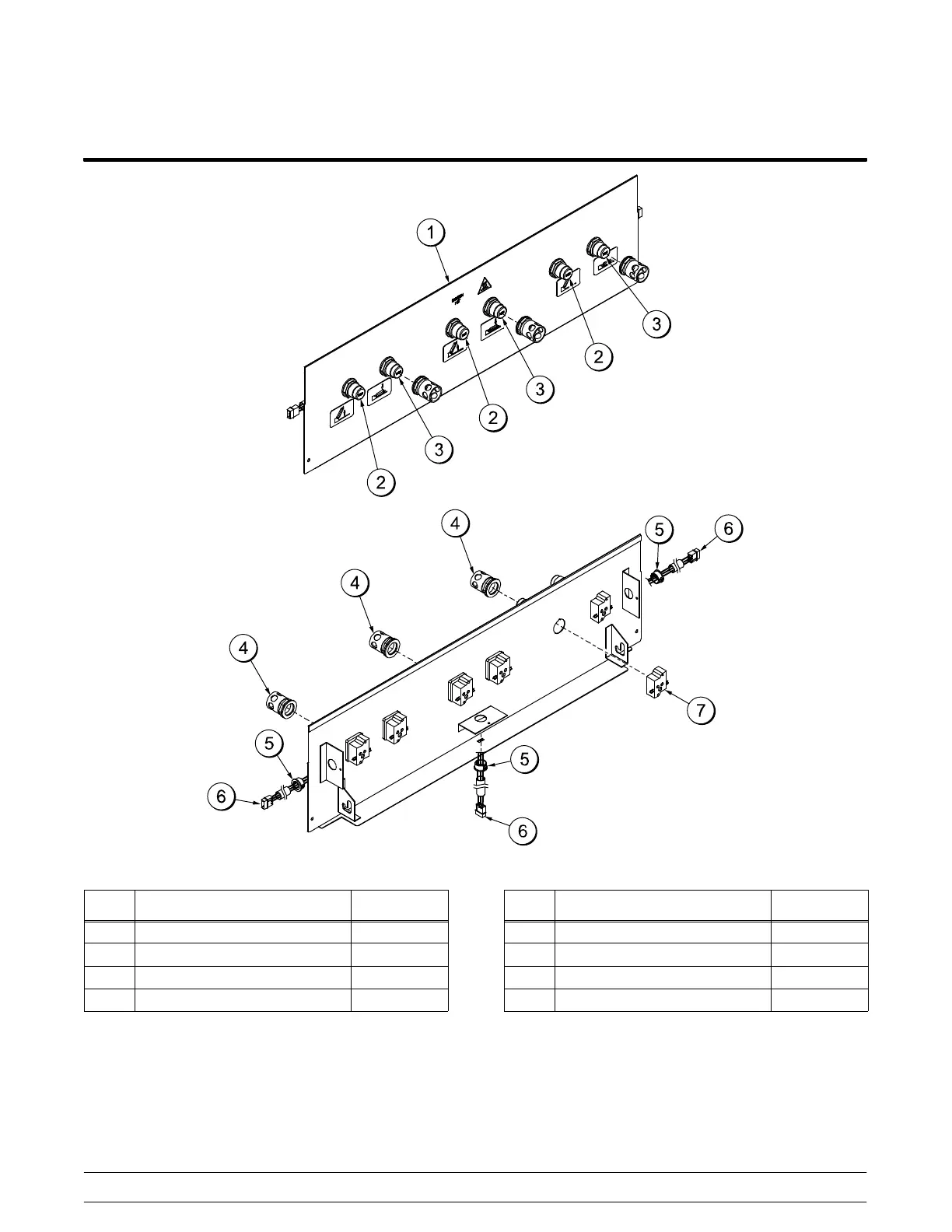

Figure 77
ITEM DESCRIPTION PART NO.
1 PANEL A.-LIGHT X72434
2 BUTTON-OPERATOR-RED 076011
3 BUTTON-OPERATOR-BLACK 076012
*4 GUARD-LENSE 075288
ITEM DESCRIPTION PART NO.
5 BUSHING-SNAP 11/16 ID X 7/8 010548
6 CONNECTOR-MATE LOCK-3 044823
7 BLOCK-CONTACT 1 NO 076013
** LABEL-CONTROL PANEL INTL 075699SYM3
*50 HZ EQUIPMENT, ONLY
**NOT SHOWN - 50 HZ EQUIPMENT, ONLY
