Controls and Systems
McDonald's Intelligap Grills

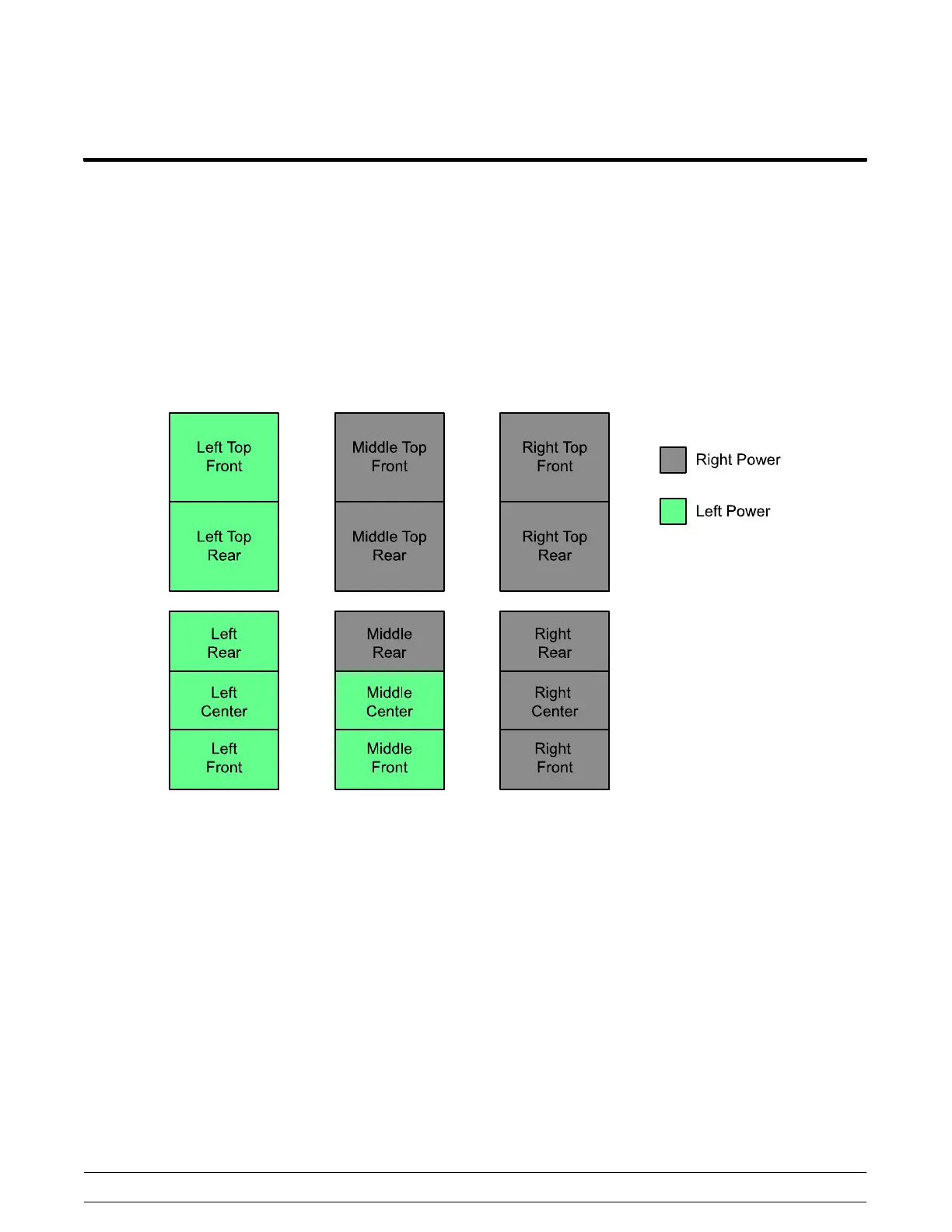

Electrical Power Distribution
The left high voltage powers the left upper platen,
the left lower plate, and the middle front and center
zones of the lower plate.
The right high voltage powers the right upper platen,
the right lower plate, the middle upper platen, and
the middle rear zone of the lower plate.
Figure 42
