163
McDonald's Intelligap Grills
Parts
140423

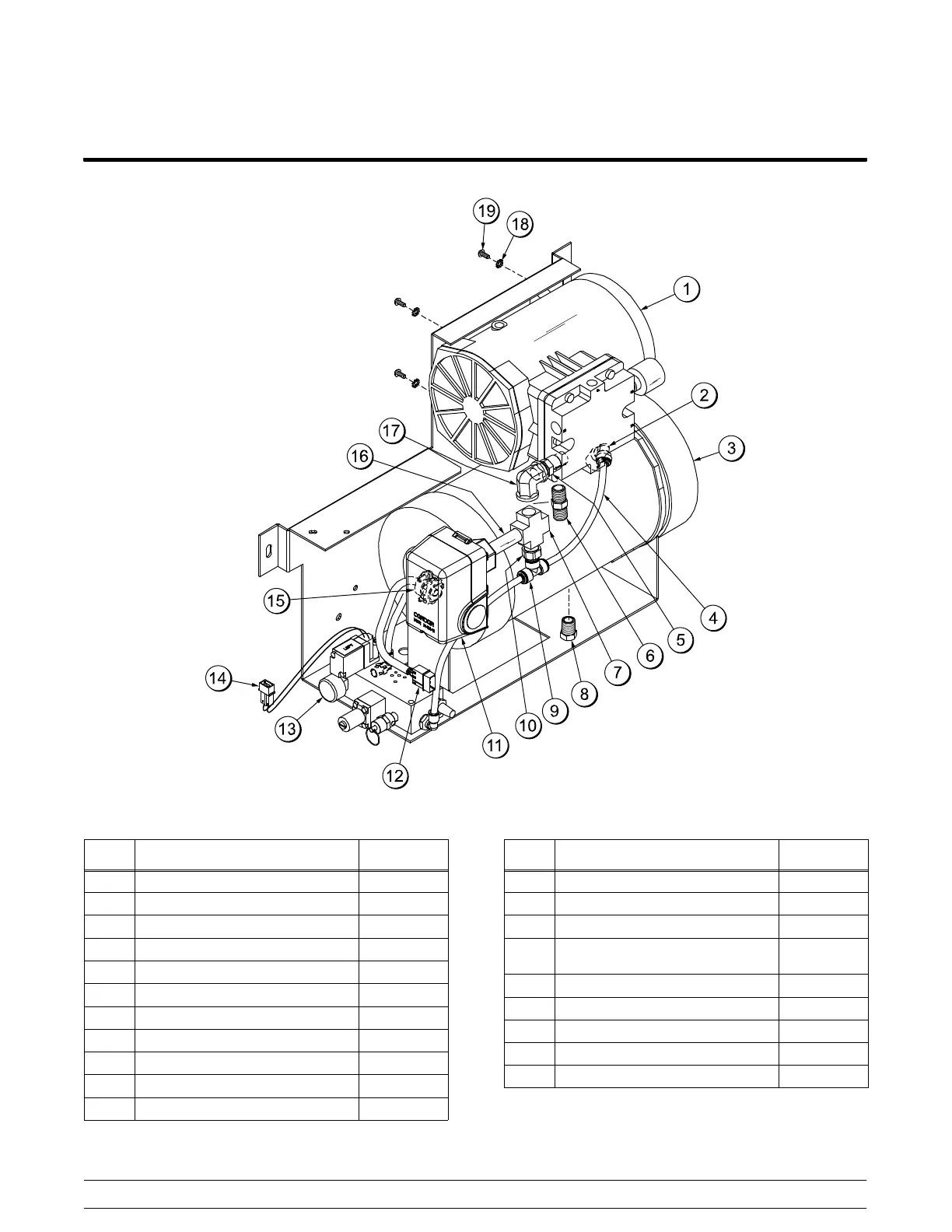

Compressor A.-Air - X83304-34 (C836 & C838)
Figure 99
ITEM DESCRIPTION PART NO.
1 COMPRESSOR-AIR 032129-27
2 FITTING-HI TEMP 1/4X1/4 OD 9 058771-2
3 TANK-ACCUMULATOR 10LB 078820
4 TUBE-.188 ID X .250 OD 058924-XX
5 VALVE-CHECK 1/4MP 020959
6 NIPPLE-1/4PT X 1-3/8 LG 029937
7 CROSS-1/4 FPT *1.44 SQ 077339
8 PLUG-1/4MP BRASS 027747
9 TEE-HI TEMP 1/4X1/4 OD 058770-2
10 ADAPTOR-HI TEMP 1/4X1/4 OD 058769-2
11 SWITCH-PRESSURE 240V,3HP 077879-C
ITEM DESCRIPTION PART NO.
12 CONNECTOR-MATE LOCK-3 044823
13 MANIFOLD A. 073129-R
14 CONNECTOR-MATE LOCK-2 044821
15 CONNECTOR-BX 3/8 STR-
2 SCREW
014569
16 NIPPLE-1/4 X 3 BRASS 035916
17 ELBOW-1/4 X 1/4FPT-BRASS 012428
18 WASHER-#8 EXT TOOTH LOCK 000964
19 SCREW-8-32X3/8 SLTD ROUND 007544
* VARISTOR A.-230VAC W/#10 SP X51733-C
*NOT SHOWN
