Taymor Concierge 300 - Installation; Latch Backset Adjustment

INSTALLATION
1a

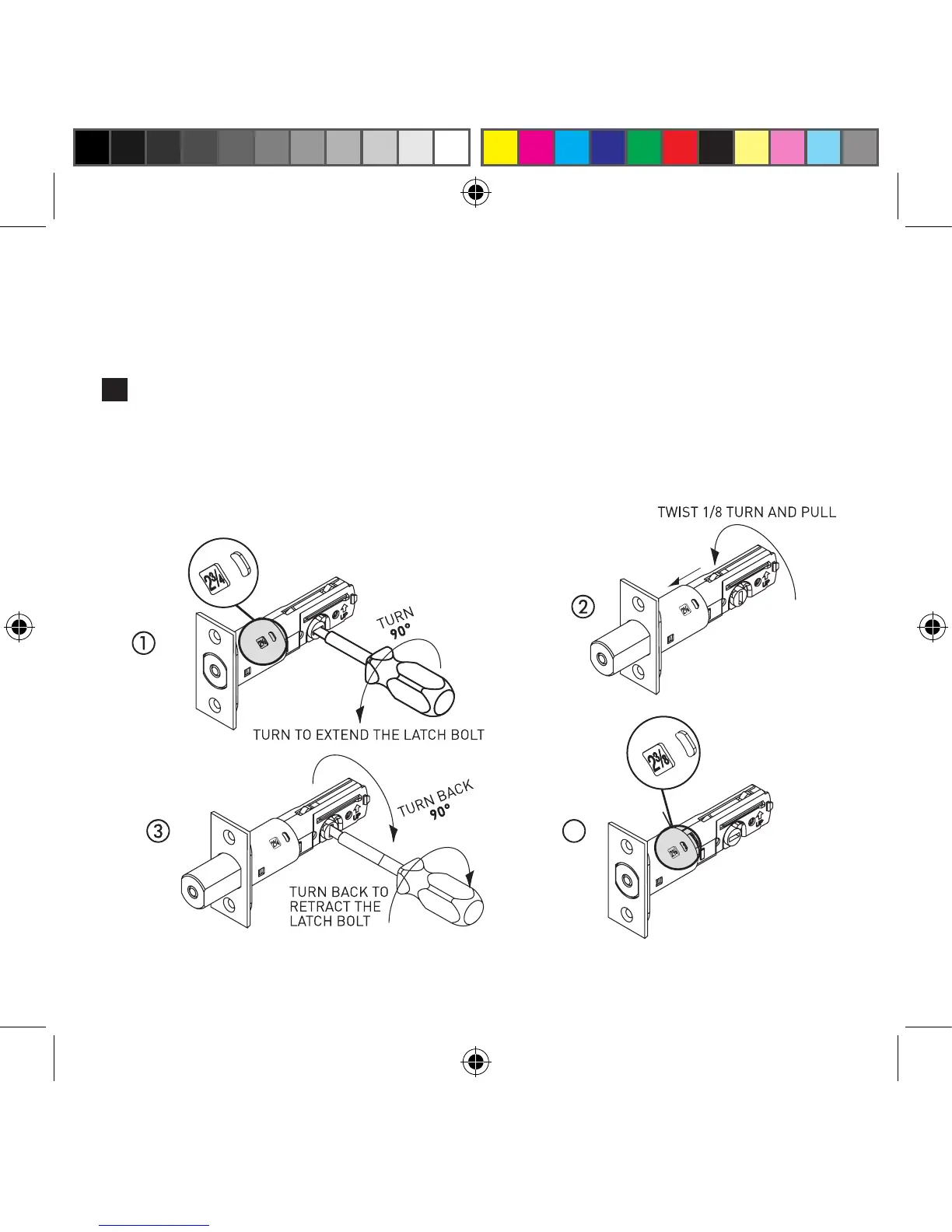

LATCH BACKSET ADJUSTMENT
Latch backset adjustment only needs to be made if your door needs
a 2-3/8” (60 mm) backset. Please follow diagrams below as reference.
Skip this if your door has a 2-3/4” (70 mm) backset
