Taymor Concierge 300 - Components of Electronic Keypad Deadbolt

3 ® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.

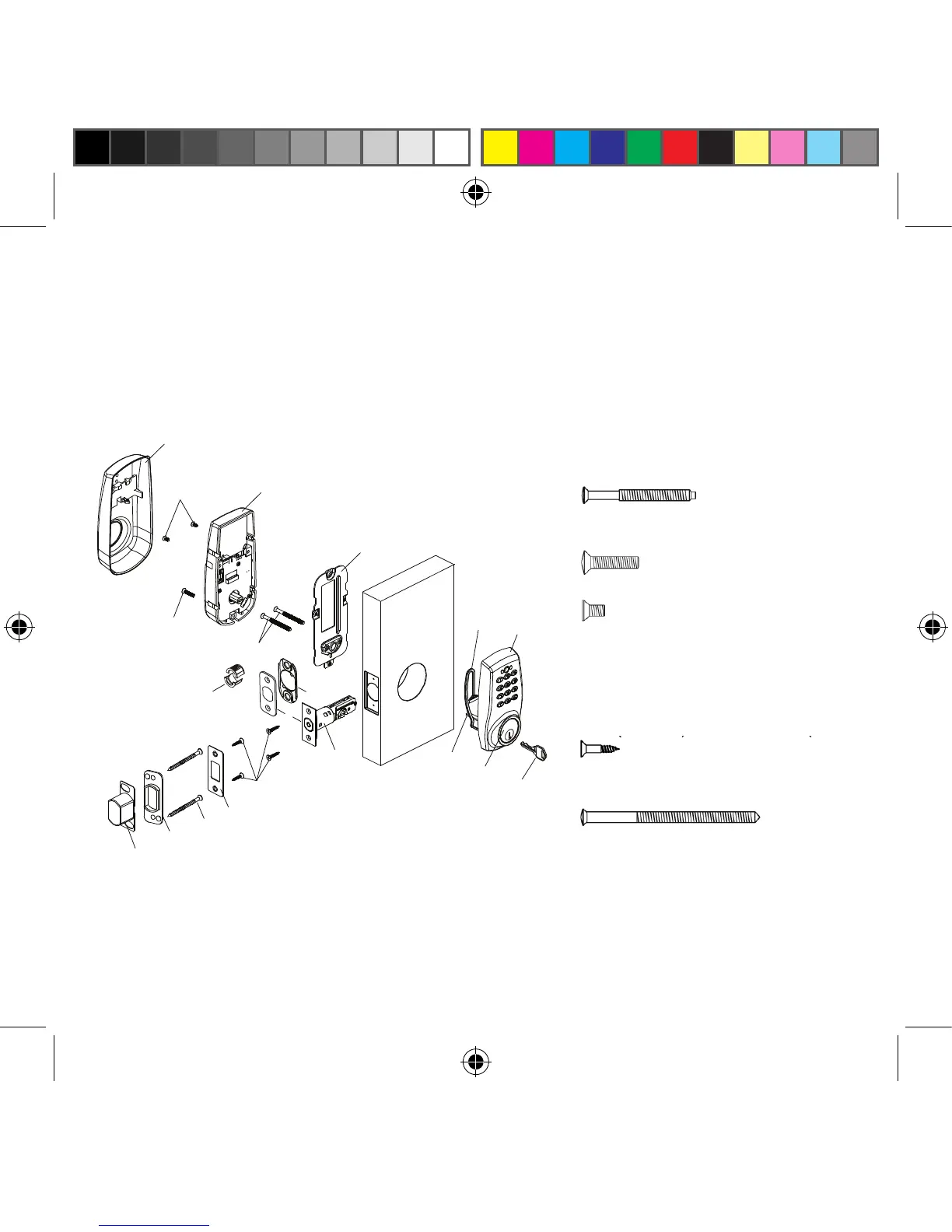

COMPONENTS OF
ELECTRONIC
KEYPAD DEADBOLT
B
D
E
L
N
F
G
H
I
J
K
C
A
R
Q
M
T
S
P
O
A. Key (2)
B. Exterior Assembly
C. Cylinder
D. Power Strip
E. Cylinder Torque Blade
F. Mounting Plate
G. 2-1/8” (54 mm) Mounting Bolt (2)
H. Interior Assembly
I. 13/16” (20 mm) Screw (1)
J. 5/16” (7.8 mm) Screw (2)
K. Interior Cover
L. Latch (Square or radius faceplate
or drive-in)
M. Drive-in Collar (Optional)
N. 3/4” (19 mm) Wood Screw (4)
O. Strike Plate
P. 3” (76 mm) Wood Screw (2)
Q. Reinforced Strike Plate
R. Dust Box
S. Mortise Back Plate (Optional)
T. Square or Radius Mortise Face
Plate (Optional)
