23
(this resets any supplies connected to the multi-drop bus)
C. Save (see section 7.7.3)
(this saves the settings for only the supply selected in the RS-485 listbox)
D. Recall (see section 7.7.4)
(this recalls the settings for only the supply selected in the RS-485 listbox)
5.4.5. DC Power ‡ Utility Page
This page is used to send any SCPI command and see the response. It is a learning tool
for SCPI operation and it allows commands which are otherwise not on the web pages. The
SCPI commands are described in section 7
After logging in (see section 5.3), type any SCPI message into the top text box. Then click
the “Send and Read” button.
For commands, there is no response. For queries, the response is shown in the middle text
box
You may read any System Error message (see section 7.8.1) by clicking the “Read Errors”
button. The error message (or “No error”) will show in the bottom text box
5.5. LAN PAGE
When the “LAN” tab is clicked, the following web page opens. This page, and it’s sub-pages,
allow you to view and configure the power supply’s LAN settings
5.5.1. LAN ‡ Configure Page

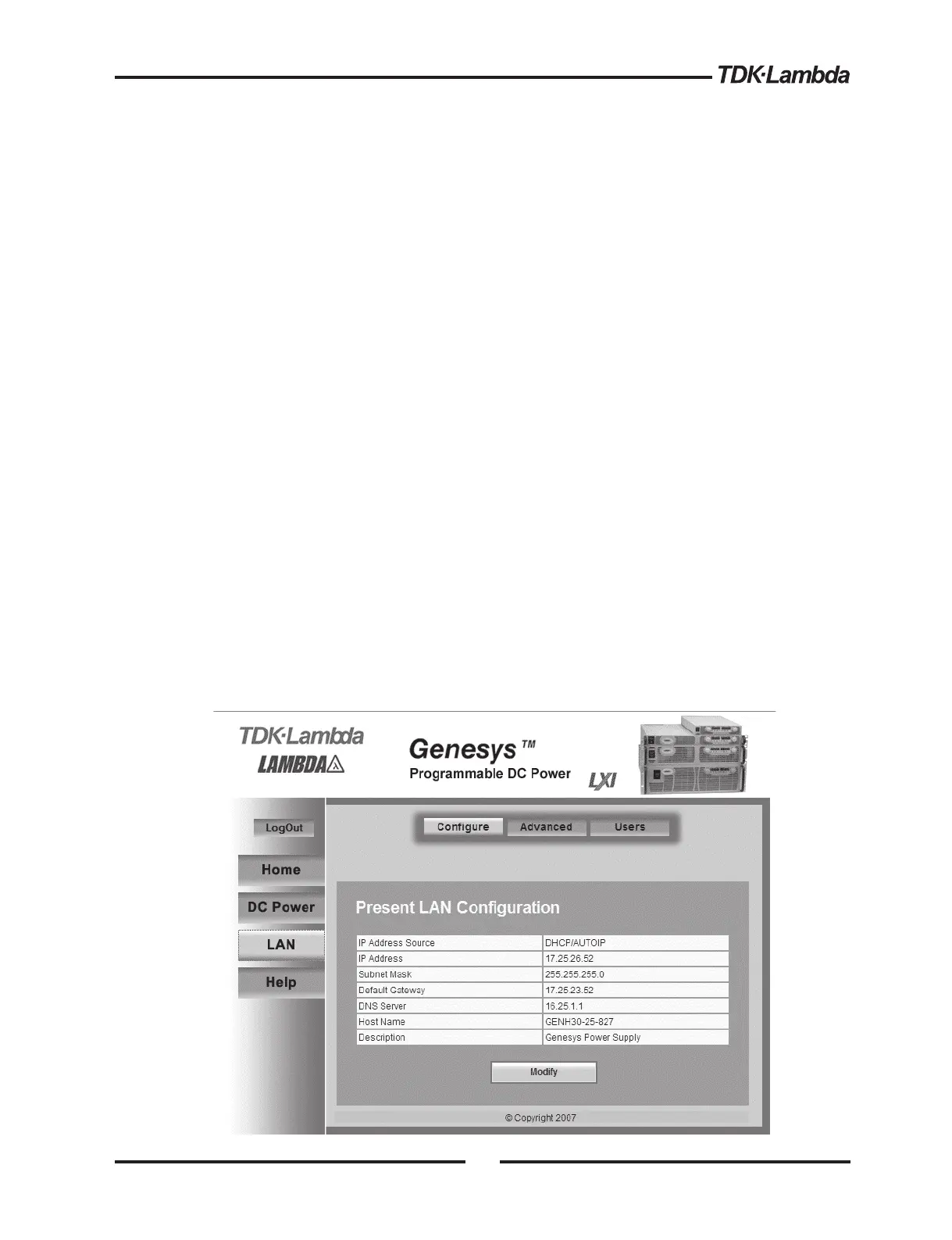

When the “LAN” tab is selected, three buttons show across the top of the panel. Click the
“Configure” button to open the panel below. This panel shows the basic LAN settings
There is no “Select RS-485 Multi-drop Address” listbox for the LAN pages because the LAN
settings do not apply to any of the multi-drop power supplies
