48

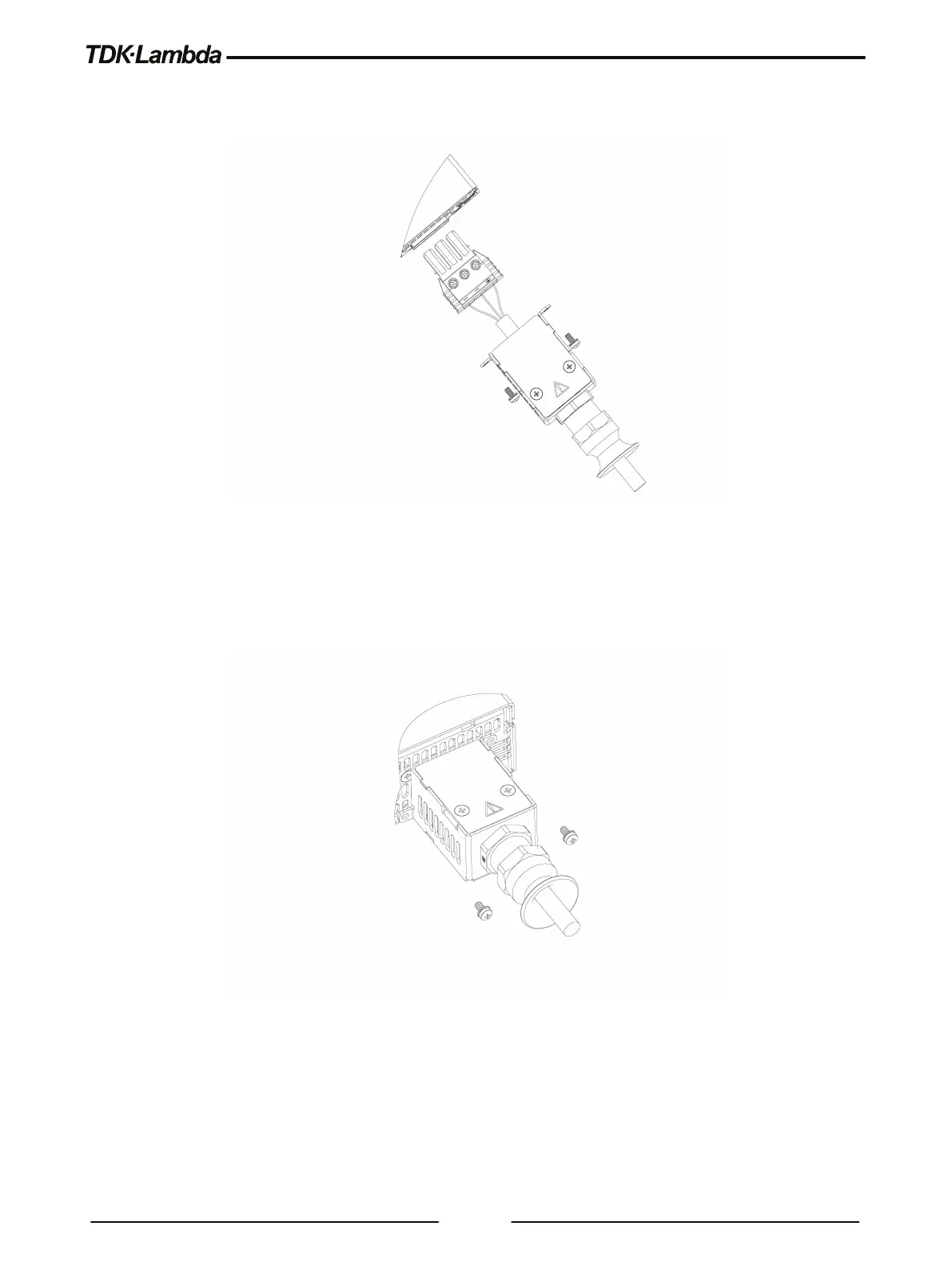

6. Insert the AC wires into the AC input connector as shown in Figure 4-16.
7. Tighten the screws, tightening torque: 4.5-5.3 Lbf-inch. (0.5-0.6Nm).
Figure 4-16: AC Wires Fixed to the AC Connector
8. Fix the strain relief release assembly to the rear panel with two M3x8 Sems screws as shown in
Figure 4-17. The Sems screws are supplied in the accessories kit. Tightening torque: 4.7-5.7 Lbf-
inch. (0.53-0.64Nm).
Figure 4-17: Strain Relief Assembled to Power Supply Rear Panel
9. Close (by manual force) the cable gland conic entry part until the AC cable is tightened. Beware
not to apply excessive force.
