4.1.2 Inserting the Media into the Printhead
4
1
5
32
67

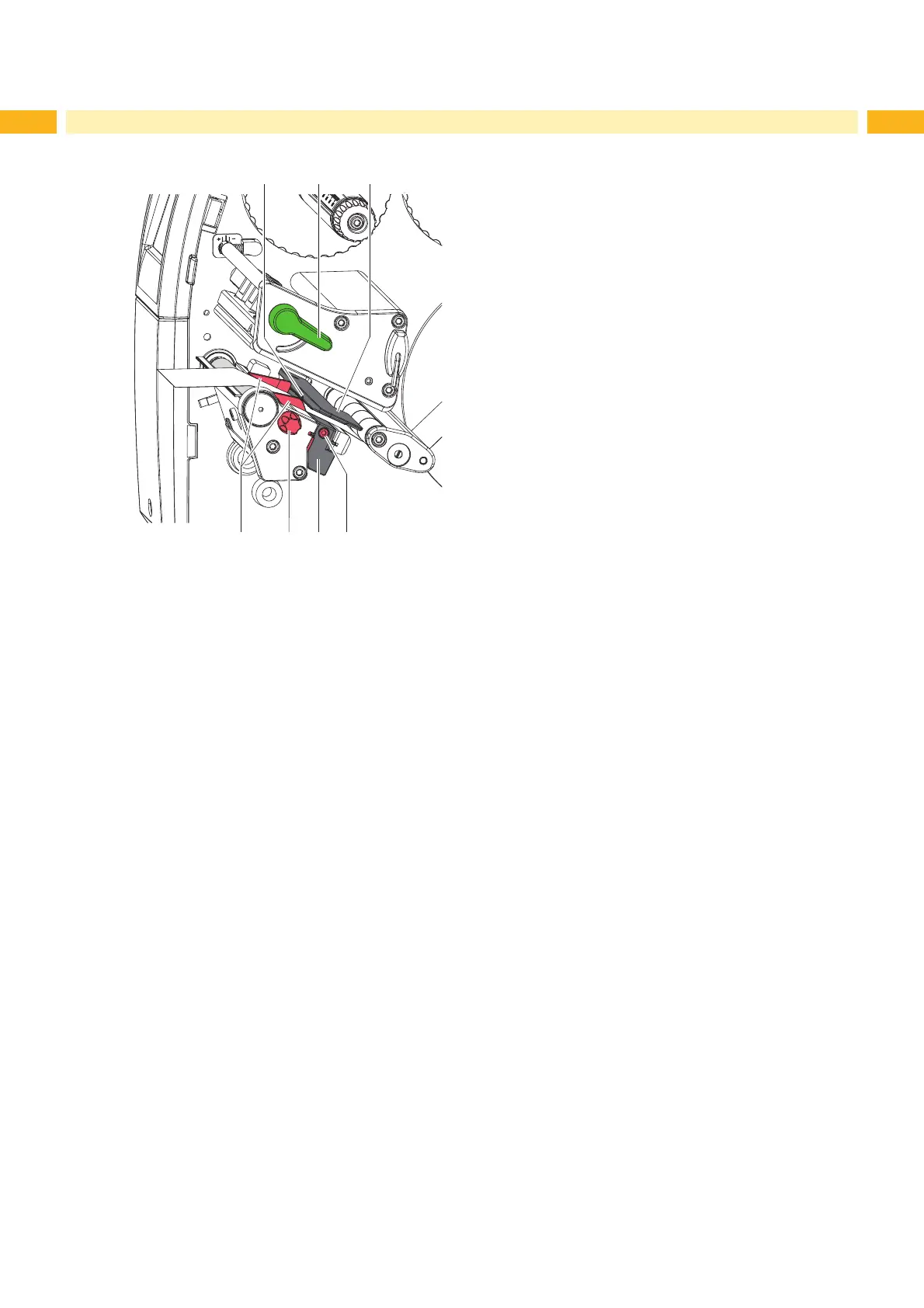

Fig. 11 Inserting the labeling material into the printhead
1. Turn lever (2) counterclockwise to lift the printhead.
2. Adjust the guides (7) with the knob (6) ensuring the media can pass between the two guides.
3. Guide the label strip through the label sensor (3) so that the media exits the print unit between the printhead and
the print roller.
4. Adjust guides (7) against the edges of the material by turning the knob (6).
4.1.3 Setting the Label Sensor
7KHODEHOVHQVRUFDQEHVKLIWHGSHUSHQGLFXODUWRWKHGLUHFWLRQRISURGXFWÀRZIRUDGDSWDWLRQRIWKHPHGLDVL]HV7KH
sensor unit (1) of the label sensor is visible from the front through the print unit and is marked with an indentation in
the label sensor retainer. When the printer is switched on, a yellow LED illuminates the sensor position.
X Loosen screw (4).
X 3RVLWLRQODEHOVHQVRUZLWKWDELQVRWKDWWKHVHQVRUFDQGHWHFWWKHODEHOJDSRUDUHÀH[RUSHUIRUDWLRQPDUN
X Alternatively, if the labels are not of a rectangular shape, align label sensor using the tab (5) with the front edge of
WKHODEHOLQWKHGLUHFWLRQRISDSHUÀRZ
X Tighten screw (4).
For use in tear-off mode only:
X Turn lever (2) clockwise to lock the printhead.
The labels are loaded for use in tear-off mode.
