2 Installation
2.1 Device Overview
3
5
6
7
4
1
8
2
10
9
1 Printer cover
2 Inner margin stop
3 Outer margin stop
4 Roll retainer
5 Ribbon supply hub
6 Ribbon take-up hub
7 Print unit
8 Front cover
9 Touchscreen
10 LED "Power on"

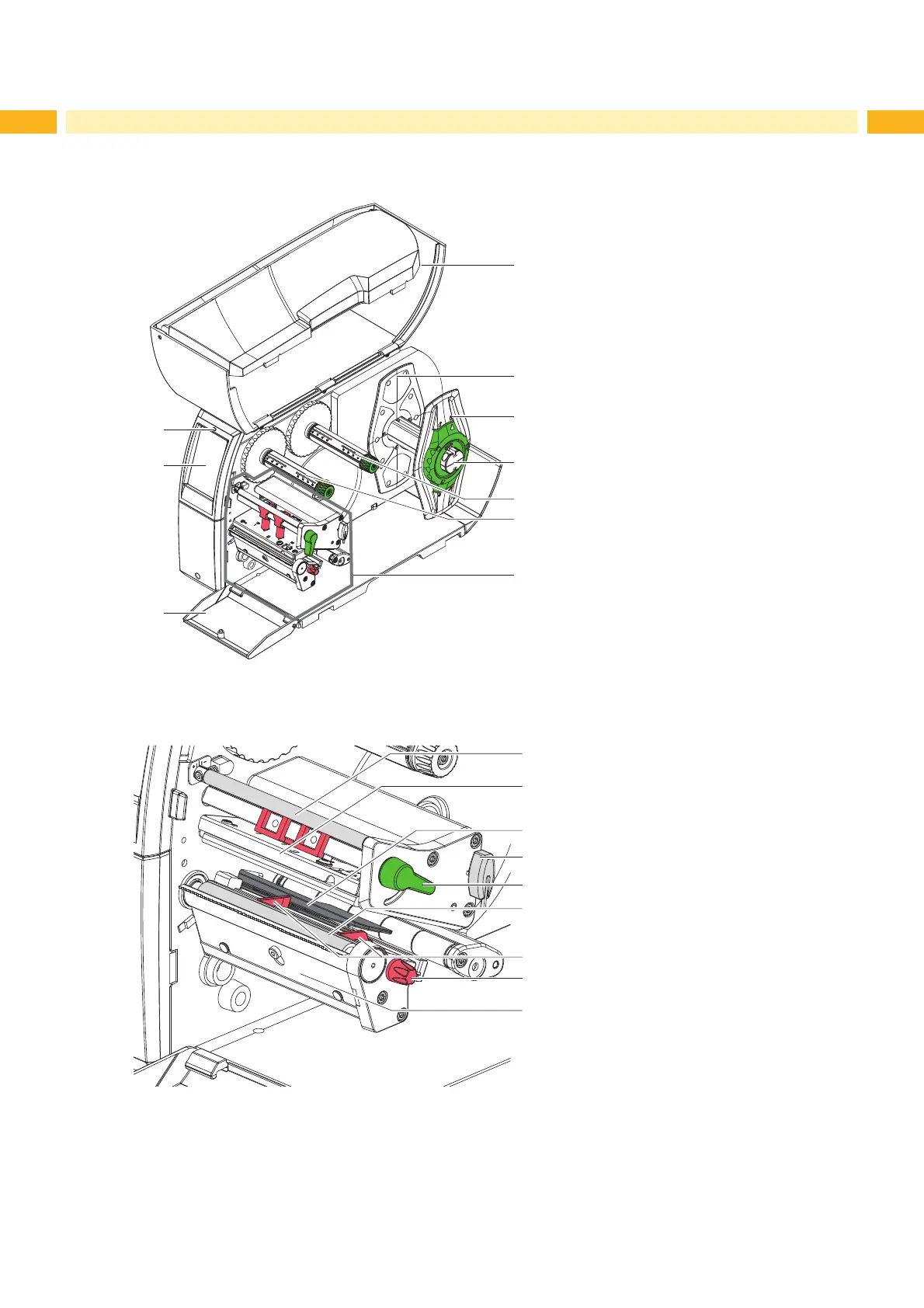

Fig. 1 Overview
12
13
18
17
15
11
14
16
19
11 5LEERQGHÀHFWLRQ
12 Printhead retainer with printhead
13 Label sensor
14 Allen key
15 Printhead locking lever
16 Print roller
17 Guide
18 Guide adjustment knob
19 Tear-off plate
Fig. 2 Print unit
