3 Touchscreen
The user can control the operation of the printer via the control panel, for example:
• Issuing, interrupting, continuing and canceling print jobs.
• 6HWWLQJSULQWLQJSDUDPHWHUVHJKHDWOHYHORIWKHSULQWKHDGSULQWLQJVSHHGLQWHUIDFHFRQ¿JXUDWLRQODQJXDJHDQG
date and time.
• Control stand-alone operations with a memory module.
• 8SGDWHWKH¿UPZDUH
Many functions and settings can also be controlled by software applications or by direct programming with a
computer using the printer’s own commands.
Settings made on the touchscreen display set the basic settings of the printer.
i
Note!
It is advantageous, whenever possible, to make adjustments to various print jobs in the software.
3.1 Start Screen

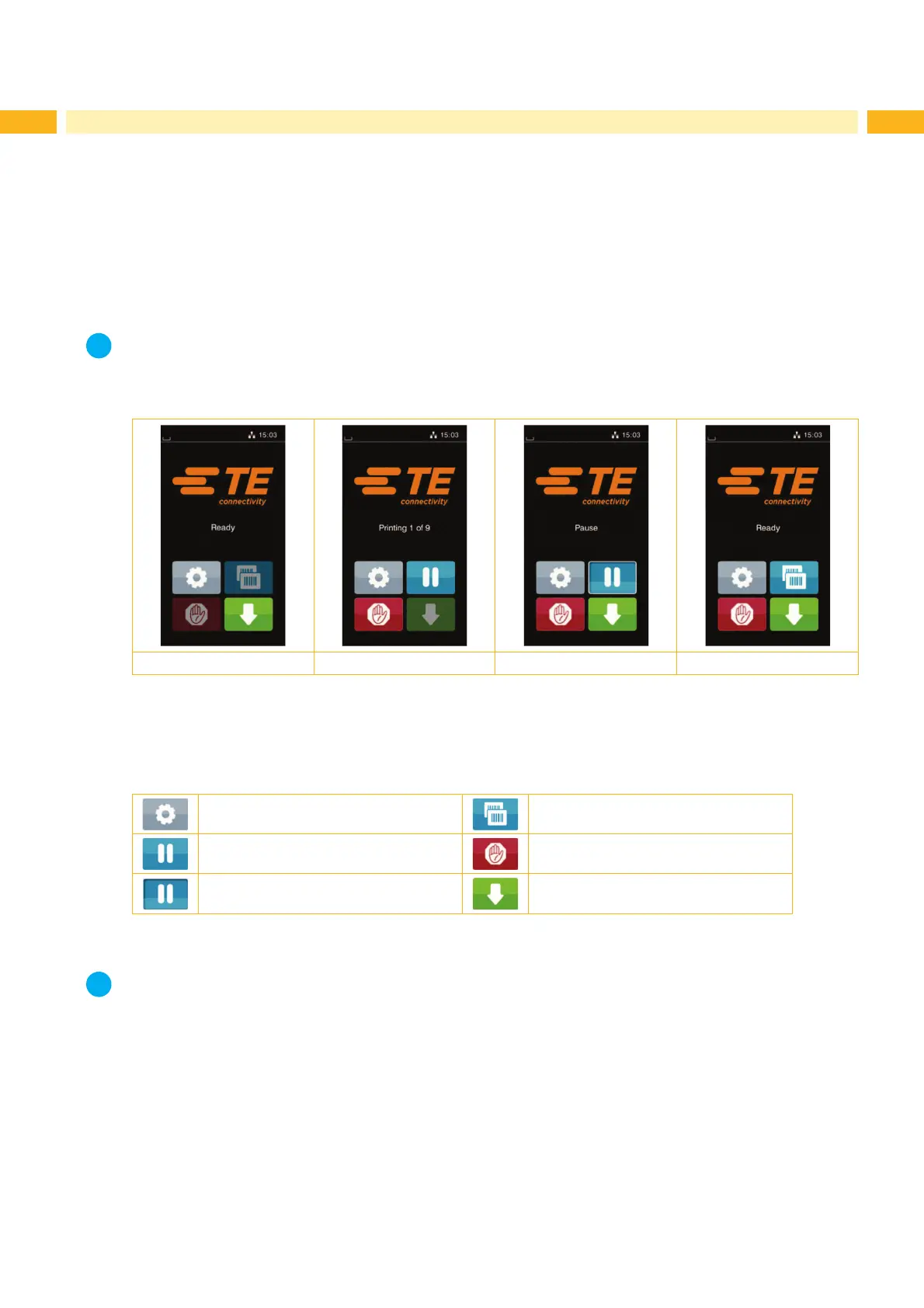

After switching on During printing Paused state After print job
Fig. 5 Start screen
The display is operated by touch:
• To open a menu or select a menu item lightly press on the corresponding symbol.
• 7RVFUROOLQOLVWVVOLGHD¿QJHUXSRUGRZQRQWKHGLVSOD\
Open the menu Repeat the last label print
Interrupt the print job Cancel all print jobs
Continue the print job Feed a blank label
Table 1 Symbols on the start screen
i
Note!
Inactive symbols are greyed out.
