4.5 Setting the Feed Path of the Transfer Ribbon
7UDQVIHUULEERQZULQNOLQJFDQOHDGWRSULQWLPDJHHUURUV7KHWUDQVIHUULEERQGHÀHFWLRQFDQEHDGMXVWHGWRSUHYHQW
wrinkling.
i
Note!
A maladjustment of the head locking system may also cause ribbon wrinkling (Z 4.3 on page 16).
1
2
3

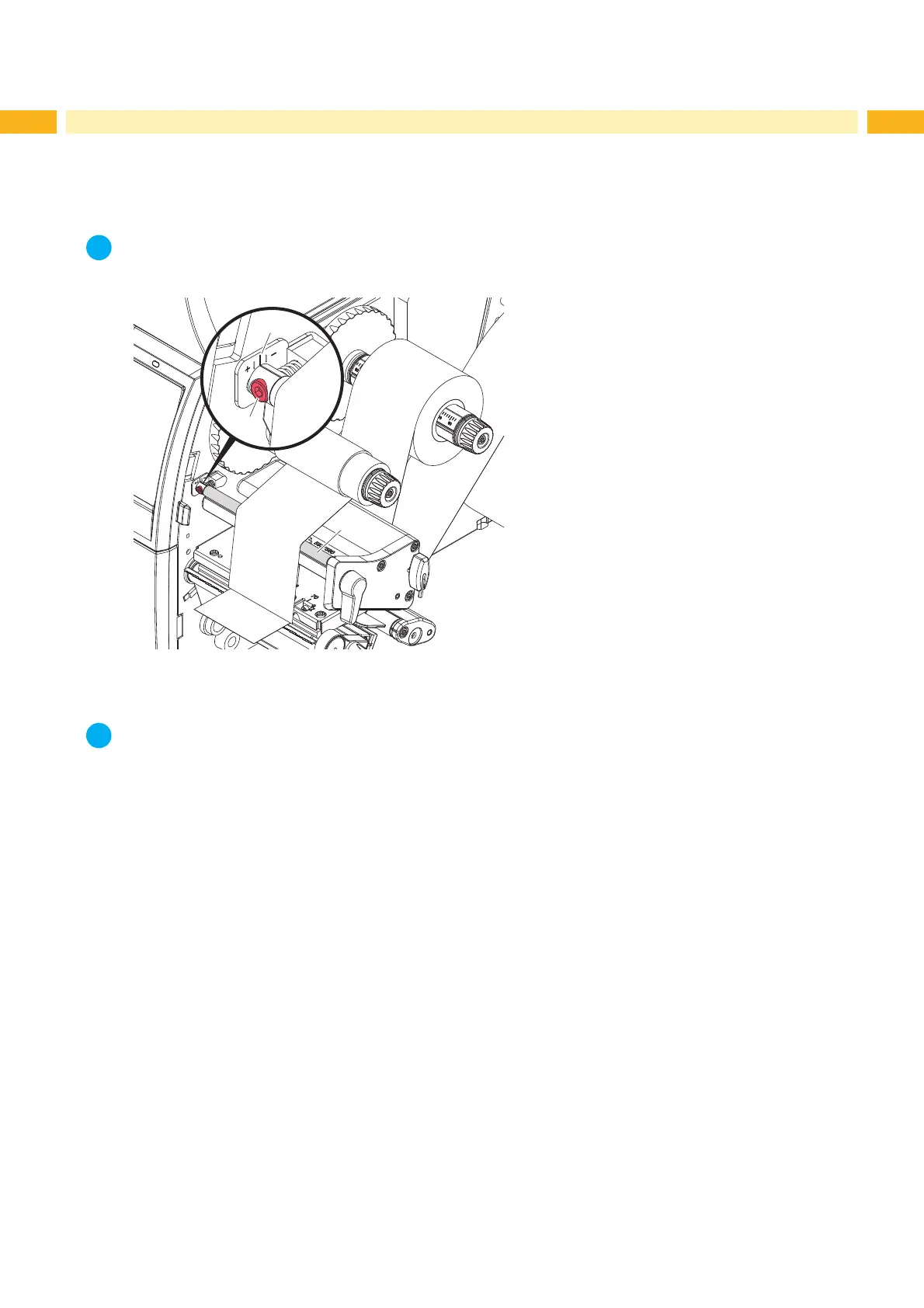

Fig. 16 Setting the feed path of the transfer ribbon
i
Note!
The adjustment is best carried out during printing.
X Read current setting on the scale (1) and record if necessary.
X Turn screw (2) with Allen key and observe the behavior of the ribbon.
In the + direction, the inner edge of the ribbon is tightened, the - direction tightens the outer edge.
