4.3 Setting the Head Locking System
The printhead is pushed on via two plungers (1). In the basic setting the plungers are in the middle of the printhead
retainer. This setting is suitable for most applications.
1 2
3
1
3

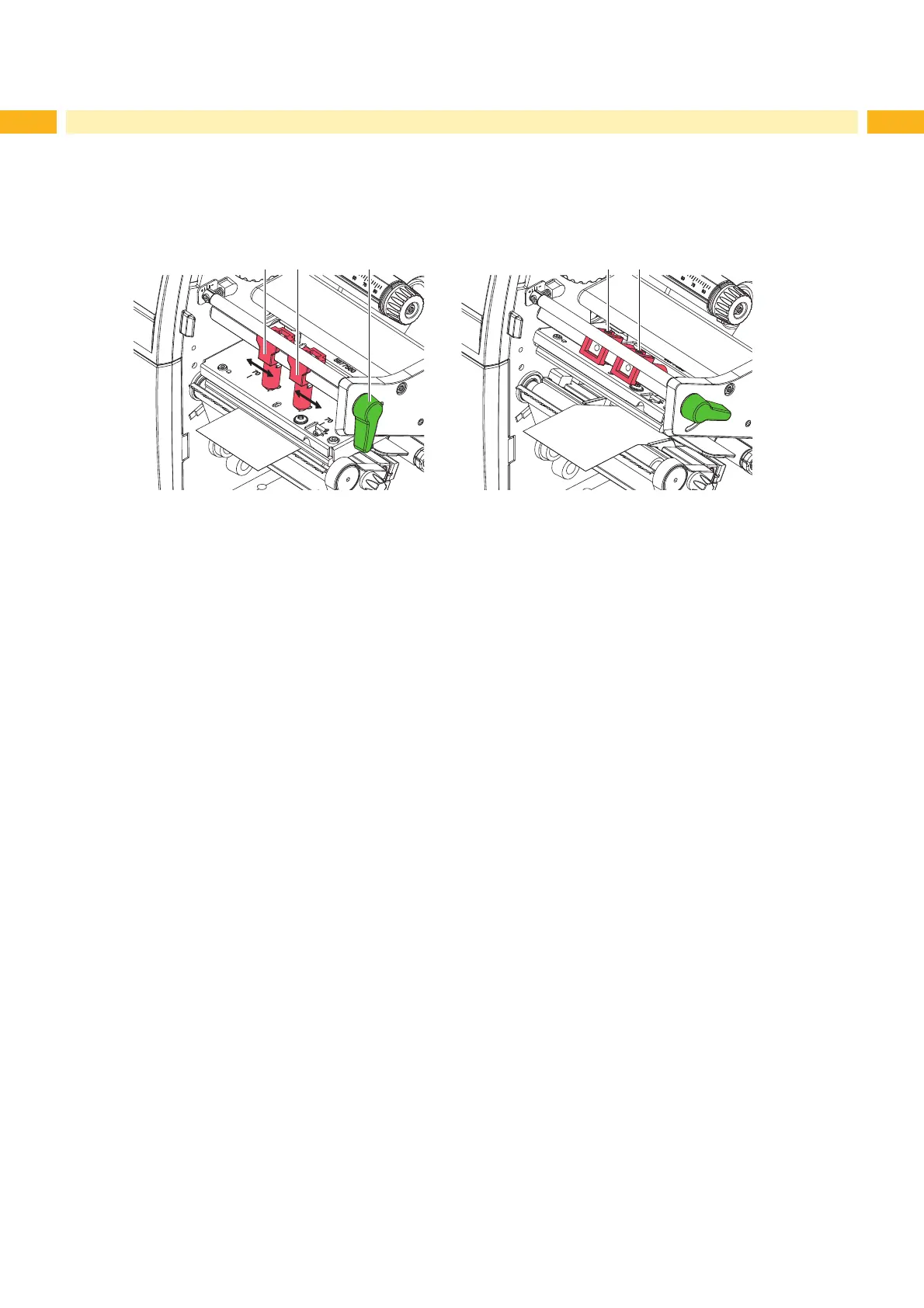

Fig. 13 Setting the head locking system
If the print density decreases in the outer areas of the label, when using larger media, the plungers can be moved:
X Loosen threaded pins (3) of the plungers (1) with an Allen key.
X Turn lever (2) clockwise to lock the printhead.
X Displace plunger towards the scale value 70.
X Tighten the threaded pins (3).
