Specifications
General
System . . . . . . . . . . . . . . . . . DVD-Video, DVD-Audio, DVD-R/RW,
Video-CD, SACD, CD and MP3 files
Power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC120V, 60Hz
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 W
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.2 kg (46-11/16 lbs)

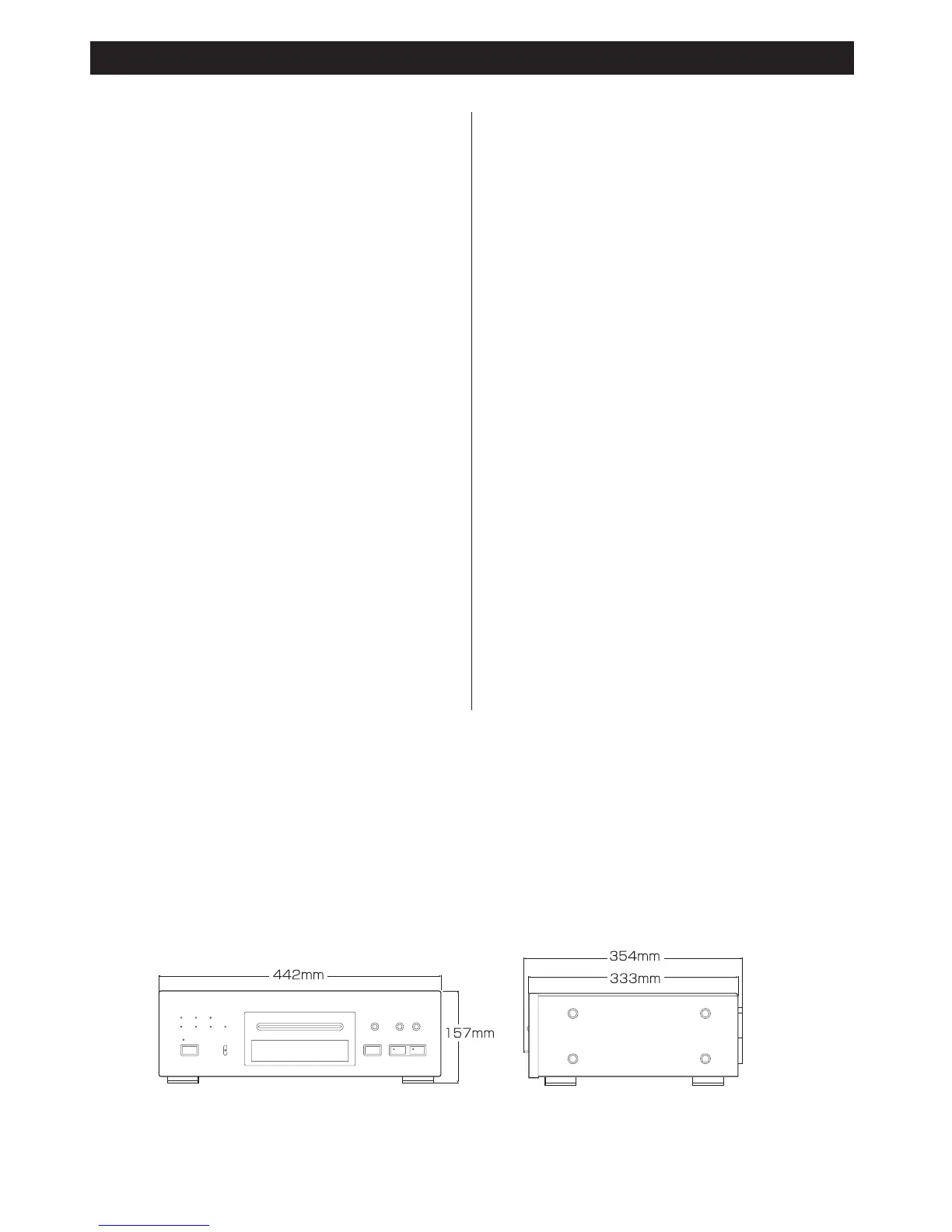

External dimensions (W x H x D). . . . . . . . . . . 442 x 157 x 354 mm
(17-3/8" x 6-3/16" x 13-15/16")
Operating temperature . . . . . . . . . . . . . +5˚C ~ +35˚C (40˚F ~ 95˚F)
Operating humidity . . . . . . . . . . . . . 5% to 85% (no condensation)
Storage temperature. . . . . . . . . . . . . . -20˚C ~ +55˚C (-4˚F ~ 131˚F)
Video Output
S-Video output (S1/S2)
Y (luminance) - Output level. . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω)
C (color) - Output level. . . . . . . . . . . . . . . . . . 286 mVp-p (75 Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-VIDEO jack
Video output (2 individual outputs)
Output level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Vp-p (75 Ω)
Jacks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jack
Component video output (Y, P
B, PR)
Y-Output level . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 Vp-p (75 Ω)
P
B, PR-Output level . . . . . . . . . . . . . . . . . . . . . . . 0.7 Vp-p (75 Ω)
Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA jacks
D1/D2 video output
Y-Output level . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 Vp-p (75 Ω)
P
B, PR-Output level . . . . . . . . . . . . . . . . . . . . . . . 0.7 Vp-p (75 Ω)
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D terminal
Audio output (Analog Audio)
2CH AUDIO OUT . . . . . . . . . . RCA jack x2, 2.2 Vrms (1 kHz, 0 dB)
5.1CH AUDIO OUT. . . . . . . . . RCA jack x1, 2.2 Vrms (1 kHz, 0 dB)
High Quality 2CH AUDIO OUT (XLR x1, RCA jack x1)
RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 Vrms/47kΩ (0dB)
XLR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 Vrms/600Ω (0dB)
Frequency response . . . . . . . . . . . . . . . . . . . . 5Hz ~ 80 kHz (-3dB)
Dynamic range (1 kHz). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 dB
Total harmonic distortion (1 kHz). . . . . . . . . . . . . . . . . . . . . 0.001%
Crosstalk (1 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 dB
Audio output (Digital Audio)
OPTICAL . . . . . . . . . . . . . . . . Optical digital jack x 1, -15~-21 dBm
COAXIAL . . . . . . . . . . . . . . . . . . . . . . . RCA jack x 1, 0.5 Vp-p/75 Ω
Accessories
Power cord x 1
Remote Control Unit (RC-908) x 1
Batteries (AA, SUM-3) x 2
Felt x 3
Warranty card x 1
Owner's manual x 1
<
Design and specifications are subject to change without
notice.
<
Weight and dimensions are approximate.
<
Illustrations may differ slightly from production models.
