Stand and wall-mounted (optional)
Your LCD TV is able to accommodate wall mounting with the use of a wall mount bracket (not supplied
with LCD TV, please contact your local hardware store) and the mounting holes on the back of the unit.
We recommend removing the TV stand prior to wall mounting the TV. Please refer to the figure and the
procedure below.
How to remove/re-install the stand
Follow instructions below to remove the base of the TV:
1. Place the unit (face down) on a soft blanket.
2. Loosen and remove the 7 screws securing the stand to the
TV set, as per the diagram to the right.
3. Gently remove the stand.
4. To re-install the stand, place the unit (face down) on a soft blanket and reverse instructions as above.
How to mount the LCD TV on the wall

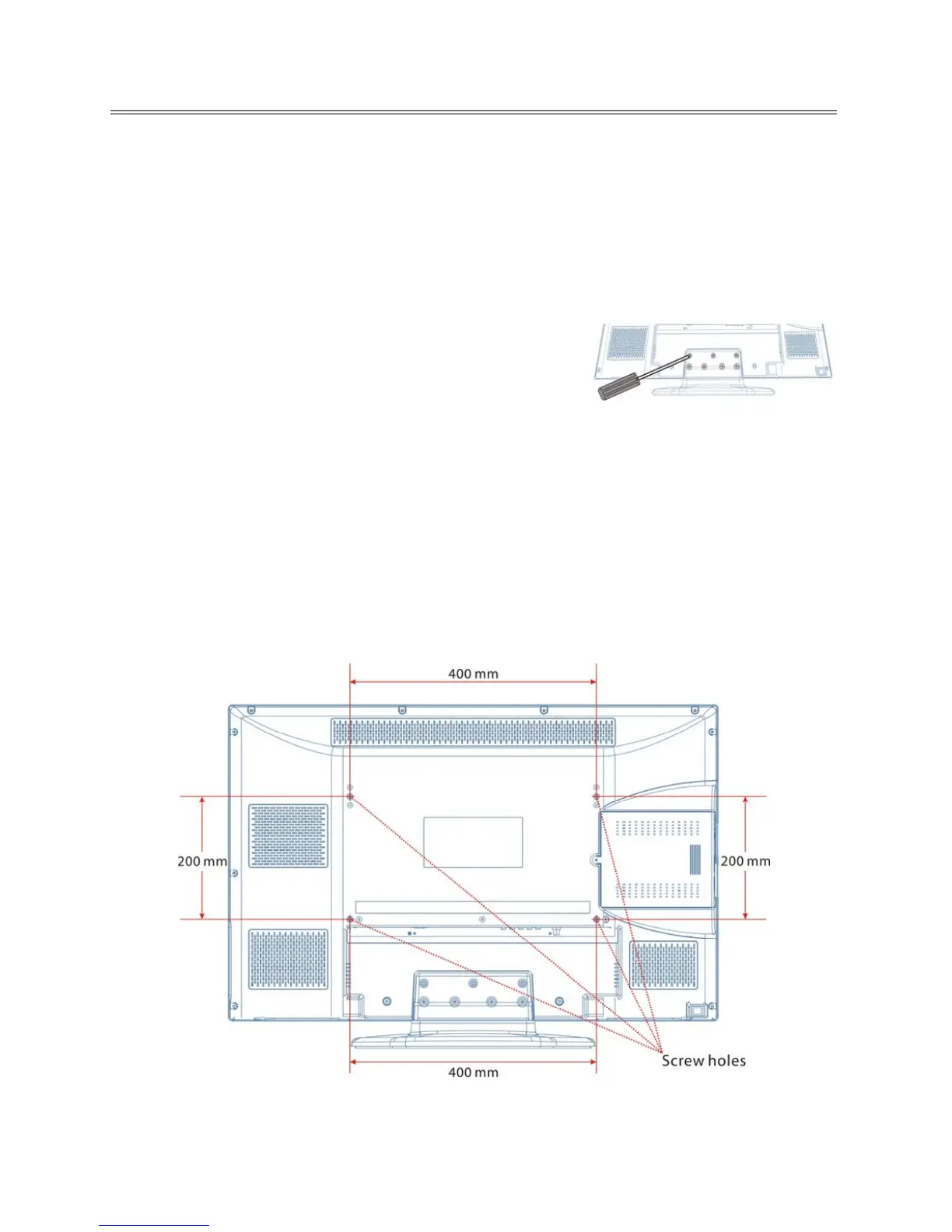

1. After detaching the stand, fasten 4 mounting screws (thread size M5X10 - not supplied! Please
contact your local hardware store) into the 4 screw holes on the rear cover, see the figure below.
2. Fasten wall mounting bracket (Not supplied with LCD TV, please contact your local hardware store)
with screws on the wall.
3. Carefully check for the strength before releasing the LCD TV.
NOTE: For more detailed instructions please refer to your “after market” wall mounting instruction book.
Thread hole size – M5 x 10 depth (TV mounting screw size) on the TV.
