20
System Connections
Connecting to an External AV Signal Source (HDMI)

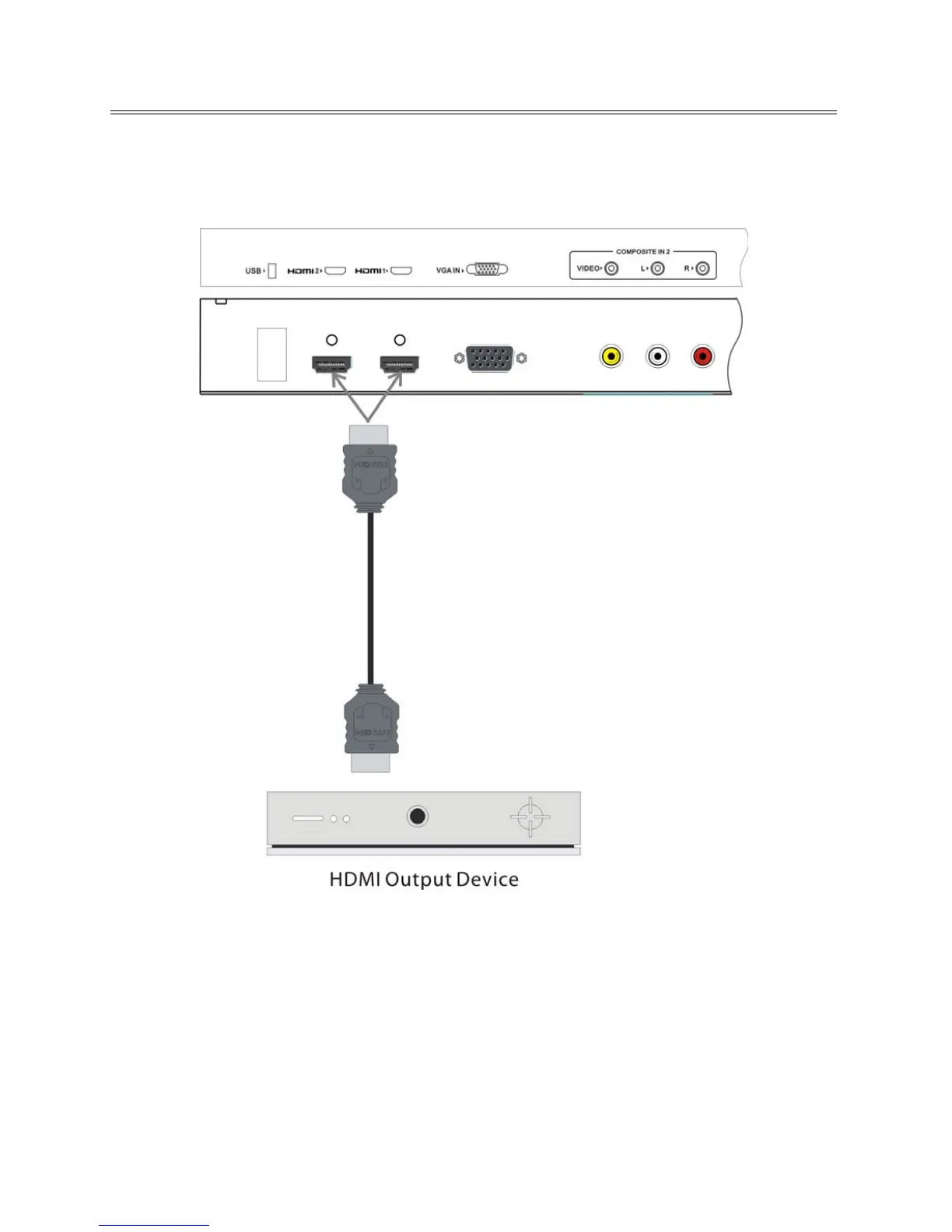

Follow the figure below to connect an HDMI signal source to one of the HDMI jacks on the rear panel of
the unit.
After connection, turn on the power of the unit and the external AV signal source. Press INPUT then
direction buttons to select HDMI 1 or HDMI 2 mode, and then press the ENTER button to confirm.
HDMI provides both audio and video signals and typically provides superior image quality to
Component, S-Video or Composite.
