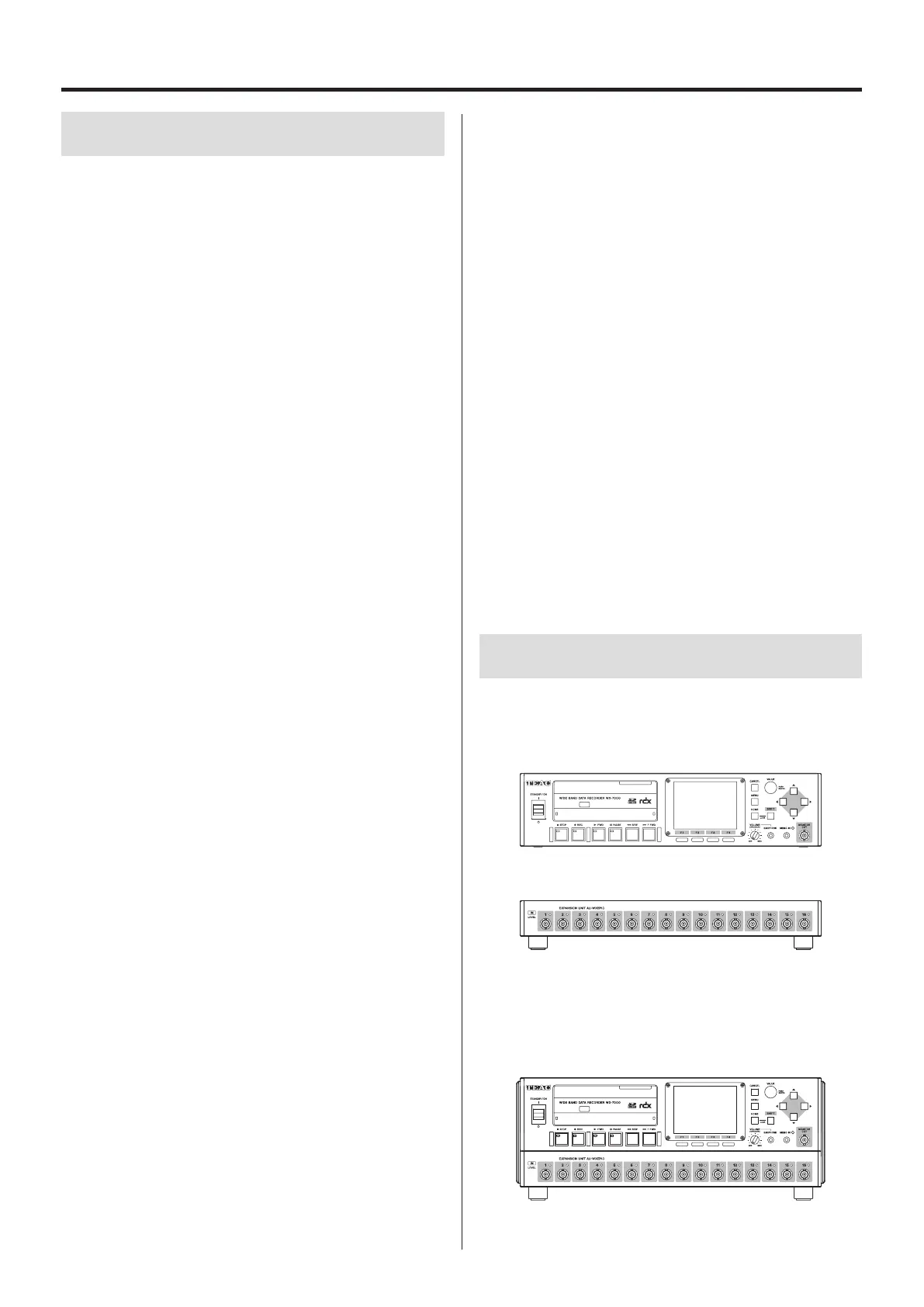

6
1. Introduction
1-4.
Features
o Wideband, high-resolution, multichannel stand-alone data
recorders that can record 16-bit/16-channel or 24-bit/8-channel
data in frequency bands up to DC 80 kHz
o Wide dynamic range realized using 24-bit analog to digital
conversion
o Two recording media types: RDX cartridges and SDHC cards
RDX cartridges with hard disk drives (HDD) have high capacities
that provide long continuous recording times.
RDX cartridges with solid-state drives (SSD) have greater resis-
tance to vibrations and shocks.
SDHC cards provide increased media accessibility.
o One system that combines one WX-7000 with eight AU-WXEPIO
expansion units can record up to 128 channels
o Two systems can be synchronized, allowing up to 256 channels
of recording
o High-speed data transmission with computers is possible using
Gigabit Ethernet
o WX Navi waveform display software included
o TAFFmat data format used
o Easy-to-read 320x240 3.5-inch TFT color display
o Graphical interface designs enables intuitive operation
o Voice memo recording and playback
o Stopping and starting recording and playback possible using
external contact inputs
o Additional convenient functions include trigger recording and
audio playback of recorded voice memos
o Synchronized AQ-VU video recording with 4-channel camera
possible
o Files are saved regularly, preventing data loss due to unexpected
power interruptions
o Power outage signals from an uninterruptible power supply (UPS)
can trigger the system to conduct recording conclusion proce-
dures to prevent data loss
o Panel lock function prevents accidental operation
o Analog input circuit offset and gain correction
o DC input and ICP sensor input can be used for analog input
o Analog input level monitoring LEDs
o Power supplied to ICP sensors can be switched between DC 24 V
and DC 28 V for all 16 channels at once.
o Constant current to each ICP sensor channel can be switched
between 0.5 mA and 4 mA.
o Signal line interruption detection for each channel when using
ICP input sensors
o Reads ICP sensor TEDS information
o Analog monitoring output possible during recording
o Detection of analog filter input saturation due to excessive input
1-5.
System composition
This system is composed of a WX-7000 recording unit and one or
more AU-WXEPIO expansion units.
Recording unit: WX-7000
Expansion unit: AU-WXEPIO
By adding more AU-WXEPIO expansion units, you can increase the
number of input and output channels.
We offer products with 1, 2, 4, 6 and 8 AU-WXEPIO expansion units.
WX-7016 (16 input and output channels)
