2.9. Sensors:

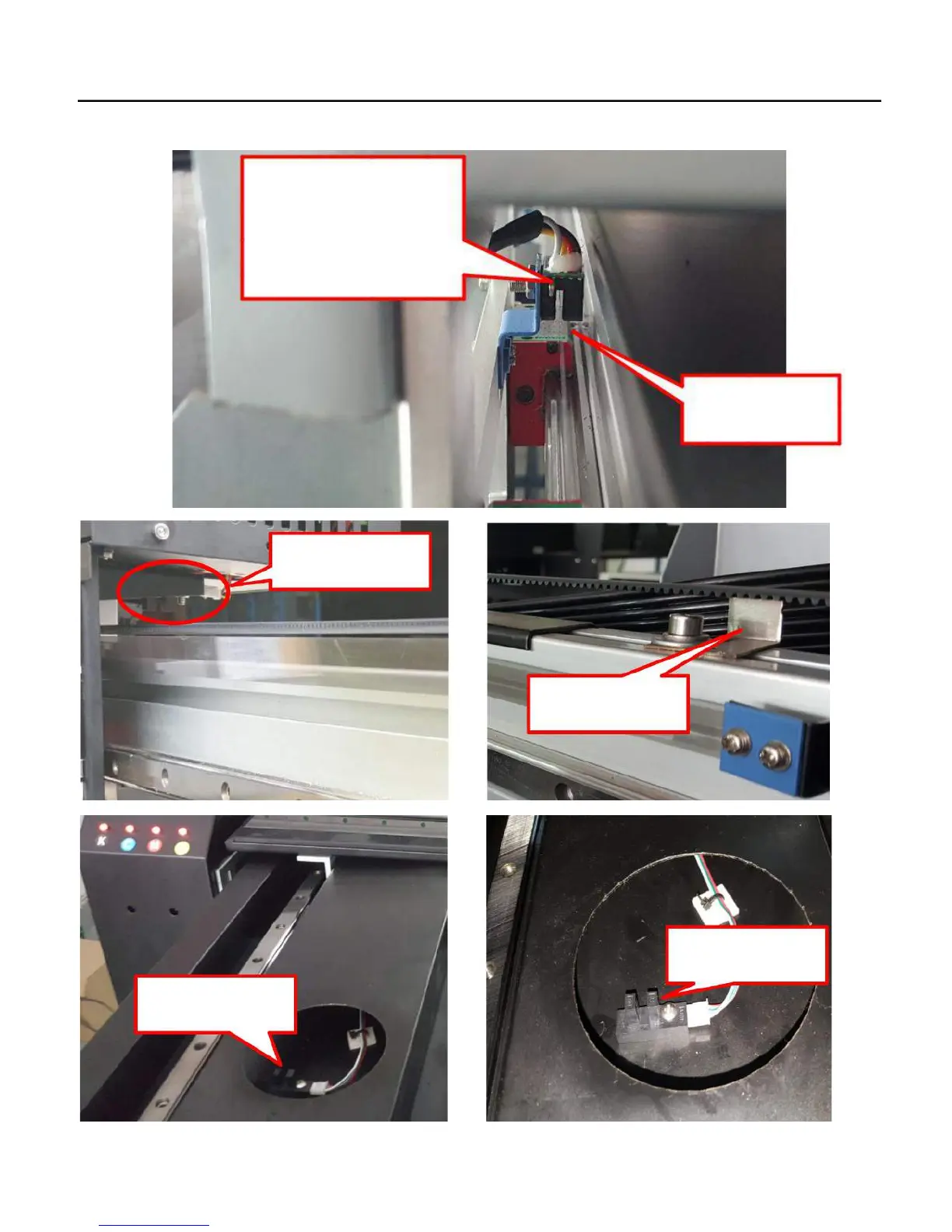

X axis encoder fim sensor ( The
encoder film must at the middle
of the senor and without
scratch the both side if the
sensor!)
Transparent encoder
film
Right motion limit
sensor
Right motion limit
sensor detector
Backward limit
sensor
Forward limit sensor
