TJ UV Printer User Manual
56.1cm

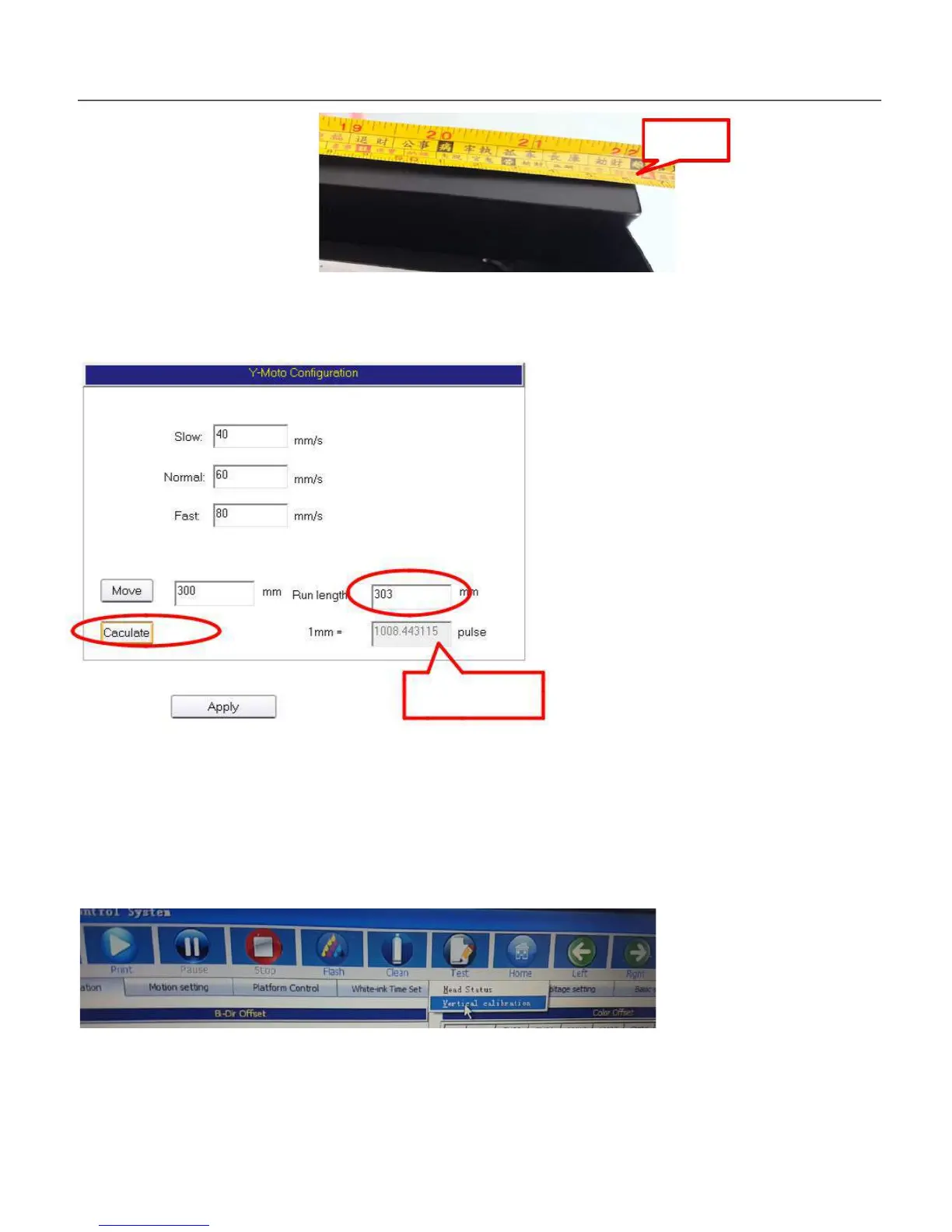

6.. So the distance that when we put 303 at the software and the flatbed moved is 864-561=303mm, then the 1mm=? pulse flatbed
motion gear ratio will changed autmatically, then we put the minus number to the software and press APPLY to save the setting.
Flatbed gear ratio
7.3. Calibrate the print head vertical calibration:
1. Go to control software/TEST/Vertical calibration/, to do a vertical calibration for the print head on a white paper, be sure the
printed out line for each color must keep straight!
47
