TJ UV Printer User Manual
2.4. Flatbed

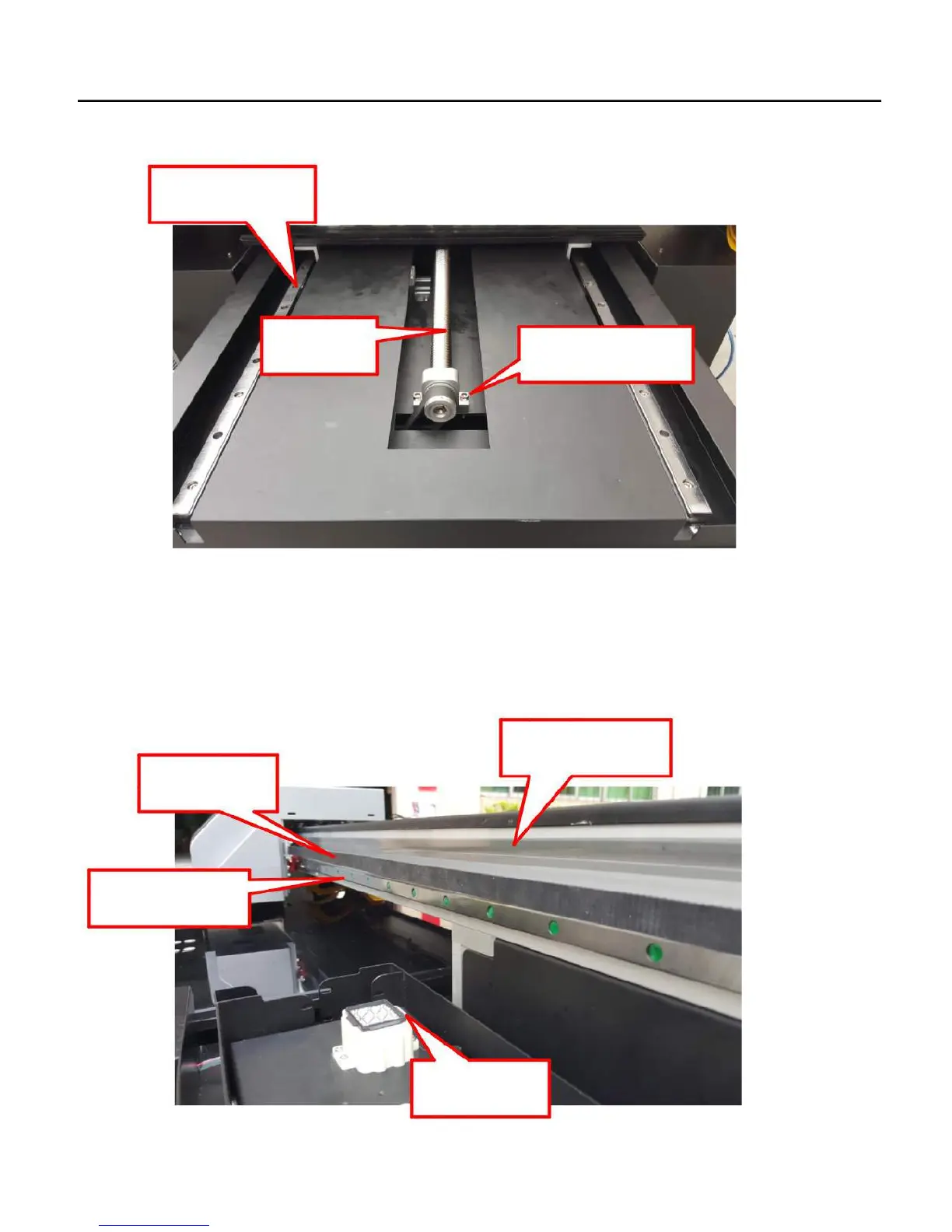

Flatbed linear rail
Flatbed ball
Flatbed motor belt
screw
TJ designed with 2 flatbed. The top flatbed and bottom flatbed for printing with different thickness media, it can print on 40cm
thickness media. So put the both flatbed if the media thickness is small than 15cm, and take out the top flatbed if media thickness
is over 35cm.
2.5. X motion system
Carriage encoder film
Carriage belt
Carriage linear rail
Cap station
