TJ UV Printer User Manual

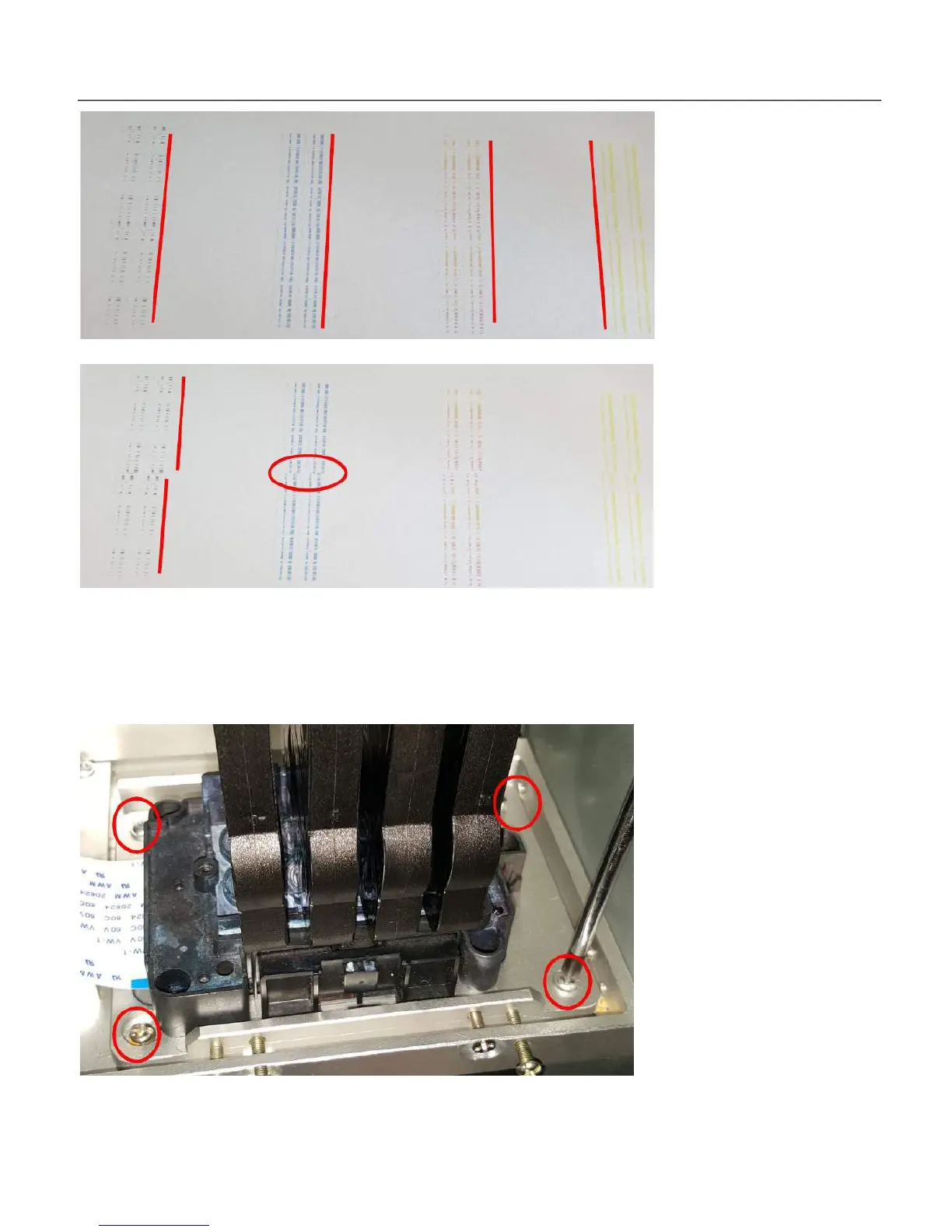

(Good vertical test printing)
(bad vertical test printing)
2..Then we need to adjust the print head by manual, the left white ink print head no need adjust, we take the left white ink print
head as standard to adjust the right color ink print head, first, must loosen the screws of the print head panel that lock the print
head, no need remove out, just loosen it is ok.
3..Then adjust the front screw as following to adjust the print head vertical:
