TJ UV Printer User Manual

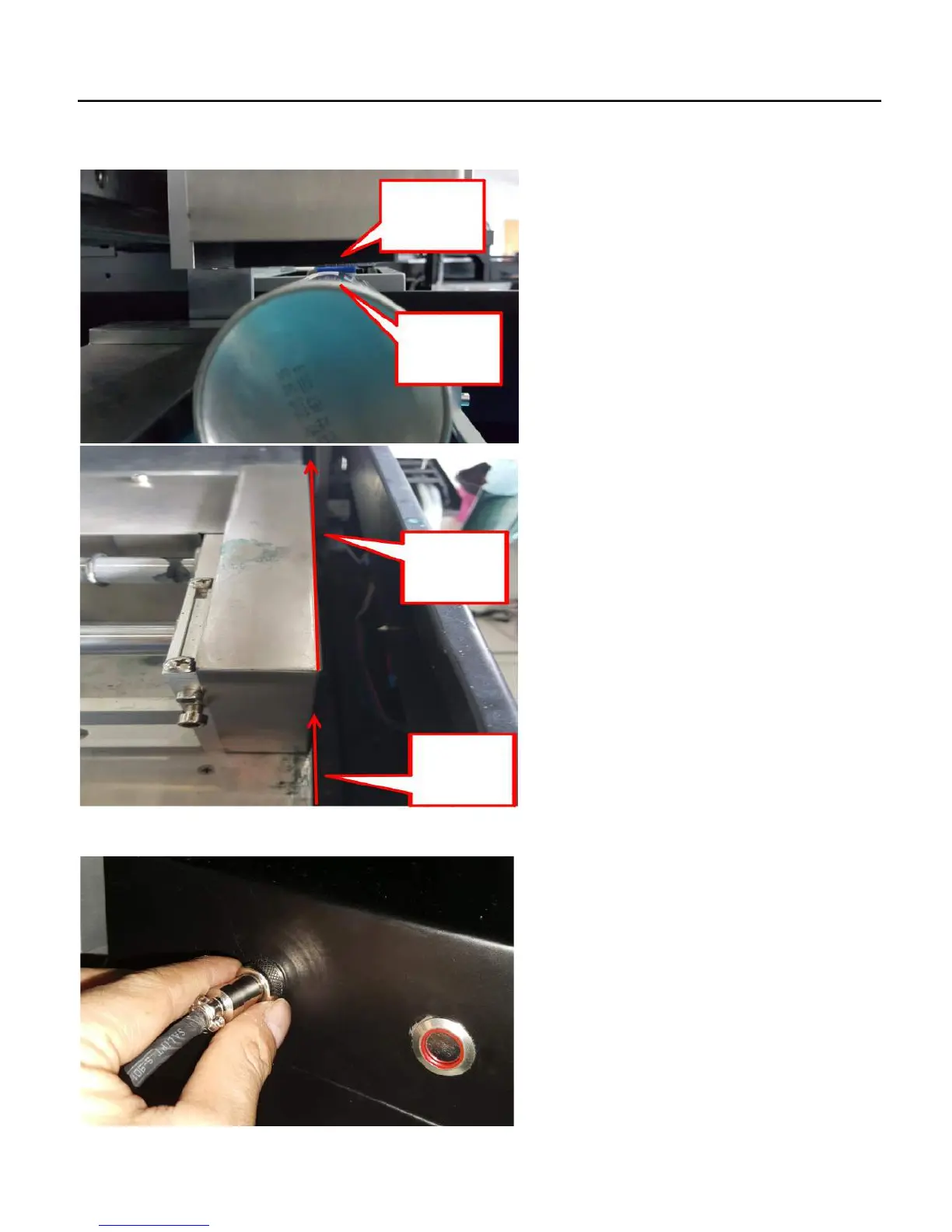

Adjust Y axis: Adjust the top point with the same line of the middle of the print head. Then adjust the Y axis keep the same edge
of the flatbed,
Adjust Z axis: Press the flatbed up button to adjust the gap between the media and print head between 3-5mm
Middle of
print head
TOP of
rotary media
Rotary
device edge
Flatbed edge
4. Connect the rotary device motor cable to the backside of the printer:
