4.3 POSITIONING THE UNIT AND INSTALLATION CLEARANCES
To avoid any problems and damage to the air conditioners during transportation, we recommend that the units
should only be removed from their packaging when they have reached their final destination.
It also essential to make sure that the floor on which the air conditioner is to be installed is capable of supporting
its weight. The weight of the unit can be found in the commercial documentation or read directly from the data plate
located inside the unit.
During installation, respect the clearances required for routine and major servicing indicated in the drawing
enclosed with the order confirmation. The figure below shows the dimensions to be taken into account during installation.
For the exact values of the dimensions indicated in the figure, refer to the drawings supplied with the order confirmation.

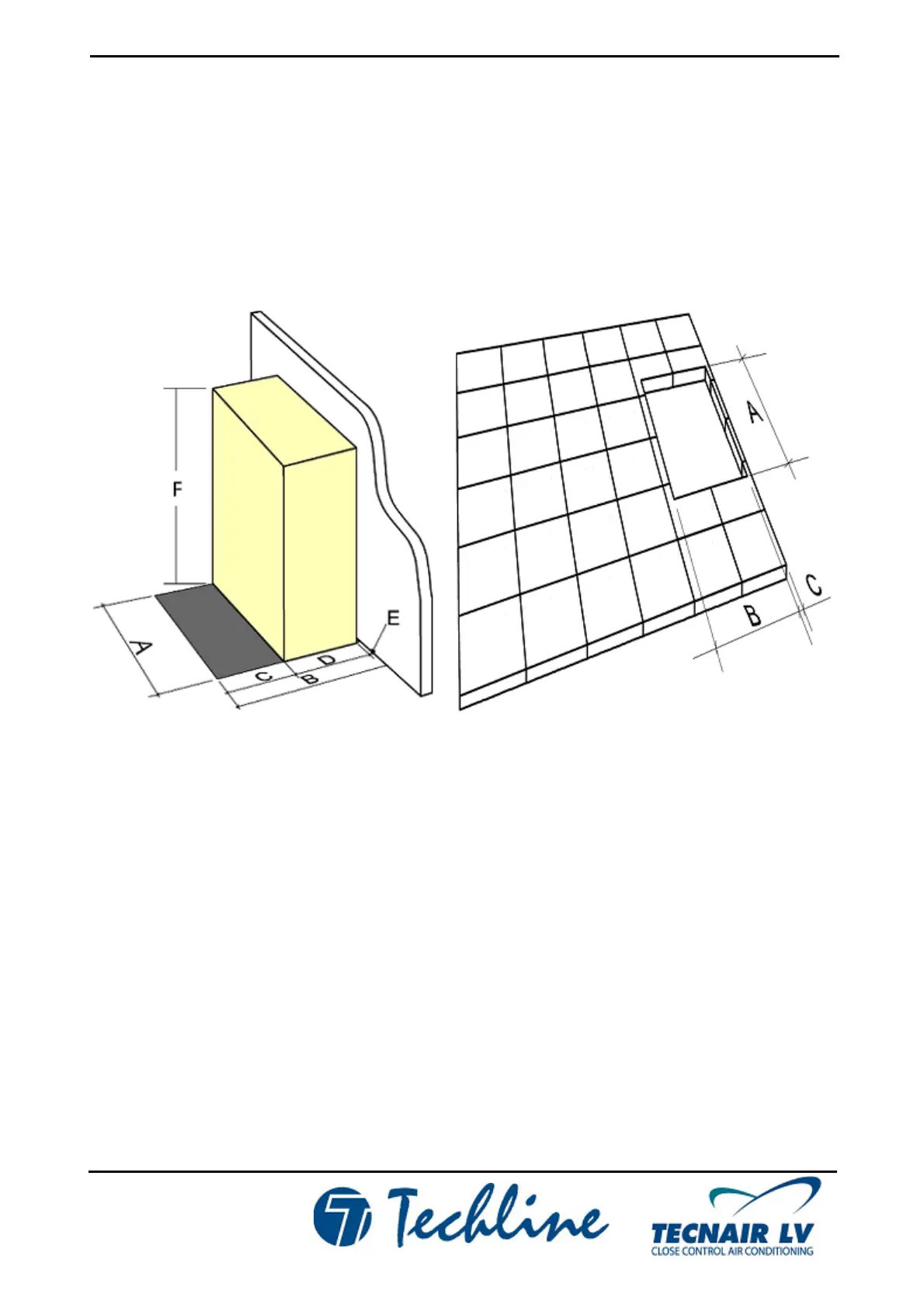

Installation dimensions Hole for installation with raised floor
In all cases it is essential leave free space of approximately 800 mm over the entire
width of the machine (C) and clearance of 50 mm at the rear of the unit (E).
