Manual code 75803707A.0708
Page 30 of 64
4.8.1 INSTALLATION OF THE REMOTE CONTROL INTERFACE
If the complete terminal or reduced version is to be panel or recess mounted, the maximum thickness of the
panel must be 6 mm; if the terminal is to recessed mounted in a wall, a masonry box with internal dimensions sufficient to
accommodate the terminal and the connection cables must be provided.

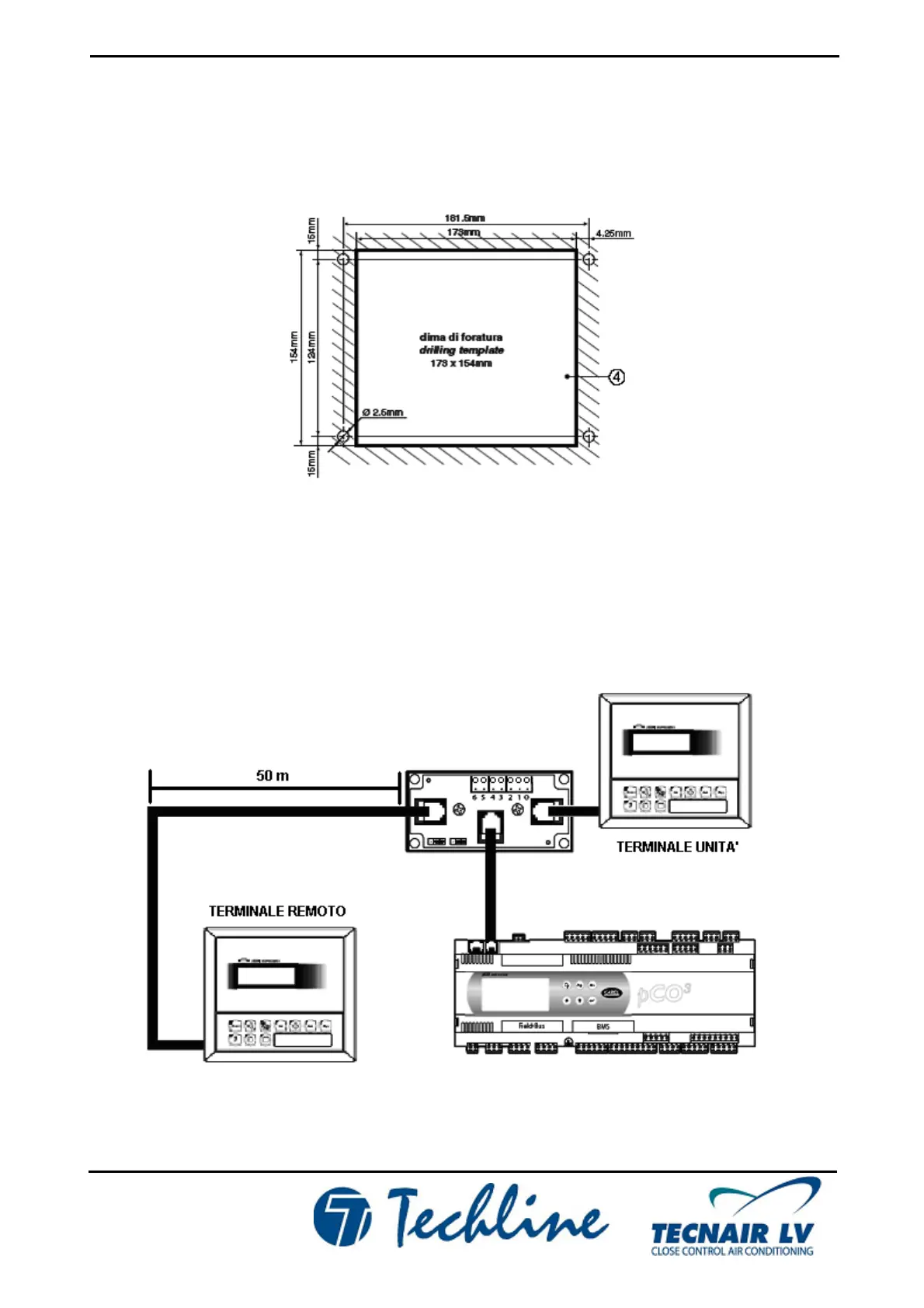

The drilling templates are illustrated below:
The user terminal is to be connected to the main board via a 6-wire telephone cable. To make the connection, it
is sufficient to plug one of the telephone connectors into one of the terminals of the TCON6 board and the other into the
terminal connector, as shown in the wiring diagram.
For safe connection, use the toroid supplied with the user terminal to avoid interference on the line could
damage the memory or components of the board itself.
If the terminal is disconnected from the board when the unit is powered on, we advise waiting at least 5 seconds
before reconnecting it.
Connection of the remote terminal
