Manual code 75803707A.0708
Page 28 of 64

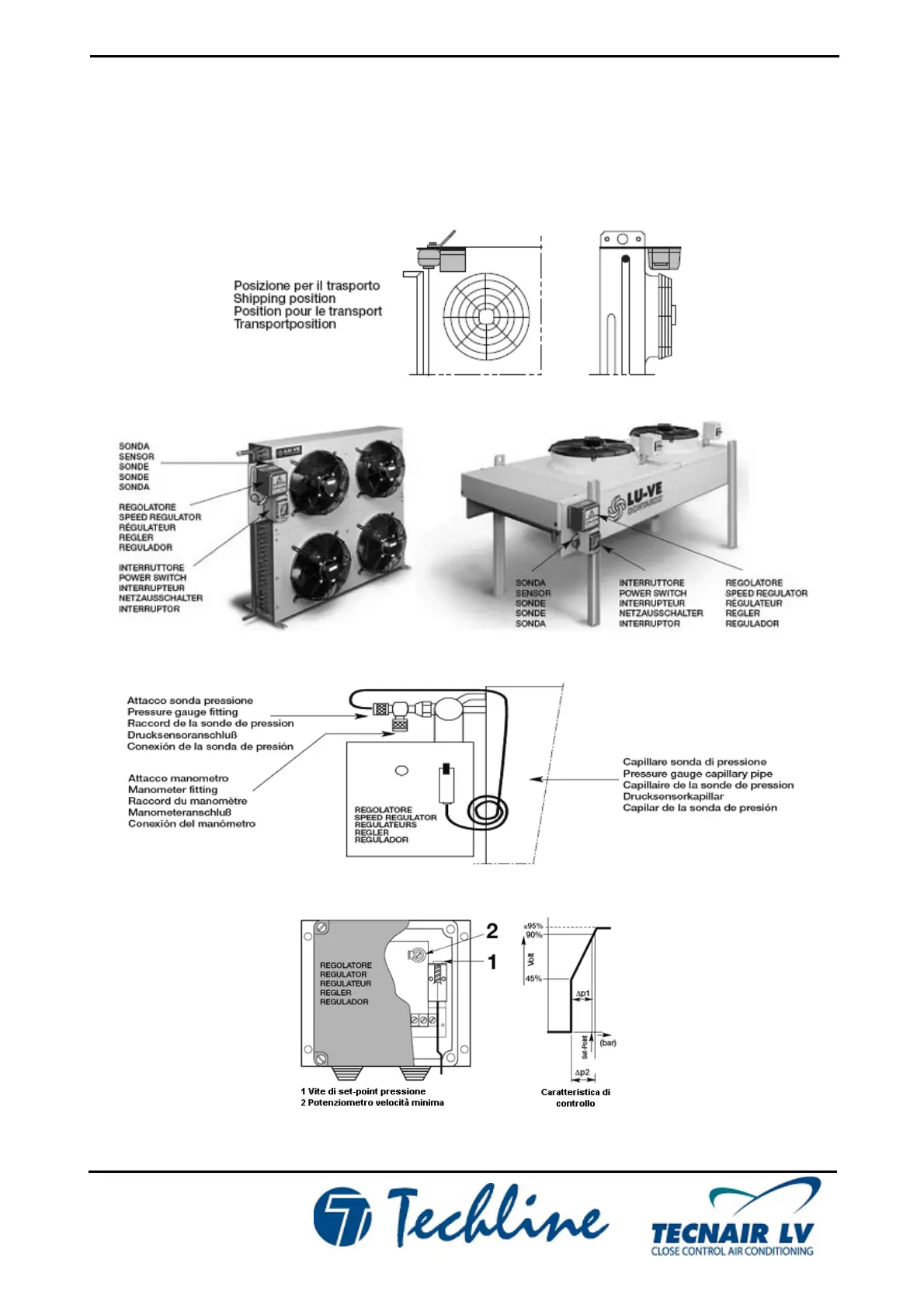

4.7.9 PRESSURE REGULATOR OF CEA CONDENSERS
On completion of the installation of the condenser refrigerant connections, return the control panel to the vertical
position to ensure a weatherproof seal, as shown in the figures below. The next tasks are to make the electrical
connections and adjust the condensation pressure by way of the relative screw so that the condensation temperature, as
read on the gauges, stabilises around 45 °C; turn screw 1 clockwise to increase rotation speed and anti-clockwise to
decrease it. Where necessary, the minimum condenser speed, which is set by default to 45%, can be reduced by
adjusting screw 2 in accordance with the diagram below.
Positioning of the speed regulator for transport
Positioning of the speed regulator
Connection of the pressure sensor
Setting the evaporation pressure
