Manual code 75803707A.0708
Page 15 of 64

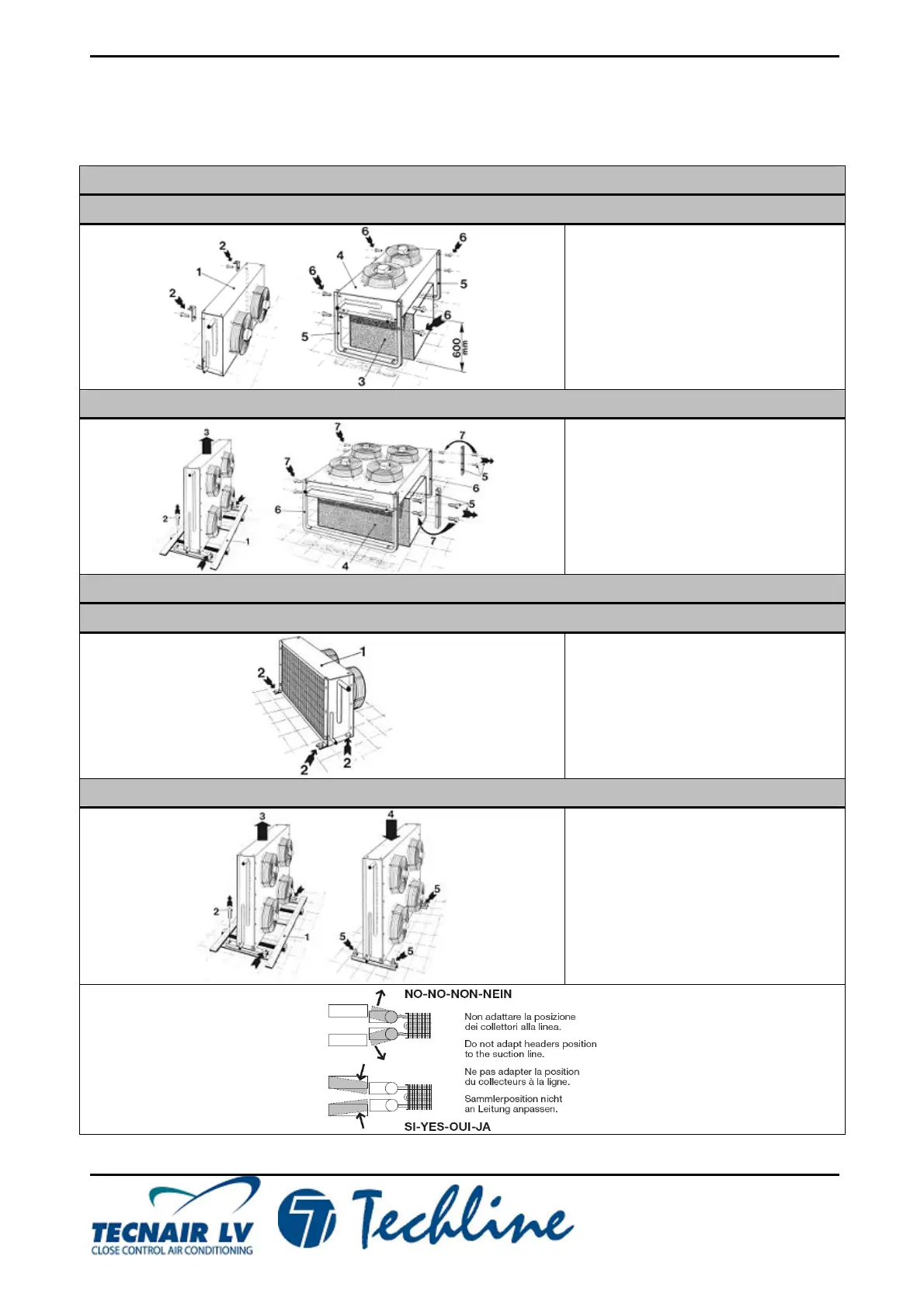

4.5 CEA AIR-COOLED CONDENSERS
CEA air-cooled condensers must be installed in accordance with the following instructions:
HORIZONTAL INSTALLATION
SINGLE ROW
1) Remove the condenser from the
packaging.
2) Fit the fixing brackets (2) to the
condenser (1).
3) Position the condenser horizontally
(4)on a support (3).
4) Fix the feet (5)using the screws
provided(6).
DOUBLE ROW
1) Remove the fixing screws (2) from the
packaging (1) and remove the
condenser (3).
2) Position the condenser horizontally
on a support(4).
3) Remove the fixing brackets by
undoing the relative screws (5).
4) Fix the feet (6) using the screws
provided (5).
VERTICAL INSTALLATION
SINGLE ROW
1) Remove the condenser from the
packaging.
2) Position the condenser (1).
3) Fix the brackets using the screws
provided (2).
DOUBLE ROW
1) Remove the fixing screws (2) from the
packaging (1) and remove the
condenser (3).
2) Position the condenser (4).
3) Fix using the screws provided (5).
