Manual code 75803707A.0708
Page 20 of 64
4.6.5 INTERNAL IMMERSED ELECTRODE HUMIDIFIER

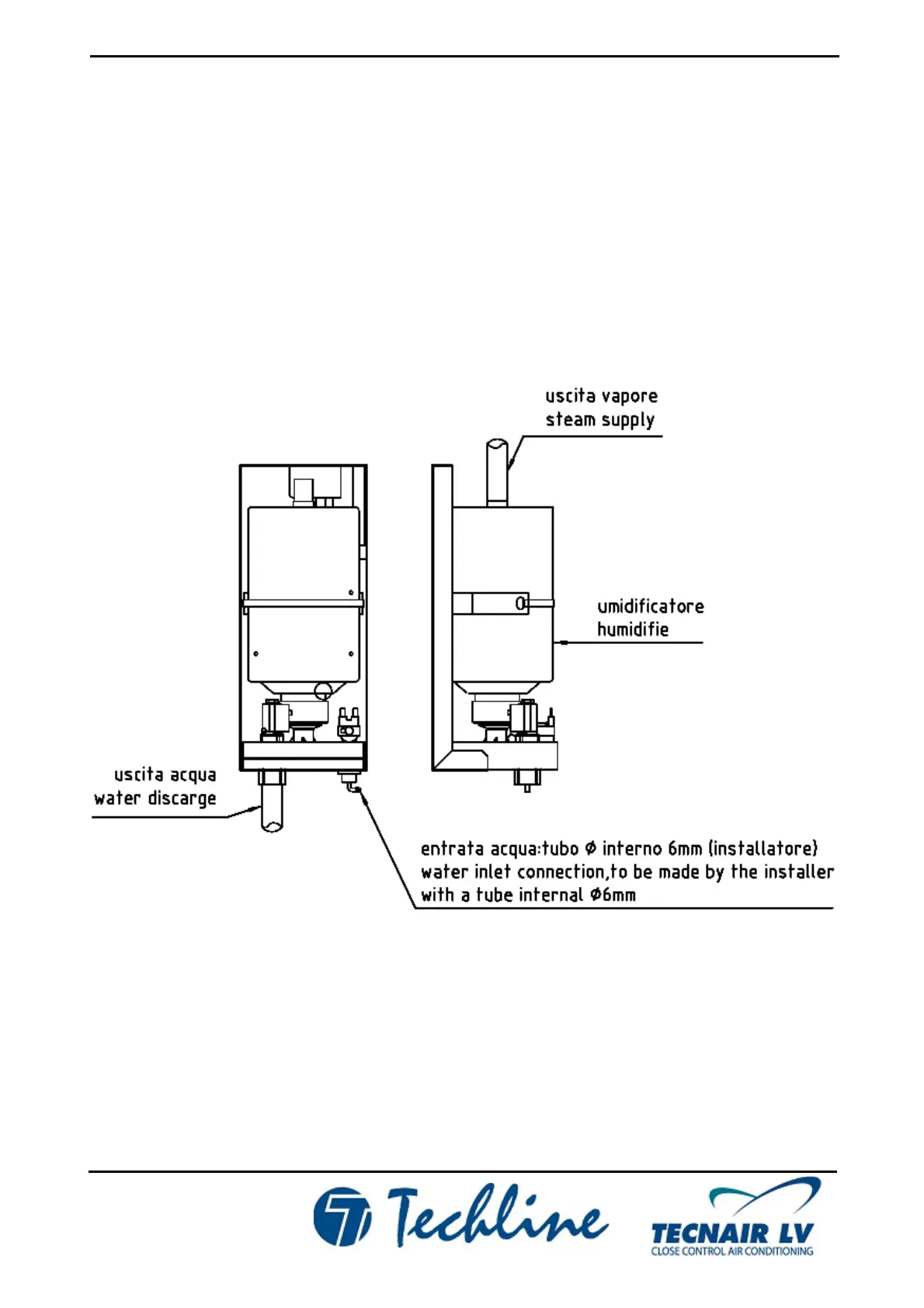

During installation of the unit it is necessary to connect a supply pipe (as shown in the figure) with the system
characteristics indicated below. The discharge pipe is supplied ready-installed by Tecnair LB.
The water connection should satisfy the following conditions:
• A shut-off cock must be installed in the water supply pipe
• There must be a mechanical filter installed on the supply line
• The water temperature and pressure must be within the permitted value range 9)
For more information of the characteristics of the humidifier water circuit, please refer to theUser manual for
the internal humidifier.
WARNING!
DRAIN WATER AT 100 °C
