4.8.2 INSTALLATION OF THE REMOTE CONTROL TERMINAL AT A DISTANCE OF OVER 50 M

If the remote control terminal has to be installed at a distance of more than 50 m (up to a maximum of 200 m),

two TCON6 boards must be used and connected together using a shielded AWG20/22 cable, as shown in the figure

below. This is necessary to avoid significant signal loss between the terminal the microprocessor control.

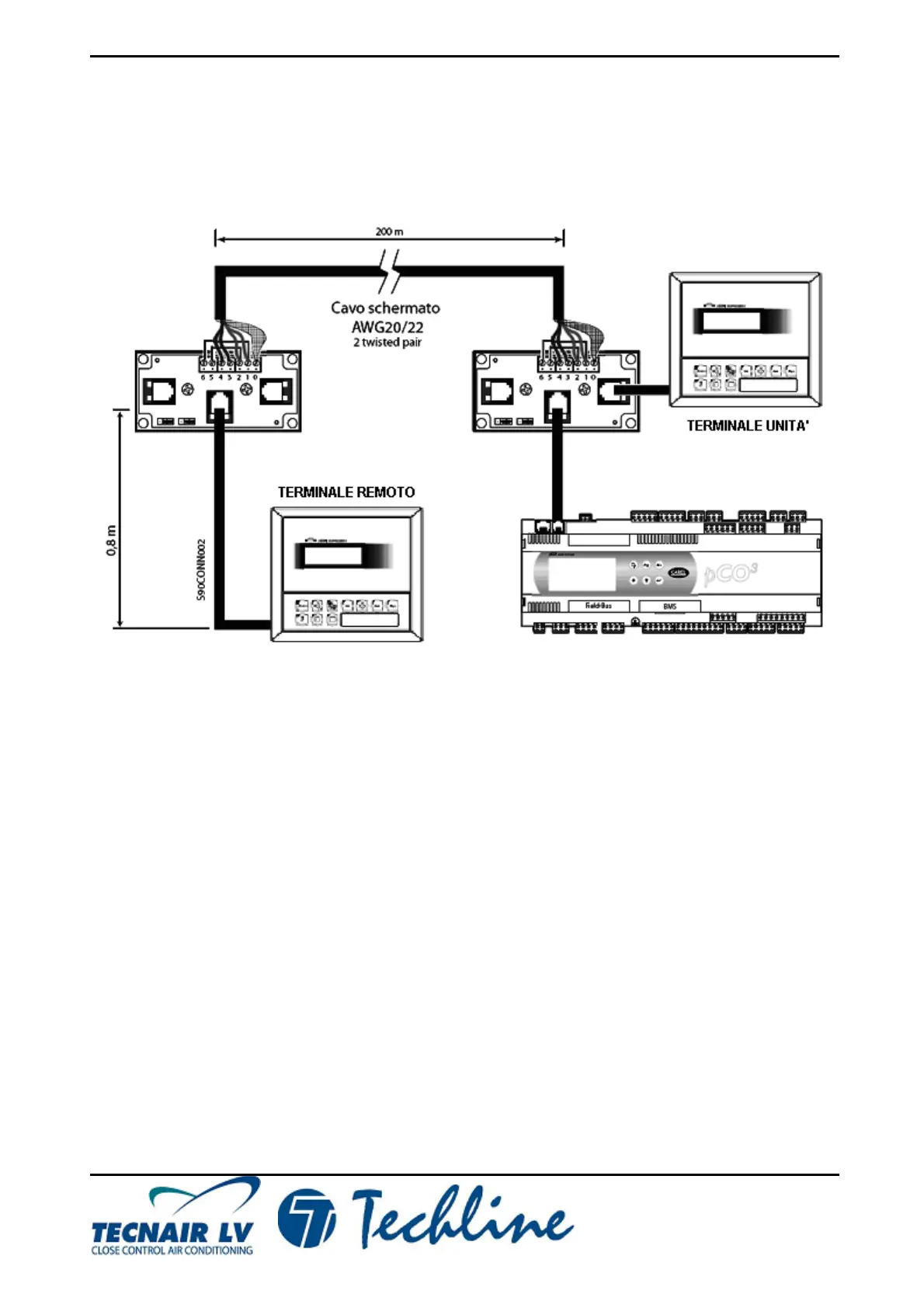

Connection of a remote terminal (at over 50m)
