31

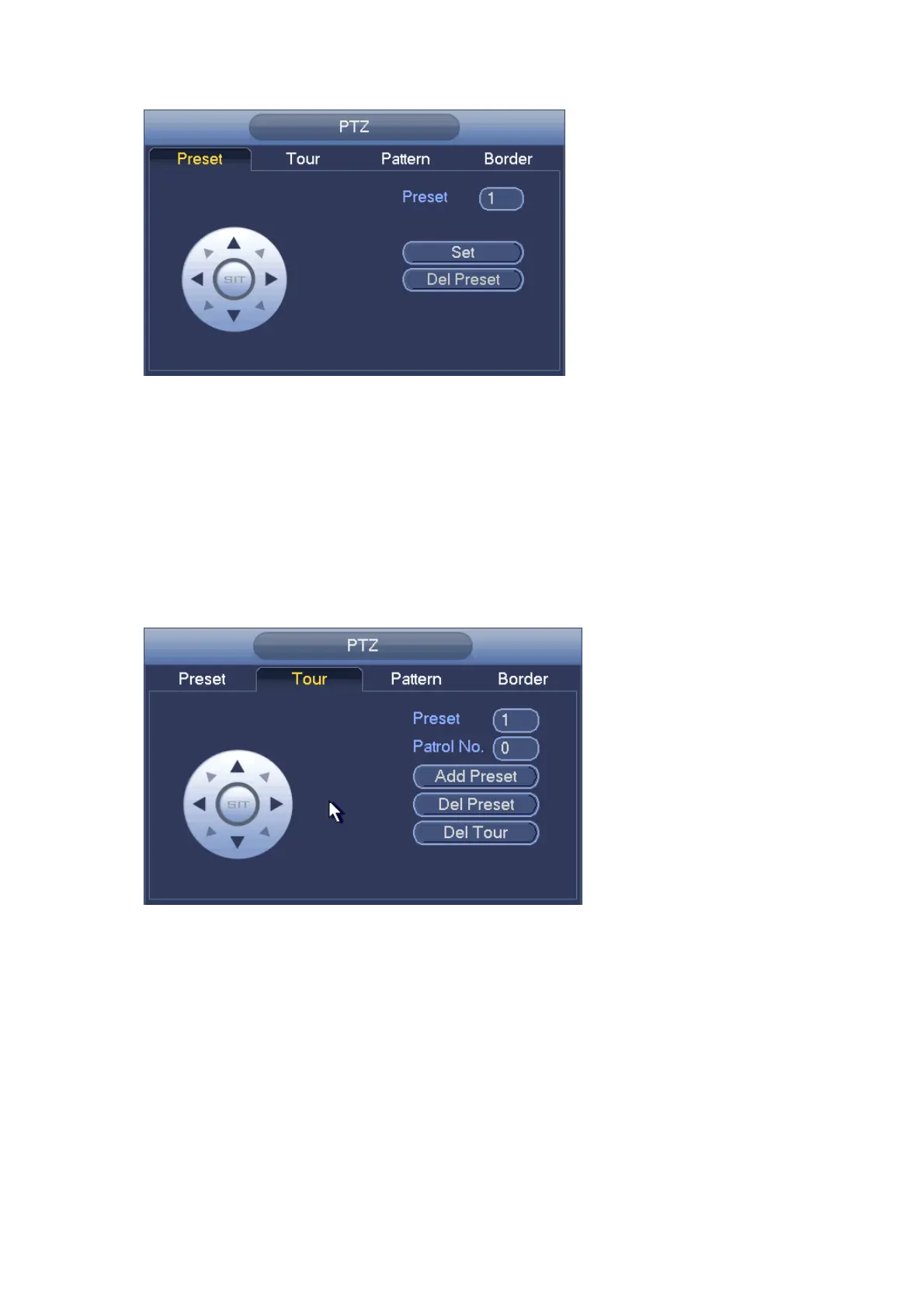

Figure4‐17
Tour Setup
In Figure 4-16, click tour button.
Input tour value and preset No. Click Add preset button to add current preset to the tour. See
Figure 4-18.
Tips
Repeat the above steps to add more presets to the tour. Click Del preset button to remove it from
the tour. Note some protocols do not support delete preset function.
Figure 4-18
Pattern Setup
In Figure 4-16, click Pattern button and input pattern number.
Click Begin button to start direction operation. Or you can go back to Figure 4-13 to operate
zoom/focus/iris/direction operation.
In Figure 4-16, click End button.
