40

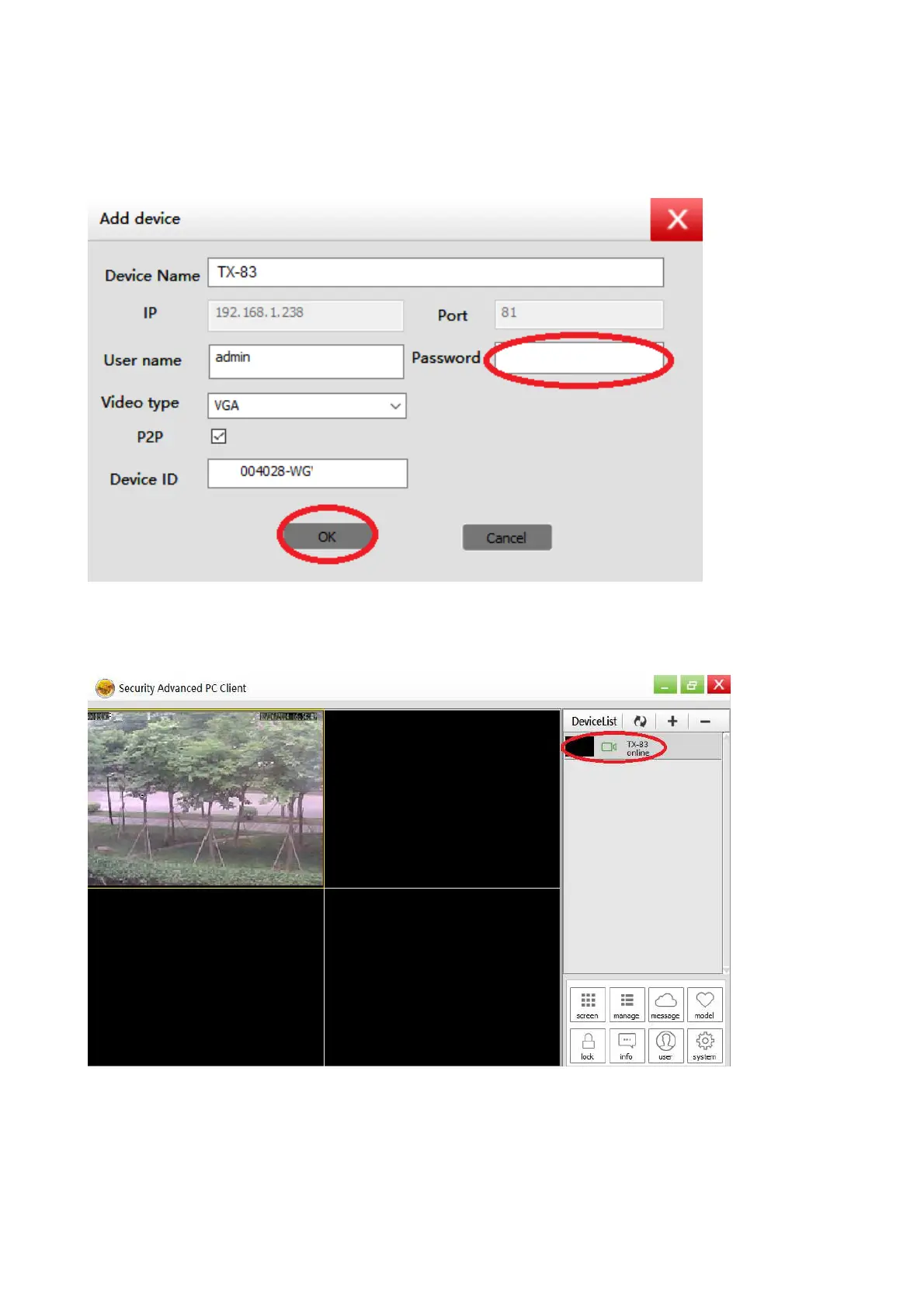

Double click on the device name you want to add. See figure 9-5. Enter password and click
“OK”, then finish the camera adding. When it is the first time adding the camera and the
password wasn’t modified, no need to enter the password, because the factory default
value of the password is empty.
Figure 9-5
In the main interface of computer software, click the camera in the list and drag it to a
channel on the left.
Figure 9-6

Technaxx TX-83 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Form factor	-
Mounting type	Wall
Product color	Black
Protection features	Dust resistant
International Protection (IP) code	IP65
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	1280 x 720 (HD 720)
Tilt angle range	70 - 80 °
Camera shutter speed	1/100000 s
Minimum illumination	1 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP, IP, HTTP, DHCP, DNS, DDNS, SMTP, NTP
Detection distance	10 m
Focus adjustment	1.2
Focal length range	0 - 3.6 mm
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Audio formats supported	G.711
Signal-to-Noise Ratio (SNR)	40 dB
Ethernet LAN (RJ-45) ports	1
DC output current	2 A
DC output voltage	12
Power source type	DC
Power consumption (max)	16 W
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Width	150 mm
Height	200 mm
Weight	1200 g
